Wood chip conveying system 3.5 m³ - Efficient wood chip bunker & dosing
€6,710.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Wood chip conveying system 3.5 m³ - Efficient wood chip bunker & dosing
Wood chip conveyor system / wood chip bunker - 3.5 m³

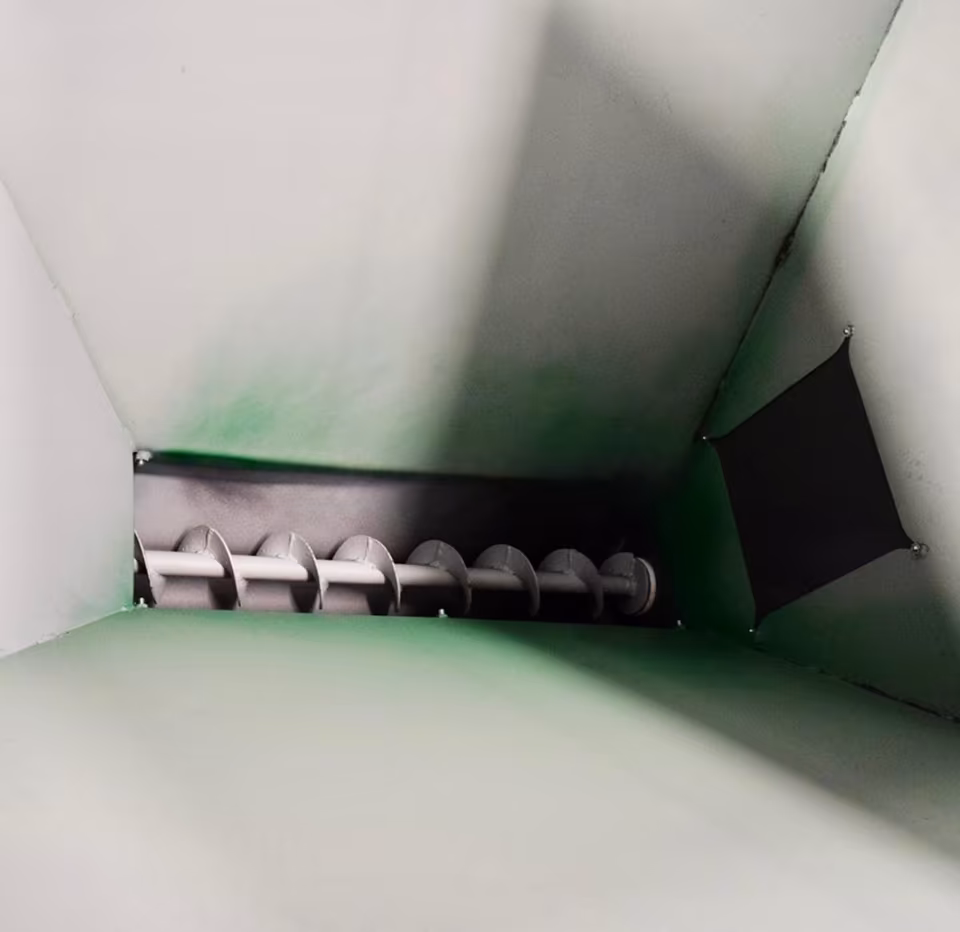

TheWood chip conveyor system with 3.5 m³ bunker is the ideal solution for efficientConveying, storage and dosing of wood chips. It consists of a sturdy container with a capacity of 3.5 m³, a robust auger conveyor in the pipe system and a reliable electric motor with gearbox. The material is filled into the storage container and transported in a continuous spiral movement transported in a continuous spiral movementUniform and controlled material feed is made possible.
Your advantages at a glance
- Automation: optimises the timber supply process and saves time.
- Increased efficiency: Continuous material feed for smooth processing.
- Large storage capacity: 3.5 m³ bunker - less frequent refilling.
- Precise dosing: Controlled supply of wood chips for optimum machine performance.
- Flexible: Feed speed can be adapted to different types of material.
- Durable: Robust design for continuous use in industry and agriculture.
Typical areas of application
- Storage and transport of wood chips
- Feeding woodchippings into heating systems
- Feeding of processing machines in the wood industry and biomass plants
- Automated material supply in agriculture and industry

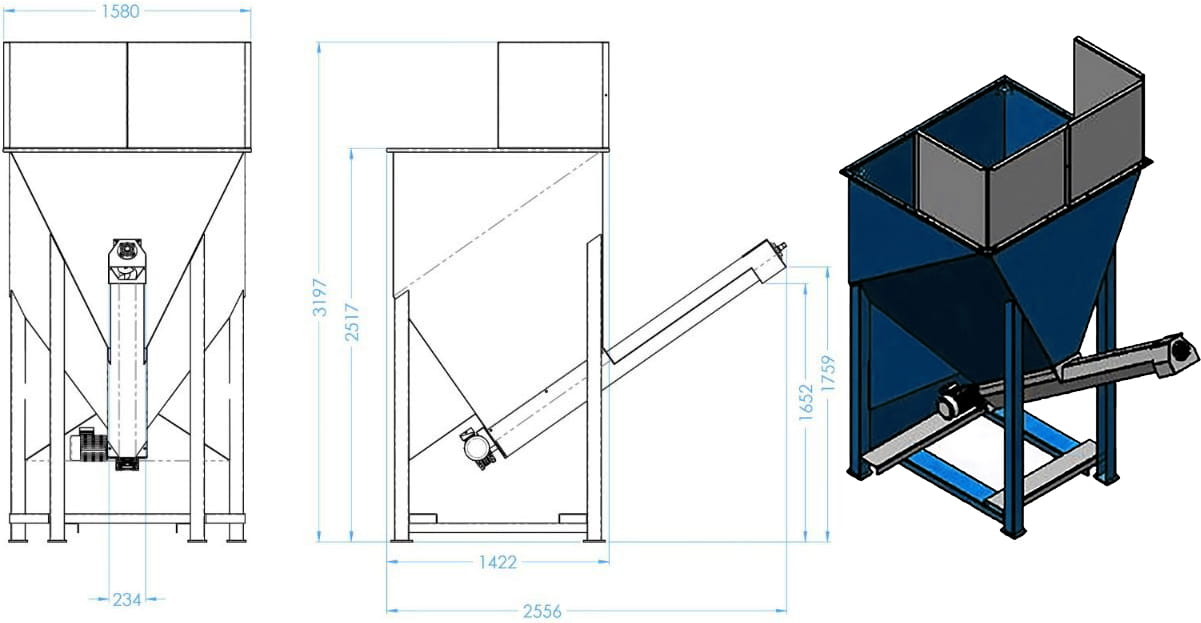

Technical data (wood chip conveyor system - 3.5 m³)
| Product type | Wood chip conveyor system / wood chip bunker |
| Capacity | 3,5 m³ |
| Productivity | up to4 m³/h |
| Engine power | 1.5 kW |
| Speed | 56-84 rpm (without inverter) |
| Conveyor system | Snail in a pipe |
| Power supply | 380-400 V / 50-60 Hz |
Technical data according to manufacturer. The actual performance depends on the material properties and operating conditions.
Scope of delivery
- Wood chip conveyor system / wood chip bunker - 3.5 m³
- Screw conveyor in the pipe system
- Electric motor with gearbox
- Operating & safety instructions
Notes & Safety
- Only suitable for dry wood chips and comparable biomass.
- Check motor and auger before commissioning.
- Regular maintenance and cleaning extend the service life.
- Wear protective clothing (gloves, ear protection, safety goggles) when working.
Why the wood chip conveyor system with 3.5 m³ bunker? High storage capacity, precise dosing and reliable automation make them the optimal solution for an efficientWood and biomass processing.
