Water PTO pump ML 20 incl. accessories

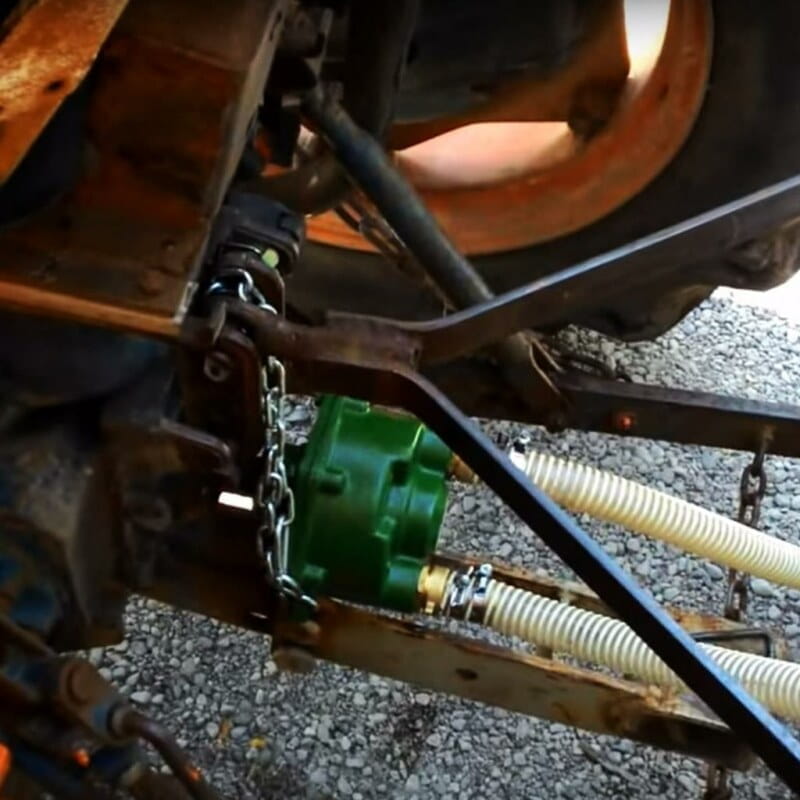

PTO pump "ML 20 Kit" water pump from Ferroni in Italy. The "smaller" of the Ferroni pumps can deliver a pumping capacity of 70 or 180 l/min, depending on the mode. The ML20 pump with PTO drive is made of robust 10.5 kg cast iron and can be easily installed on the shaft connection (1 3/8") of the tractor or tractor. Connection to the cultivator is also possible with the ML20 with a coupling flange. The Ferroni ML20 pump with shaft connection has a safety chain to prevent it from slipping off the shaft. Its maximum pressure is 25 bar. You can use the PTO pump for high-pressure cleaning and washing (also with soaps), transferring any non-staining liquid, watering and, with rods with 20 or more nozzles, fertilising or applying herbicides. The PTO pump has an output of 4 KW/5.5 HP and rotates at a maximum of 700 rpm. The connections on the suction side are 1" IG / 30 mm and on the pressure side they are 3/4" IG / 19 mm. The maximum suction height of the Ferroni ML20 PTO pump is 6 metres. The Ferroni "ML 20 Kit" water pump includes clamps, catch chain, 3m suction hose, 7m pressure hose, plastic suction strainer and brass spray nozzle with hose nozzle.

Application - PTO pump "ML 20 Kit" :

• lighter PTO pump / cast iron pump with shaft connection for connection to tractor or tractor unit
• for watering arable land and for crop protection sprayers, herbicides & fertiliser sprayers
• for cleaning agricultural machinery and more with high pressure (with and without cleaning agents)
• for pumping and filling non-staining liquids

Features - PTO pump "ML 20 Kit" :

• incl. suction strainer, hoses and connection clamps
• maximum pressure 25 bar (high pressure)
• pumps 70l/min at high pressure
• pumps 180l/min at normal pressure
• Robust 10.5kg cast iron pump with 1 3/8" shaft connection
• 1 inch suction hose holder
• 3/4 inch pressure hose connection

Experience with PTO pump "ML 20 Kit" :

Most PTO pumps break down due to incorrect storage. They rust internally and refuse to work the next time they are used. Avoid rust formation after emptying the ML20 PTO pump simply by filling the pump with simple salad oil after emptying. Caution: With ML 20 and MT 300 pumps, avoid closing the escaping liquid jet during normal pump operation (do not use a tap or similar). The pressure increase inside the pump would cause damage to the pump and pose a great danger to the user. Simply switch off the pump to stop the jet. The PTO water pump from Ferroni is also identical in construction to the same type of Westfalia pump and Göbel pump.
