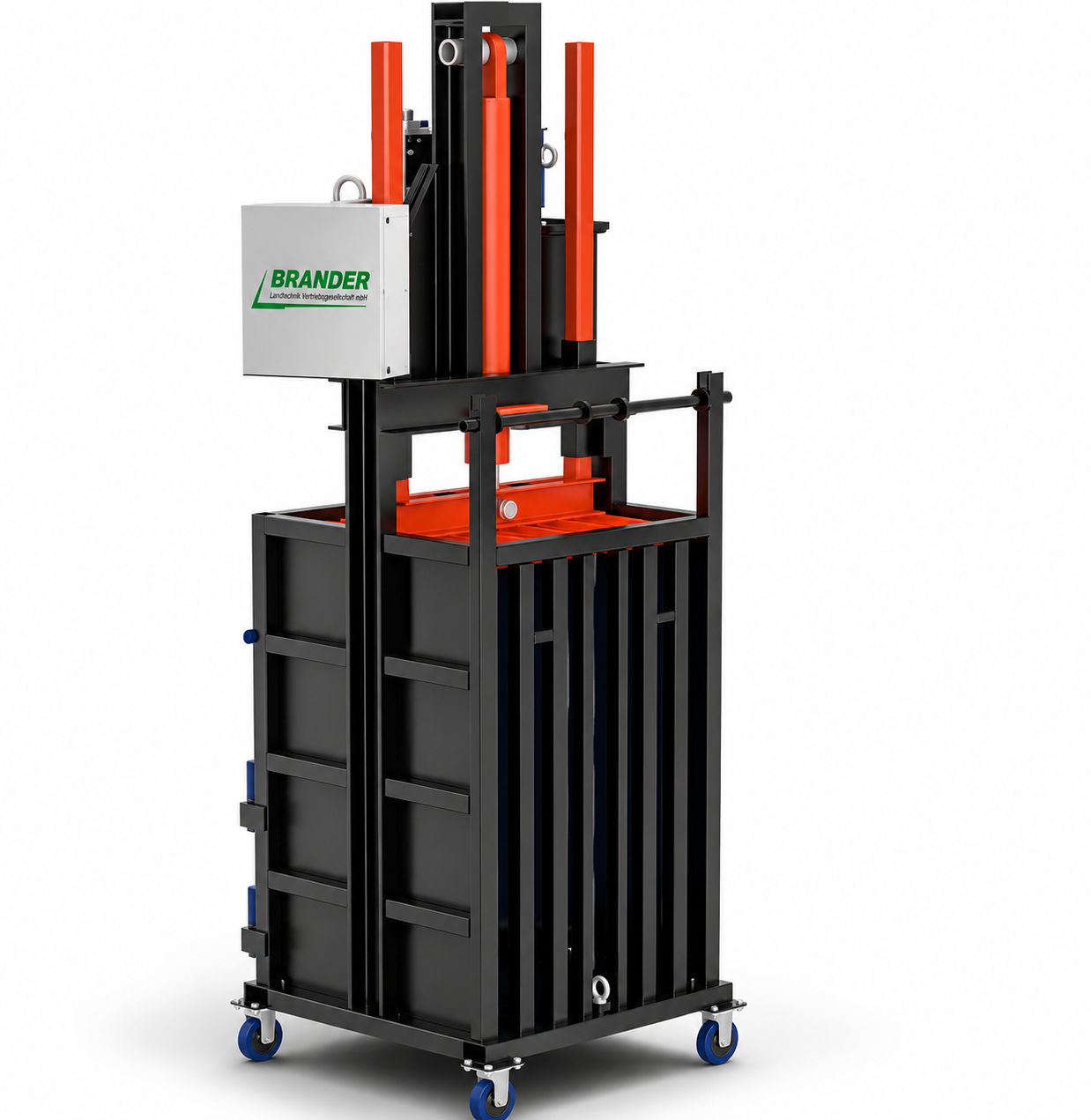

Waste paper press / cardboard press / film press 5 tons - 400V / 1.1kW
€3,990.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Waste paper press / cardboard press / film press 5 tons - 400V / 1.1kW
Waste paper baler 5 t - compact baler for paper, cardboard & film (400 V / 1.1 kW)
TheseBaler compacts paper, cardboard, film and lightweight plastics into manageable bales - for aVolume reduction of up to 10× and significantly lower disposal and storage costs. With5 t pressing force,400 V drive andup to 140 kg bale weight, it is ideal for retail, storage, workshops, production and municipal operations.
Your advantages at a glance
- Efficient & space-saving: short cycle time (full cycle approx. 43 s) and compact footprint.
- Universally applicable: forPaper, cardboard, plastic bottles/PET and films.
- Clean bale logistics: Bale size600 × 600 × 500 mmBale weightup to 140 kg,2 binding points.
- Easy handling: Integrated ejection plate throws the finished bale safely into the transport aid.
- Quiet operation: Sound level up to79 dB(A) - comfortable working in indoor areas.
Application & material examples
- Paper & cardboard: Shipping packaging, intermediate layers, offcuts
- Plastic: Stretch/shrink film, plastic bottles (PET)
- Recycling centres & collection points: compact pre-sorted recyclables into transportable bales
Technical data
| Max. Compressive force | 5 000 kg (5 t) |
| Full cycle time | approx. 43 s (working stroke 25 s / return stroke 18 s) |
| Cylinder projection / stroke | 630 mm |
| Loading opening (W × H) | 600 × 450 mm |
| Bale size (L × W × H) | 600 × 600 × 500 mm |
| Bale weight | up to 140 kg (depending on material) |
| Binding | 2 Binding stations |
| Ejection | Integrated ejection plate |
| Hydraulics - System pressure | up to 170 MPa |
| Hydraulic volume / tank | 50 l / Container25 l |
| Pressing pressure on material | ≈ 1.6 kg/cm² |
| Electrical connection | 400 V,1.1 kW (Note: 1.5 kW also possible depending on version) |
| Noise level | up to 79 dB(A) |
| Machine weight | approx. 354 kg |
How to choose the right press
- Chamber volume & bale size: Is 600 × 600 × 500 mm enough for your logistics?
- Material density: What bale weight (up to 140 kg) do you need for collection/transport?
- Throughput: Coordinate cycle time and amount of material (paper/cardboard/PET).
- Connected load & infrastructure: 400 V available; if necessary, select variant with higher kW output.
Scope of delivery
- Waste paper/cardboard/film press5 t (400 V / 1.1 kW)
- Operating & safety instructions
Notes & Safety
- Only press suitable, dry materials; no hazardous substances or metals.
- Observe safety instructions; only trigger bale ejection with a clear danger zone.
- We recommend regular maintenance of the hydraulics and checking the binding agents in accordance with the instructions.
Why this 5 tonne press? Compact, fast and versatile: Up to 10-fold volume reduction, standardised bales and simple ejection - the efficient solution for clean recyclables logistics.
