Thaler 3448 T-5A telescopic wheel loader - 48 HP Yanmar, 2500 kg lifting capacity, innovation & power
Description
Thaler 3448 T-5A telescopic wheel loader - 48 HP Yanmar, 2500 kg lifting capacity, innovation & power
Thaler 3448 T-5A telescopic wheel loader - Outstanding lifting height, manoeuvrability & innovation

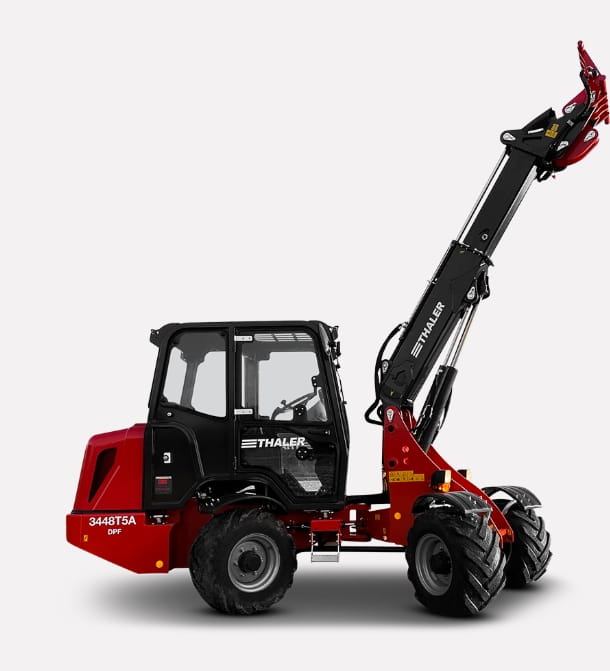

TheThaler 3448 T-5A sets new standards in the compact telescopic wheel loader class. With its 48 hp Yanmar engine, impressive lifting height of up to 3,897 mm and innovative steering concept, it combines power, agility and maximum efficiency in one machine.
Unique steering technology - honoured at three international trade fairs
The combination ofAll-wheel steering and centre-pivot steering provides manoeuvrability that far surpasses conventional wheel loaders. The 3448 series has won several innovation awards:
- GaLaBau - Autumn 2018
- Equitana - Spring 2019
- Sommet d'Or - Autumn 2019
Powerful performance thanks to Yanmar engine
The reliable4-cylinder Yanmar diesel with 48 hp ensures a quiet, powerful drive. Water cooler and oil cooler ensure optimum temperatures for maximum service life.
Top-class productivity
- Lifting capacity 2,500 kg - Ideal performance for yards, construction sites and agriculture
- Tipping load up to 2,200 kg - High level of safety when stacking and loading
- Lifting heights up to 3,897 mm - Optimum range and loading height
- Hydraulic output 51 l/min - Ideal for demanding attachments
Comfort & equipment
With a comfortable cab, ergonomic seat, adjustable steering column and optimised visibility, the 3448 T-5A is designed for long working days.
- Hydraulic quick coupling
- Thaler inch pedal for precise crawling
- Swivelling rear axle for maximum stability
- 3 LED work lights
- Low-maintenance wet multi-disc brake
Technical data
| Engine | Yanmar 4-cylinder |
|---|---|
| Performance | 48 hp / 35.4 kW |
| Lifting capacity | 2500 kg |
| Tipping load (fork, 50 cm) | 1000-2000 kg |
| Tipping load (bucket) | 1200-2200 kg |
| Hydraulic power | 51 l/min at 200 bar |
| Lifting height | 3142 / 3897 mm |
| Gearbox | Hydrostat / 365 bar |
| Width | 1660 mm |
| Height | 2270 mm |
| Operating weight | 3440 kg |
| speed | 18 km/h |
| Tyres | 400/50-15 |
| Diesel tank | 50 L |
| Hydraulic oil tank | 40 L |
| Battery | 12 V - 75 Ah |
Standard features
- Ergonomic, adjustable seat
- Adjustable multi-purpose steering
- Hydraulic quick coupling
- Swivelling rear axle
- Robust Thaler centre joint
- Optimised parallel movement
- 3 LED worklights
- Maintenance-free wet multi-disc brake
TheThaler 3448 T-5A is a powerful, manoeuvrable and innovative telescopic wheel loader that sets new standards in its class.
