Telescopic wheel loader with cab & Kubota engine – 1200 kg rated load | Professional skid steer loader
€21,500.00
Description
Telescopic wheel loader with cab & Kubota engine – 1200 kg rated load | Professional skid steer loader

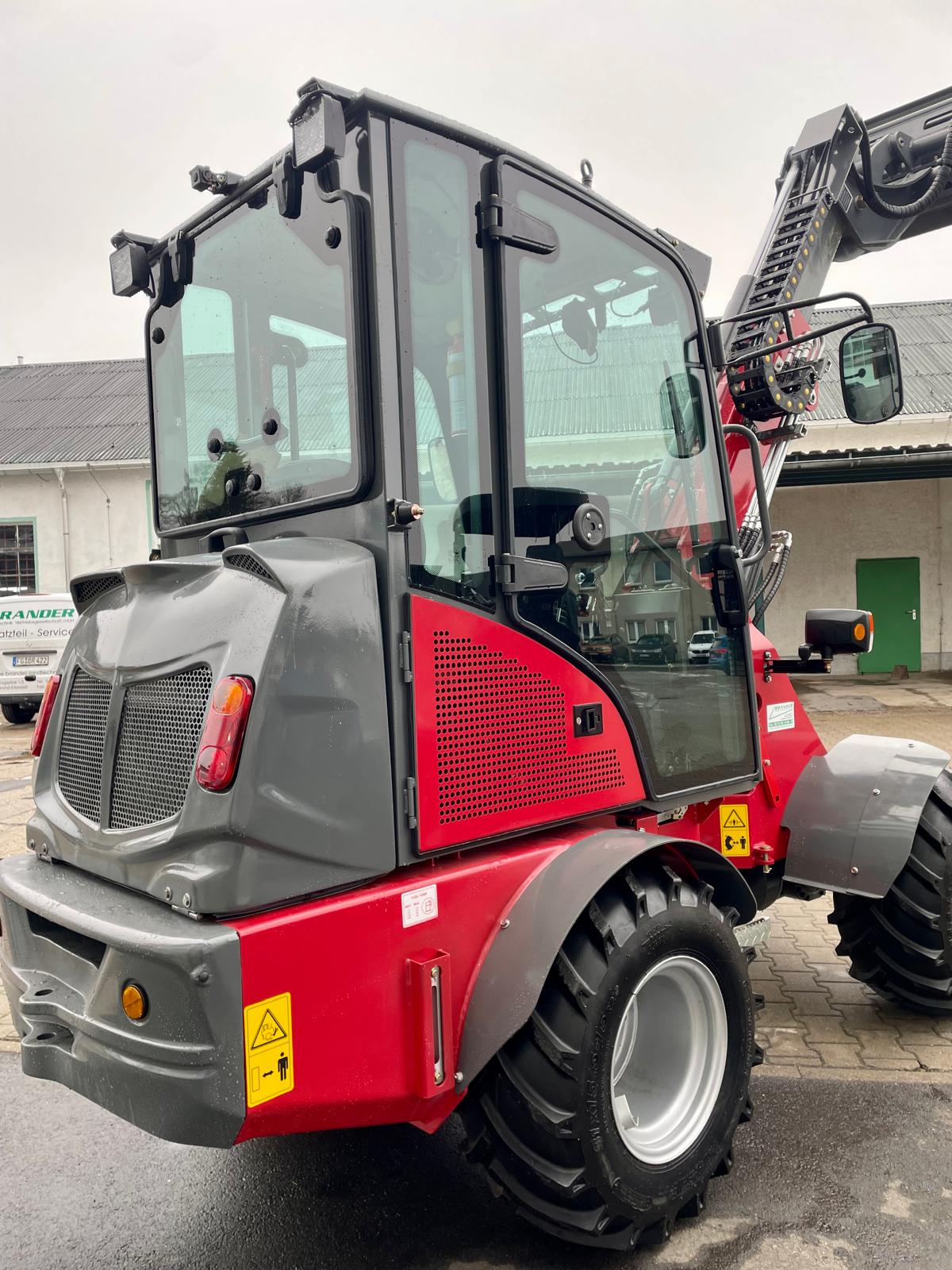

Telescopic wheel loader / yard loader with cab - Original Kubota engine & Euro mount
This high-qualityTelescopic wheel loader with cab impresses with the highest manufacturing quality, powerful performance and convenient operation. Equipped with aKubota V1505 4-cylinder diesel engine the loader guarantees reliability, power and a long service life - ideal for construction companies, agriculture, farms and industry.
Premium drive & hydraulics
The efficient Kubota engine delivers a powerful 18.2 kW, combined with aHydrostatic drive from Italy (Bondioli & Pavesi) for precise, smooth driving. The 3rd and 4th control circuits enable versatile use of a wide range of attachments. The integratedHydraulic quick-change Euro mount ensures quick device changes.
Robust construction for tough applications

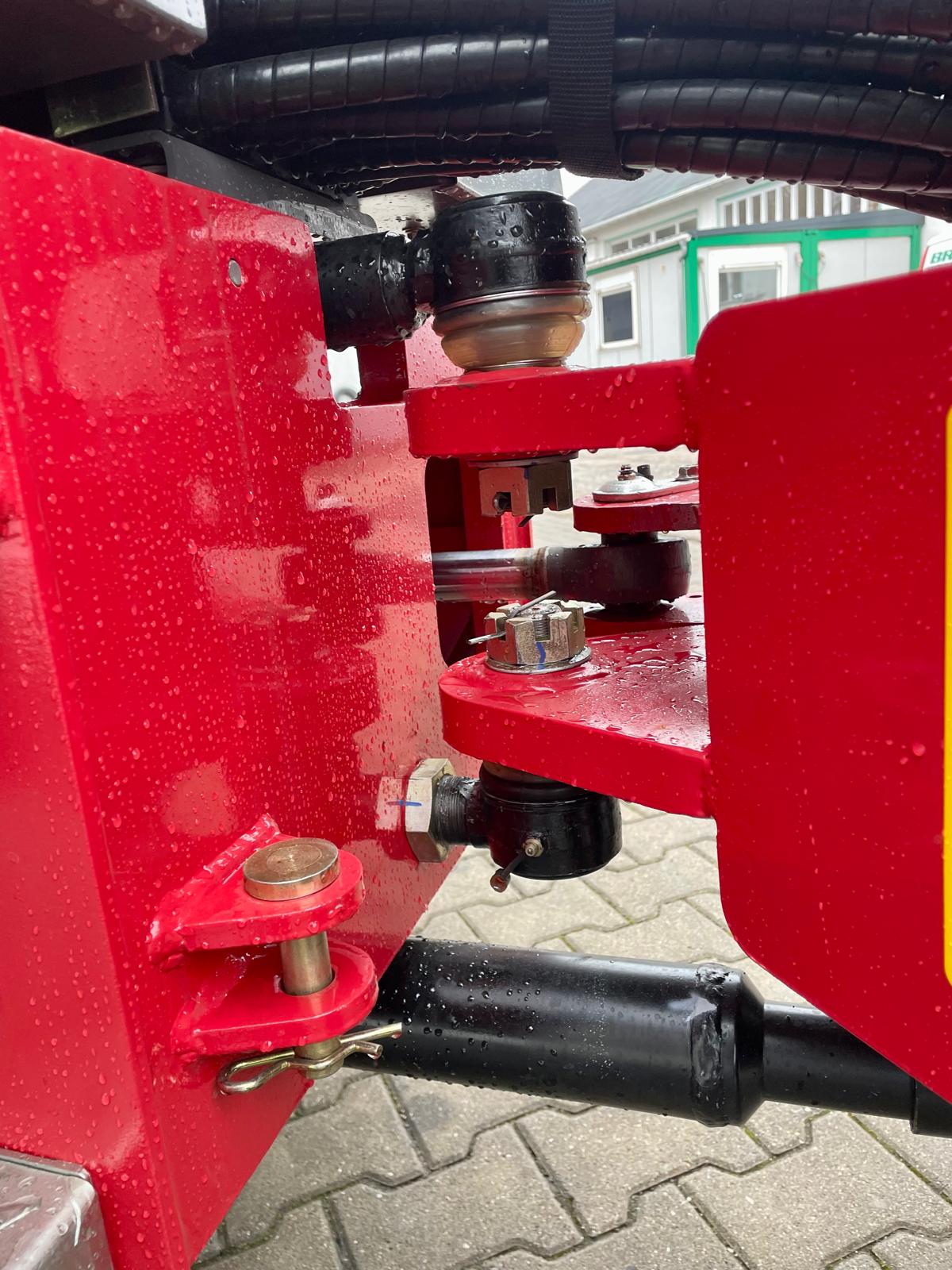

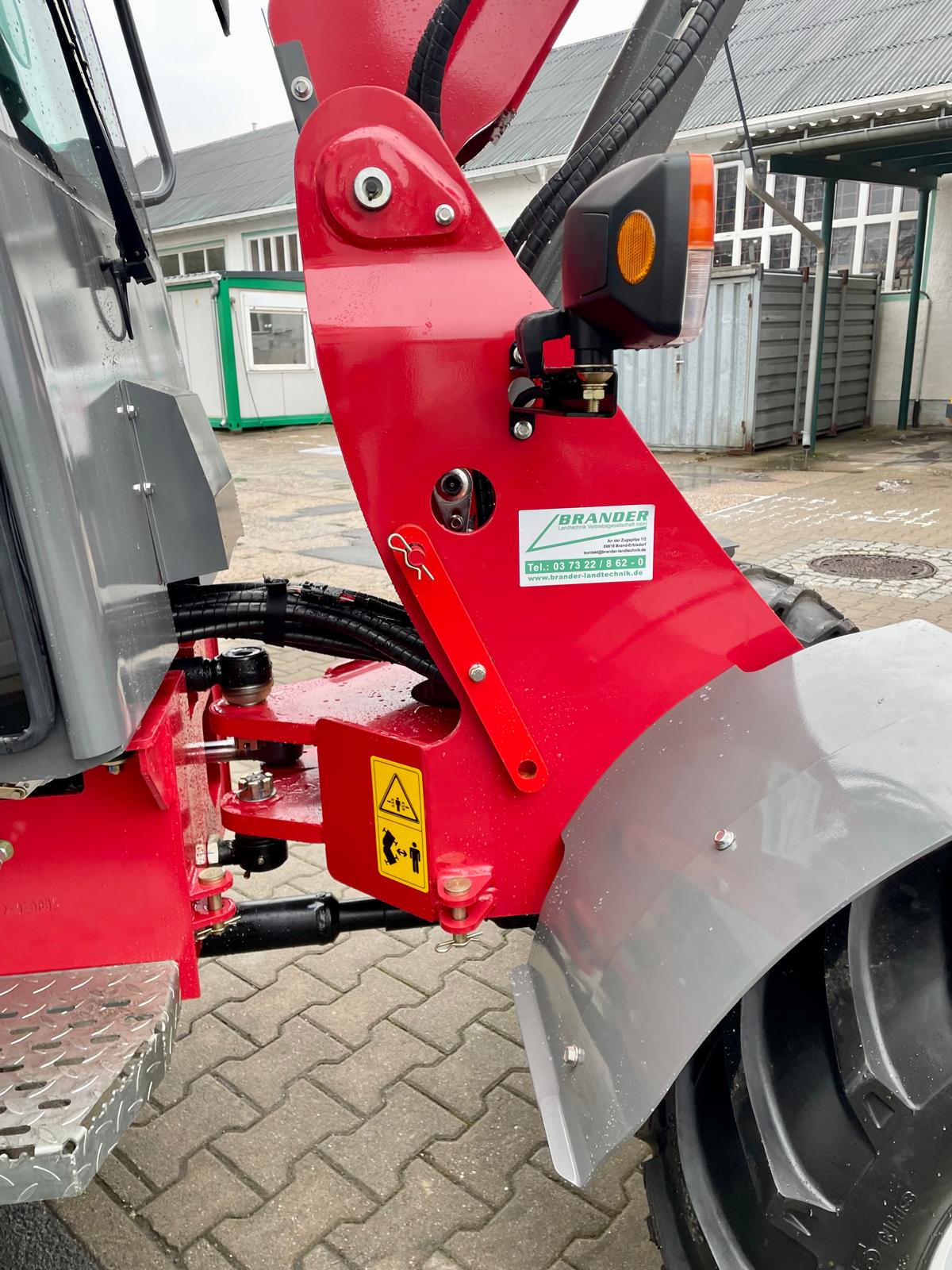

- Stable articulated pendulum head for a secure stand
- Permanent all-wheel drive for optimum traction
- Differential lock front & rear

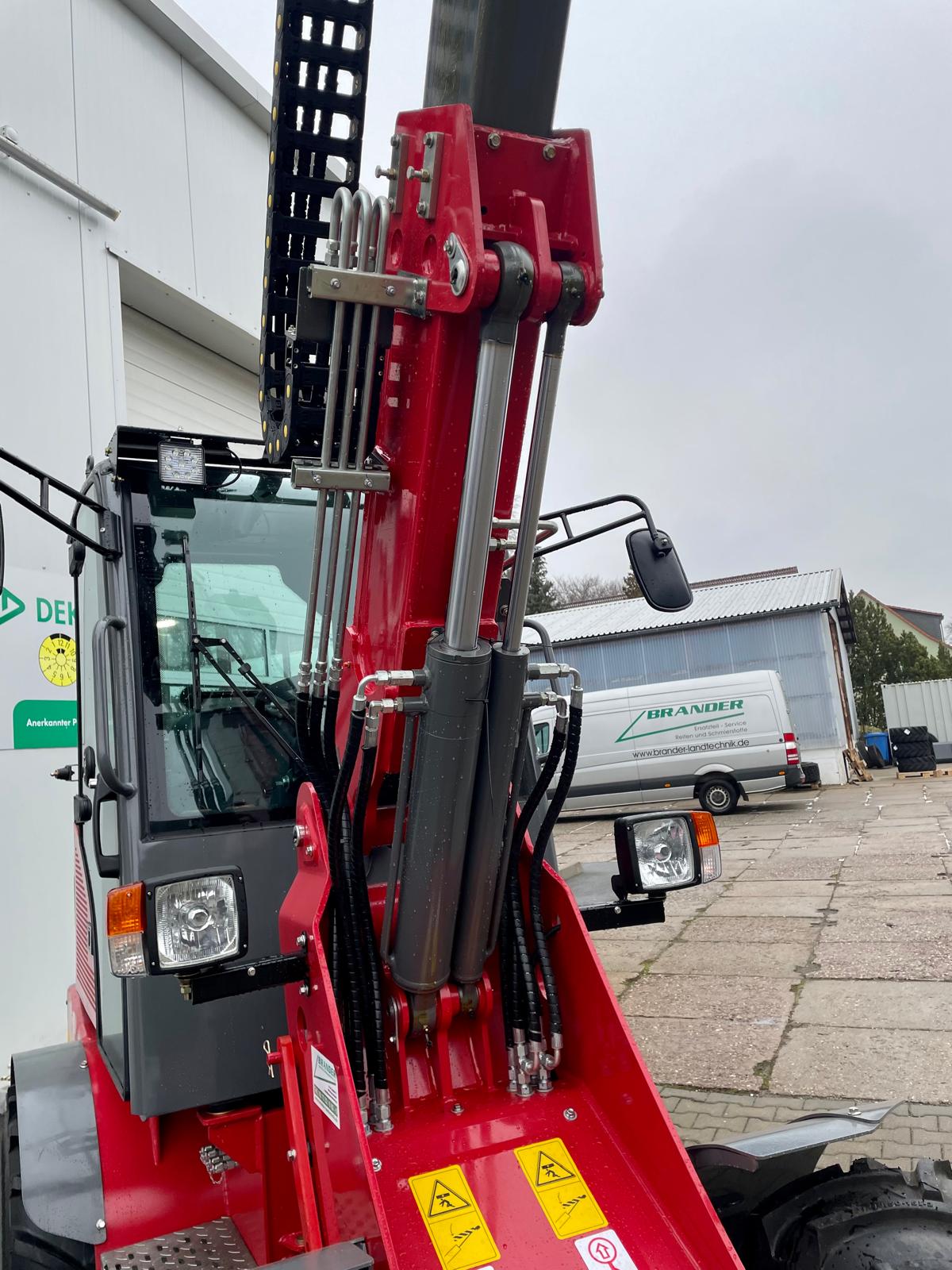

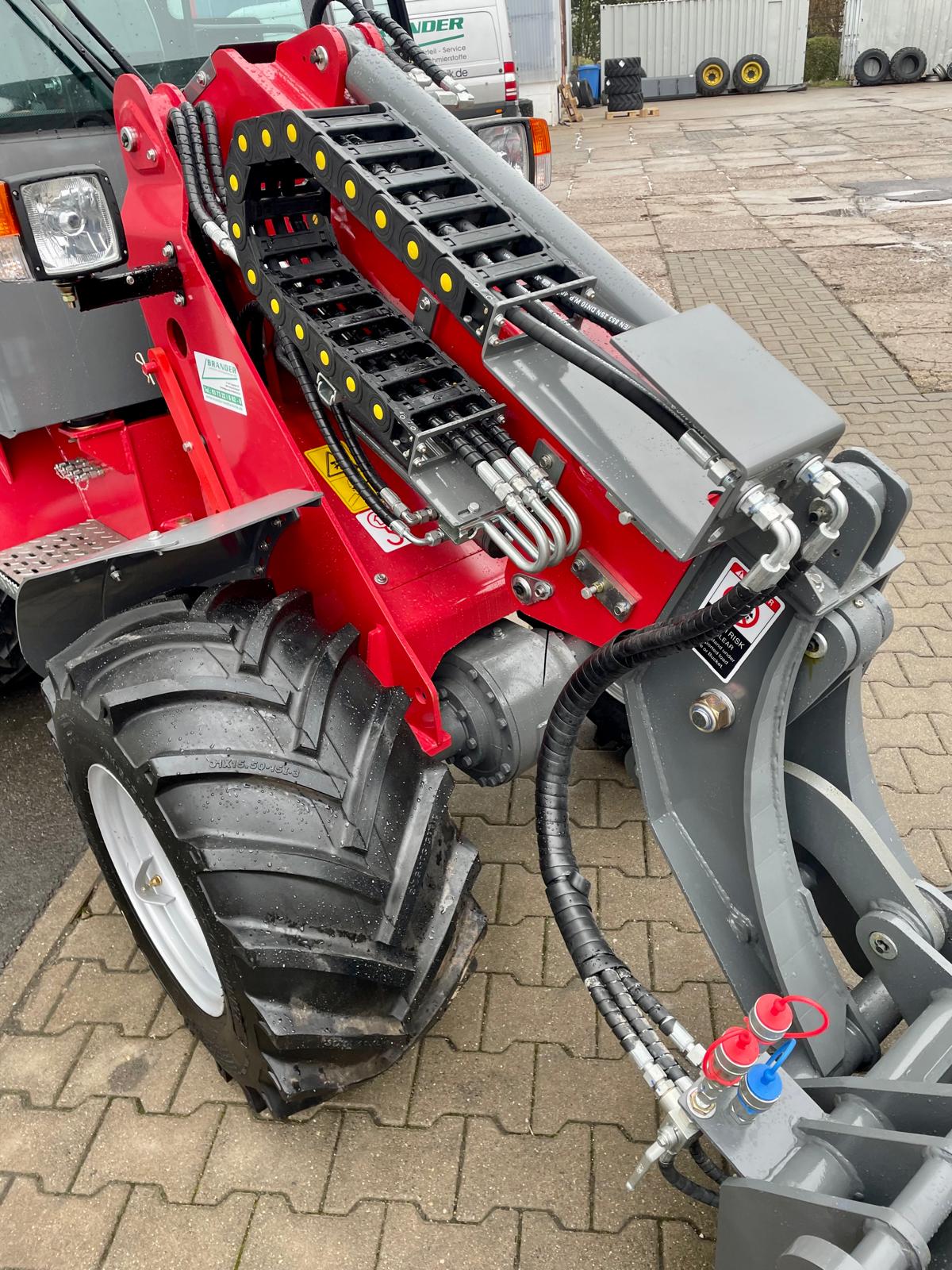

- Telescopic arm with optimised hydraulic lines

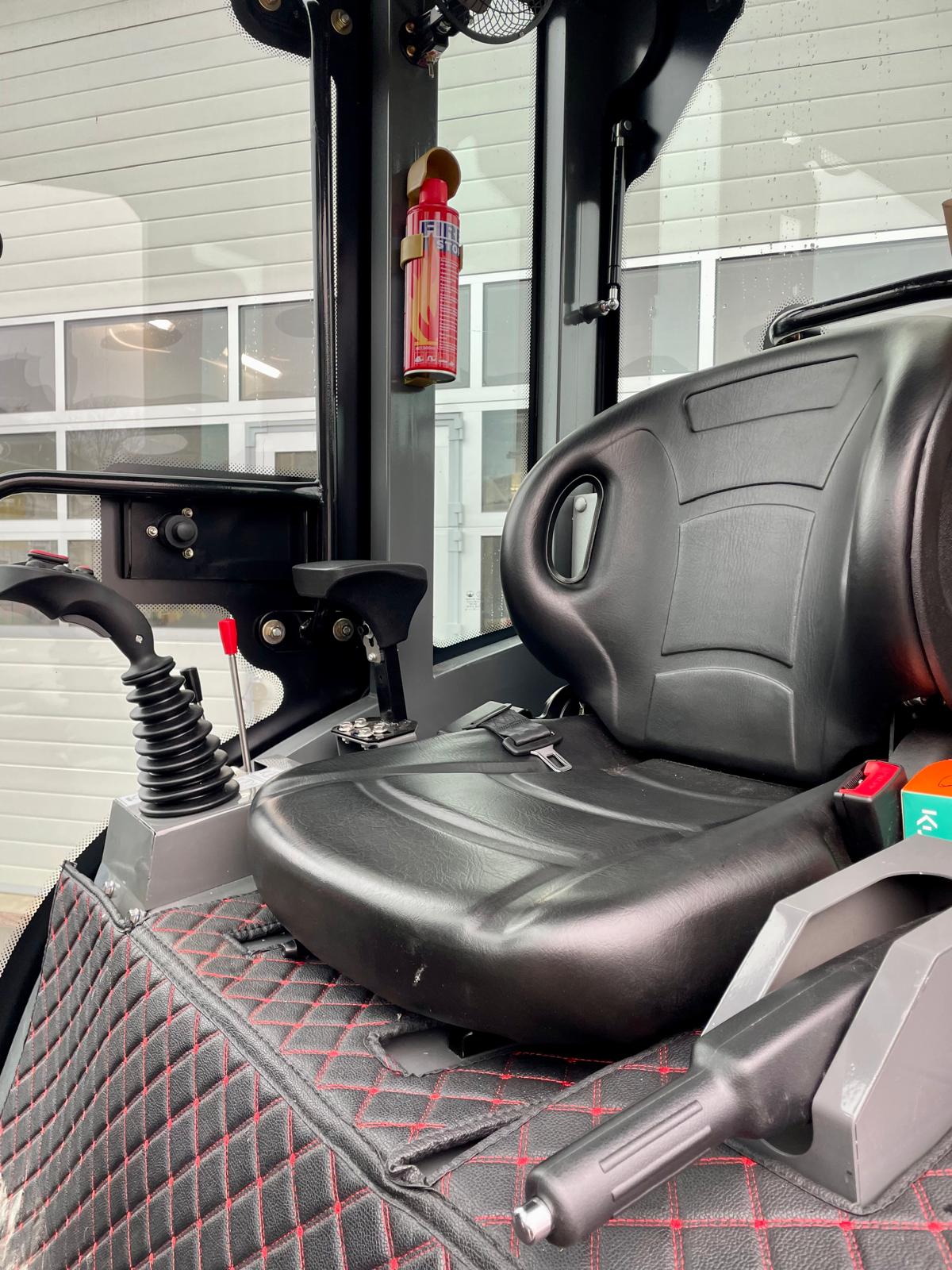

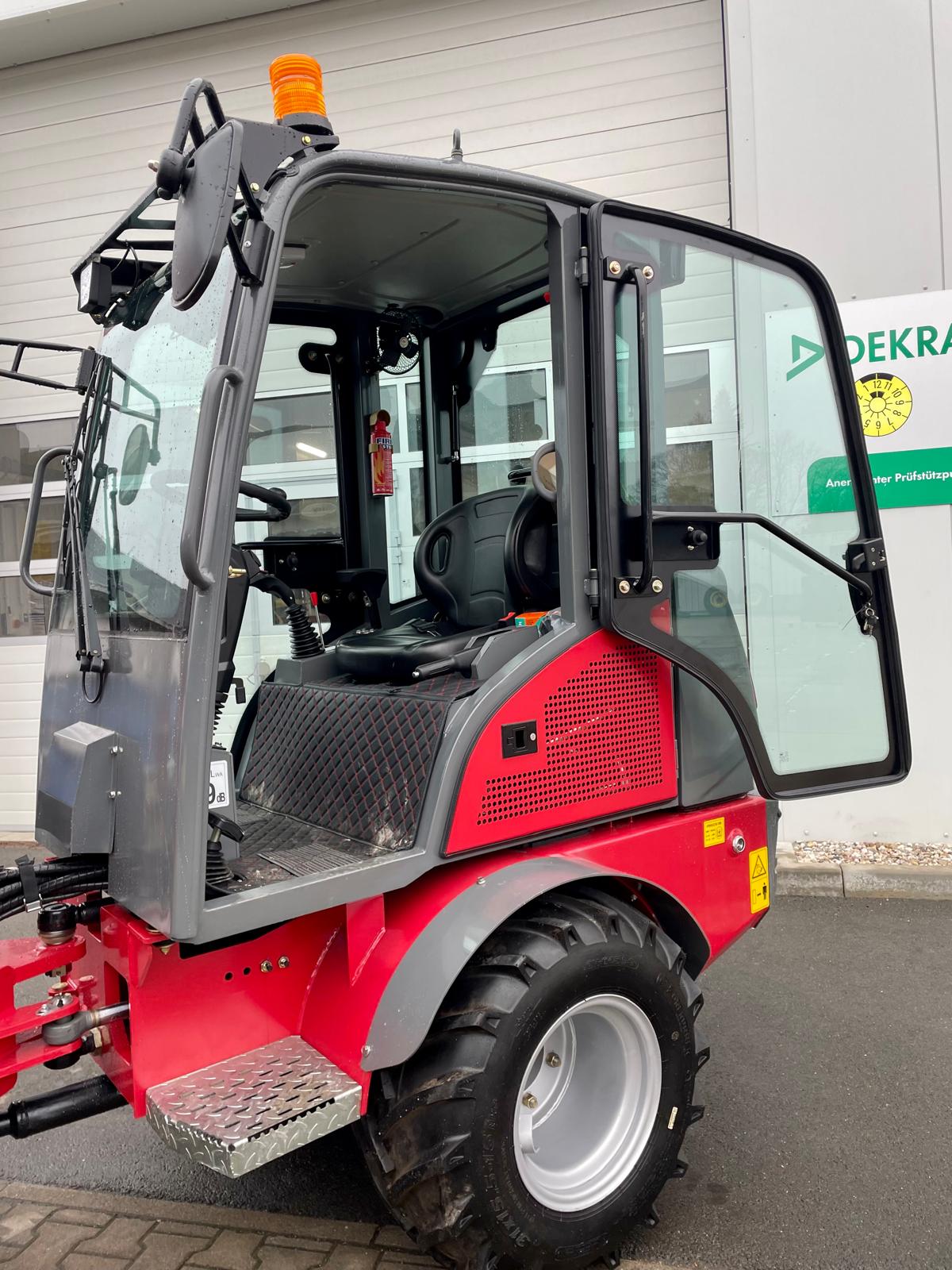

Comfortable cabin & user-friendliness

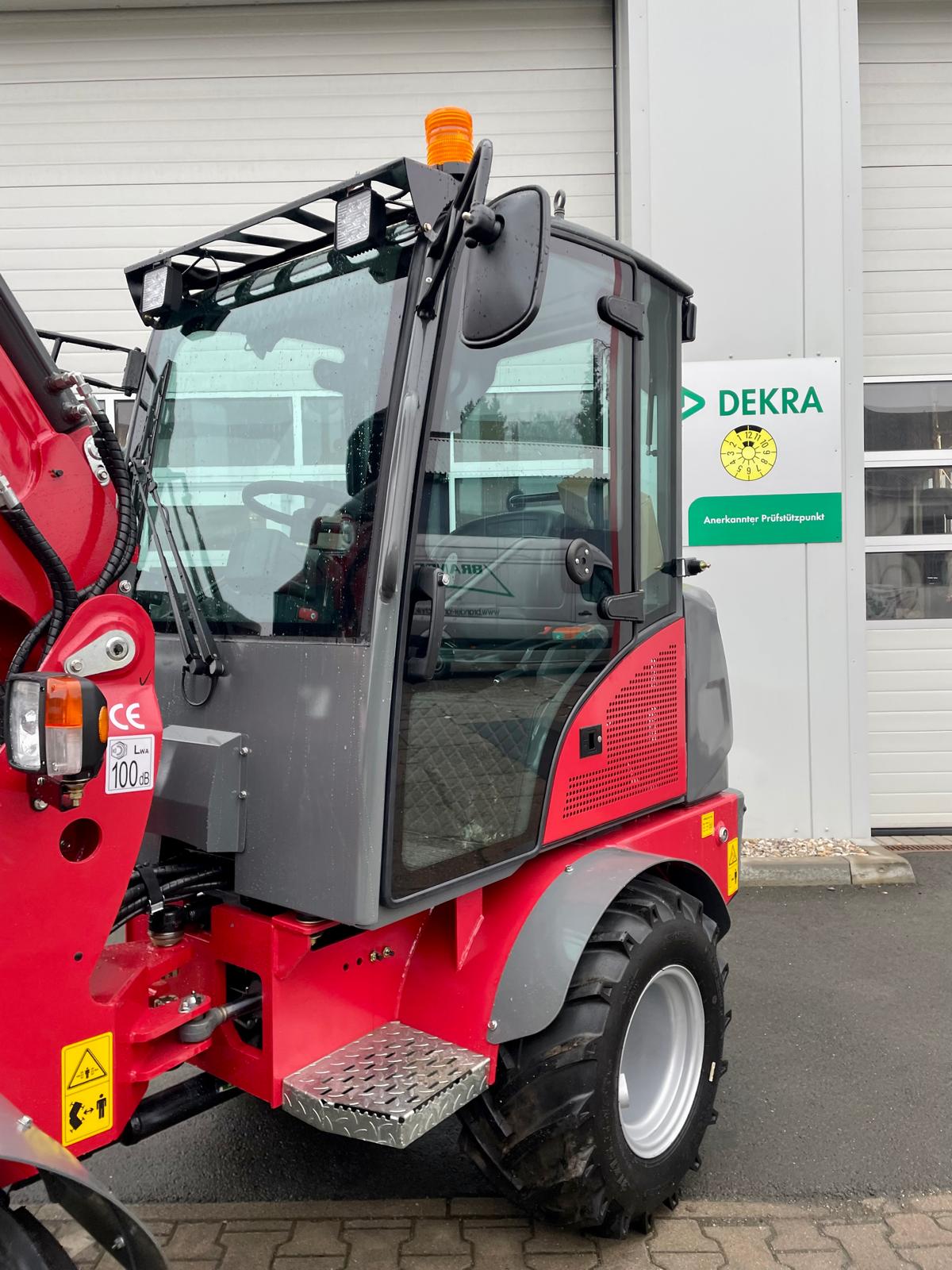

- Spacious, heated cabin

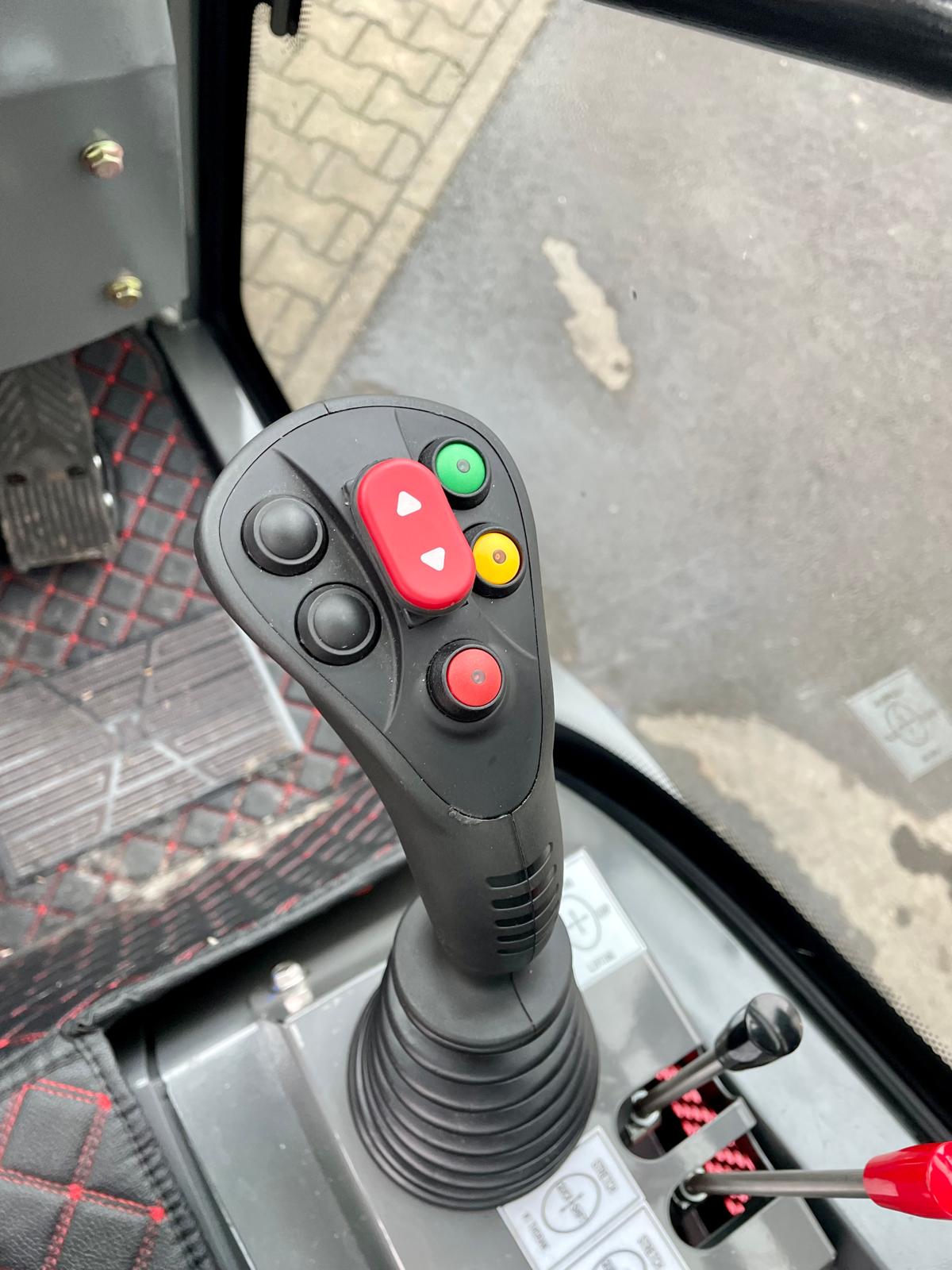

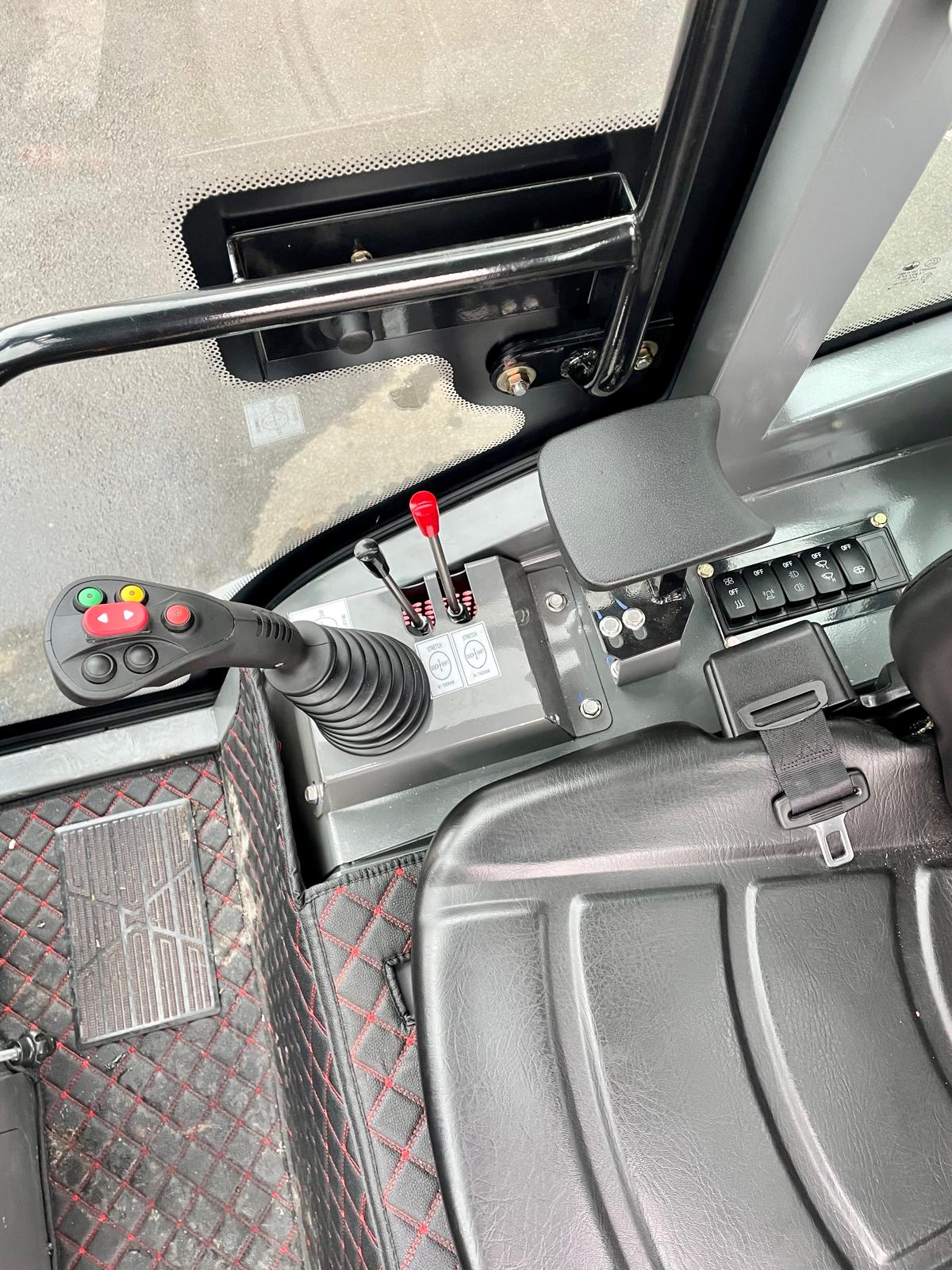

- Joystick control with forwards/backwards, lift/shovel, speed levels & diff lock
- Generous all-round visibility

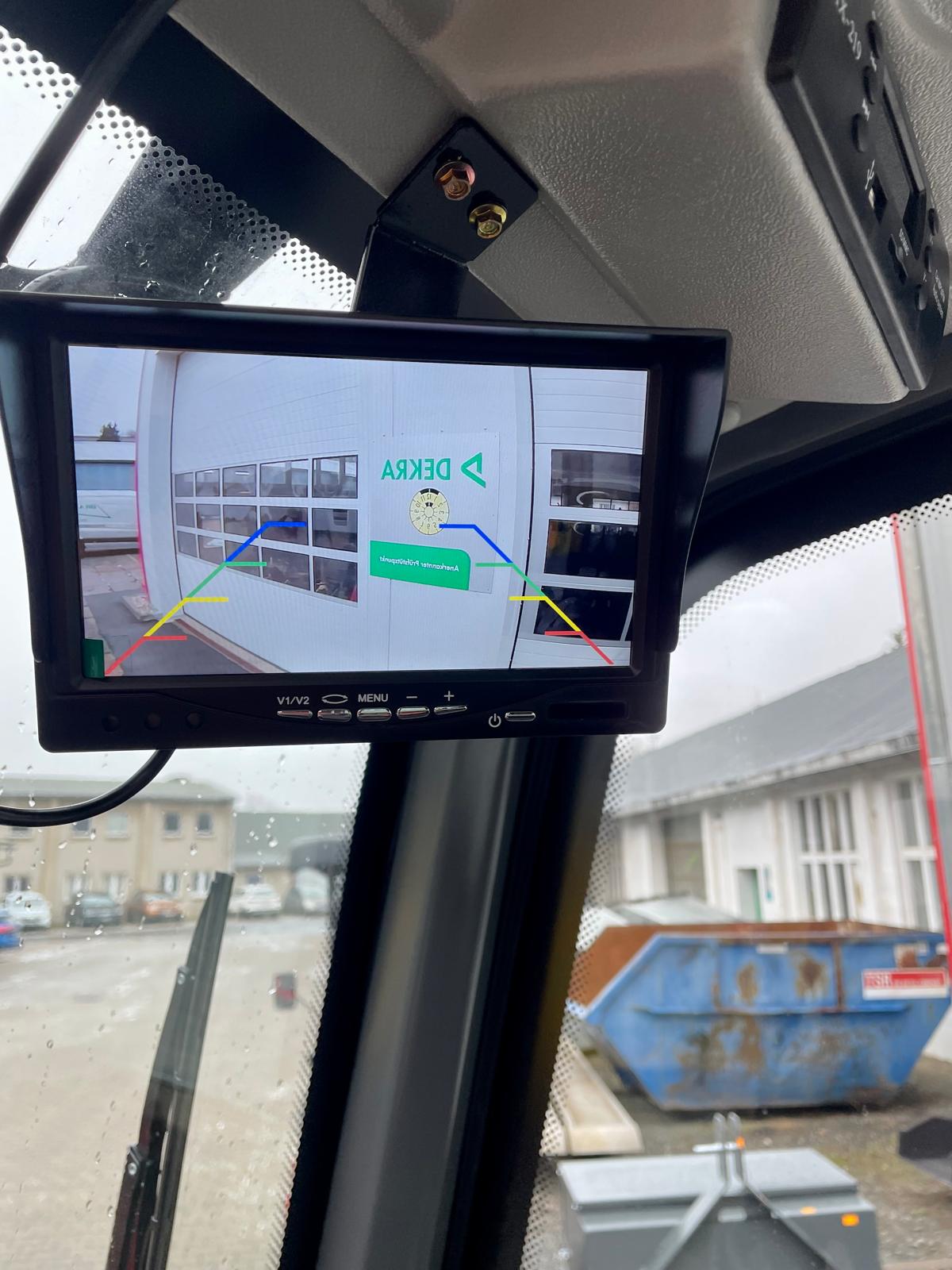

- Reversing camera for safe manoeuvring
- LED worklights front & rear
Included in the scope of delivery
- 380-litre bucket with removable teeth

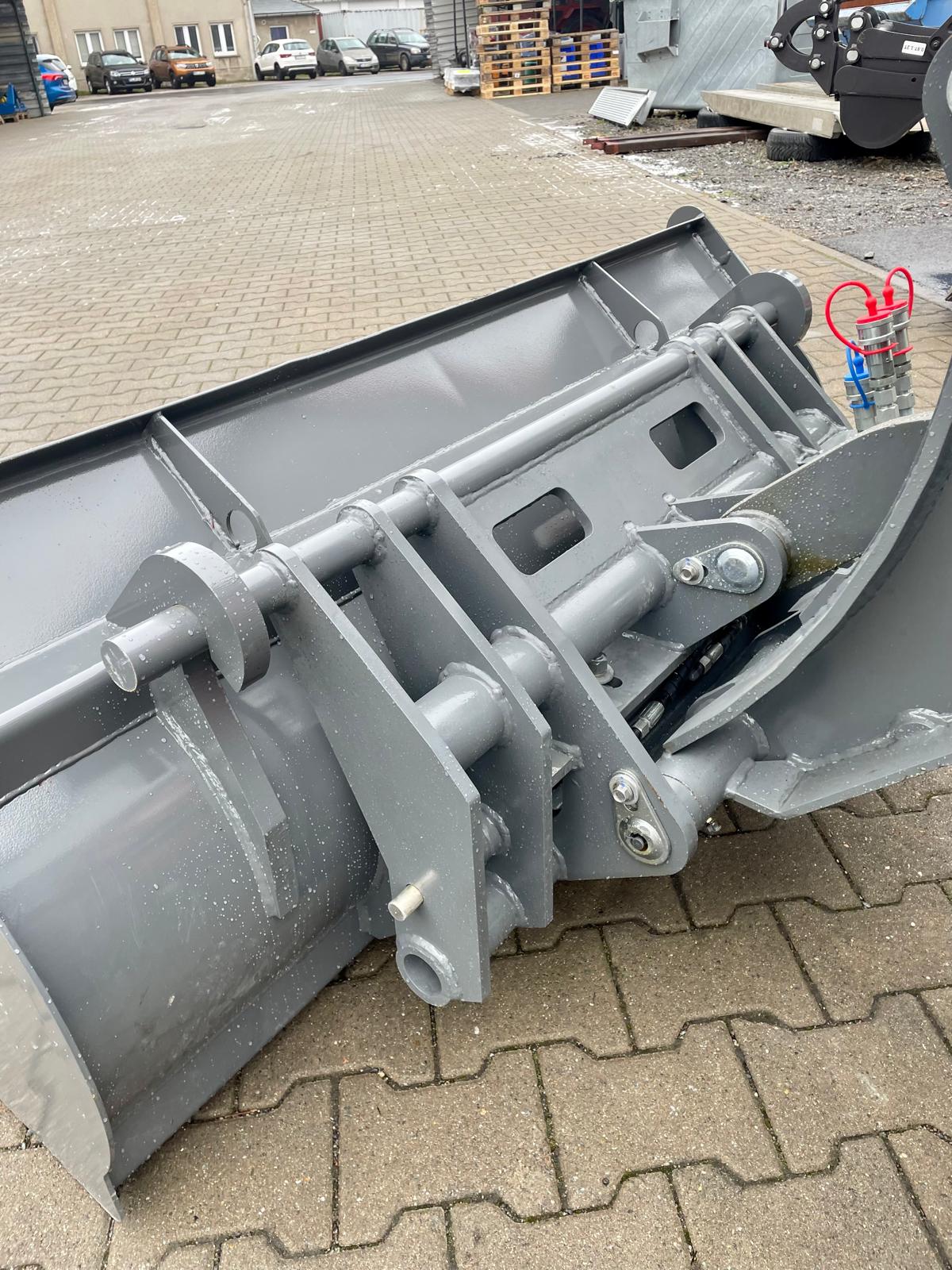

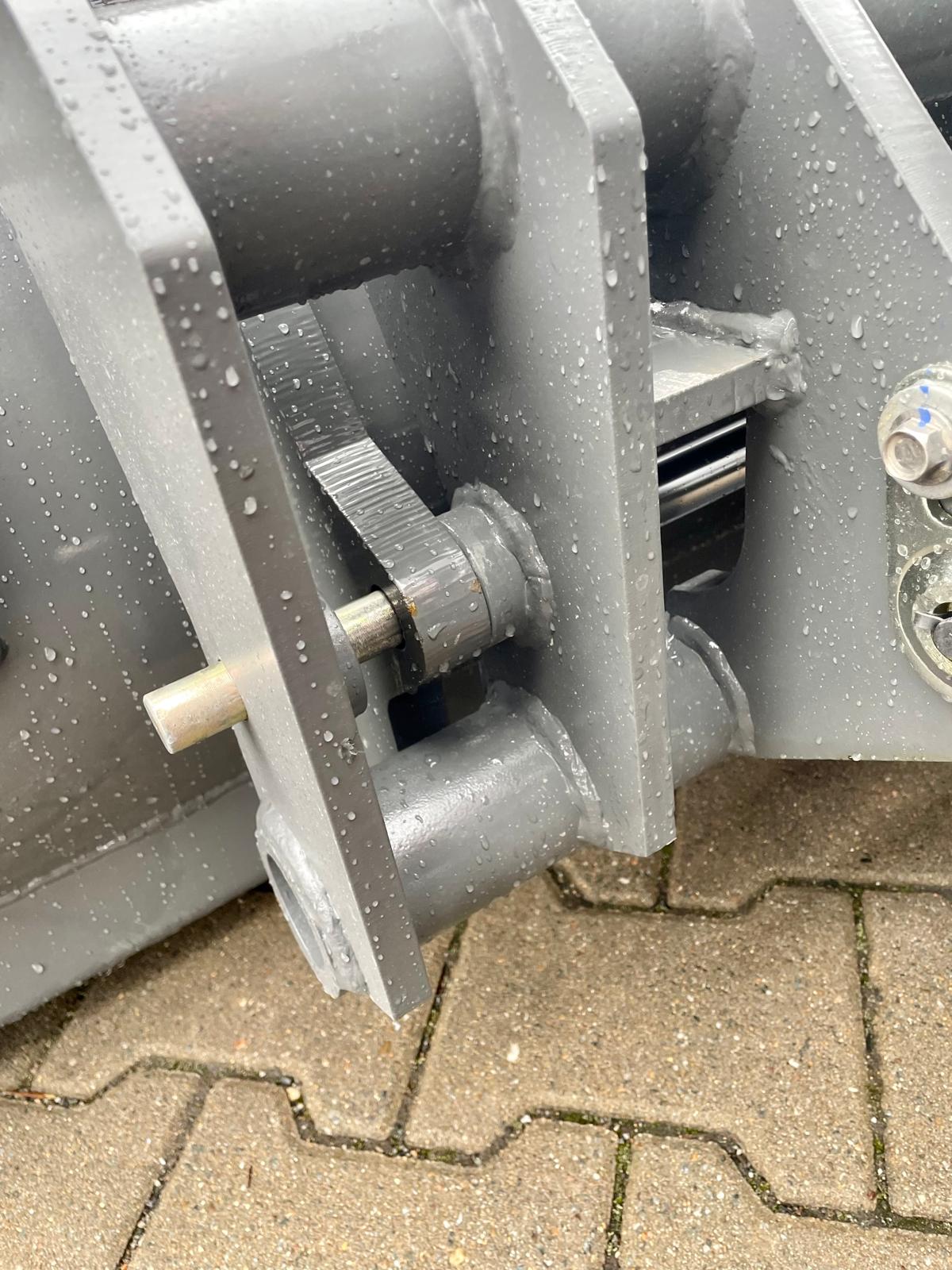

- Euro mount with hydraulic quick coupler

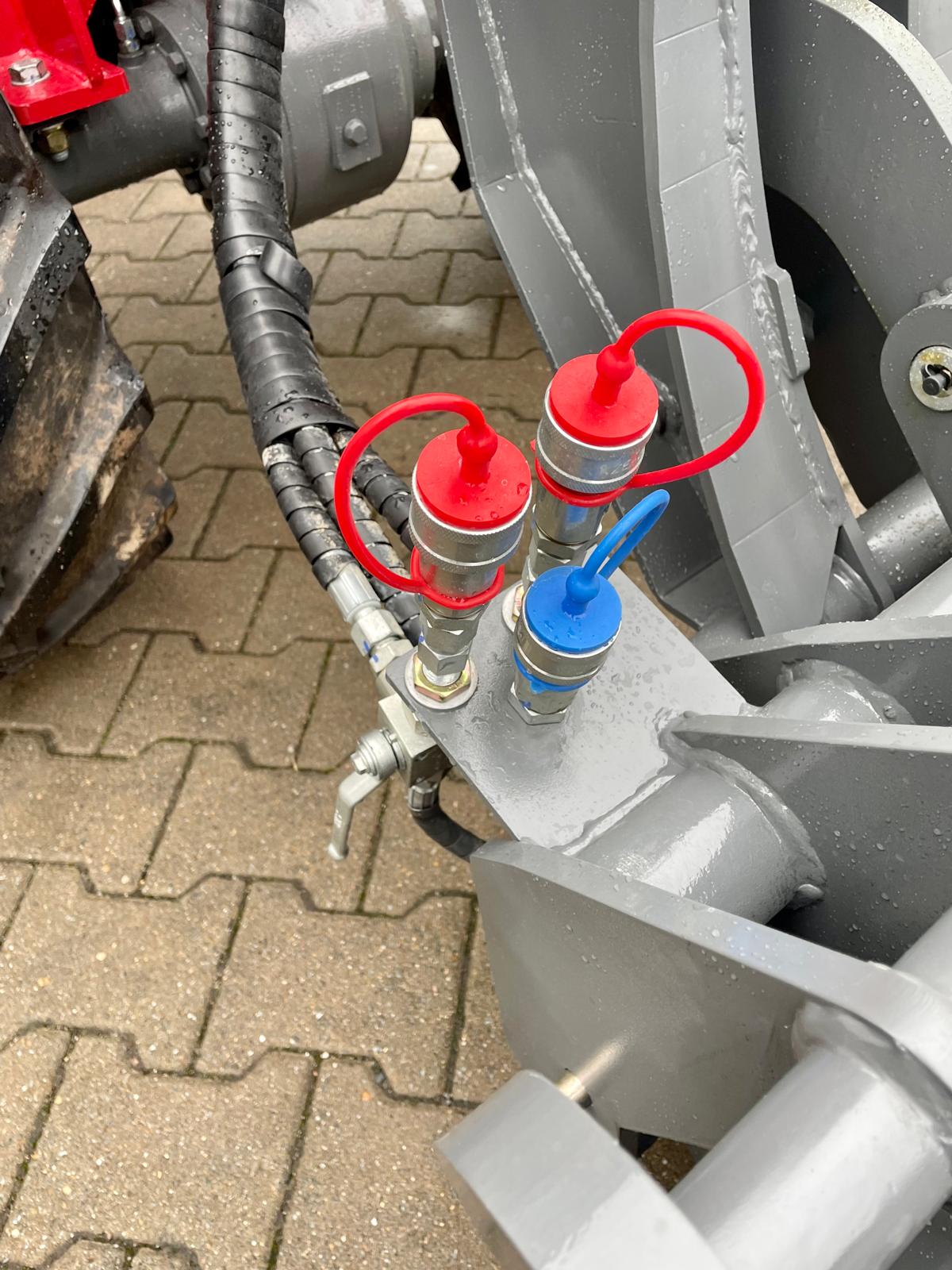

- 3rd & 4th steering committee
- Floating position
Technical data
- Nominal load: 1200 kg
- Total weight: 2650 kg
- Bucket volume: 0,38 m³
- Max. tractive force: 17 kN
- Max. break-out force: 20 kN
- Max. climbing ability: 20°
- Max. tipping height: 2029 mm
- Max. Dumping range: 608 mm
- Dimensions (L×W×H): 4210 × 1310 × 2316 mm
- Turning radius: 2807 mm
- Steering angle: 40°
- Swivelling angle: 8°

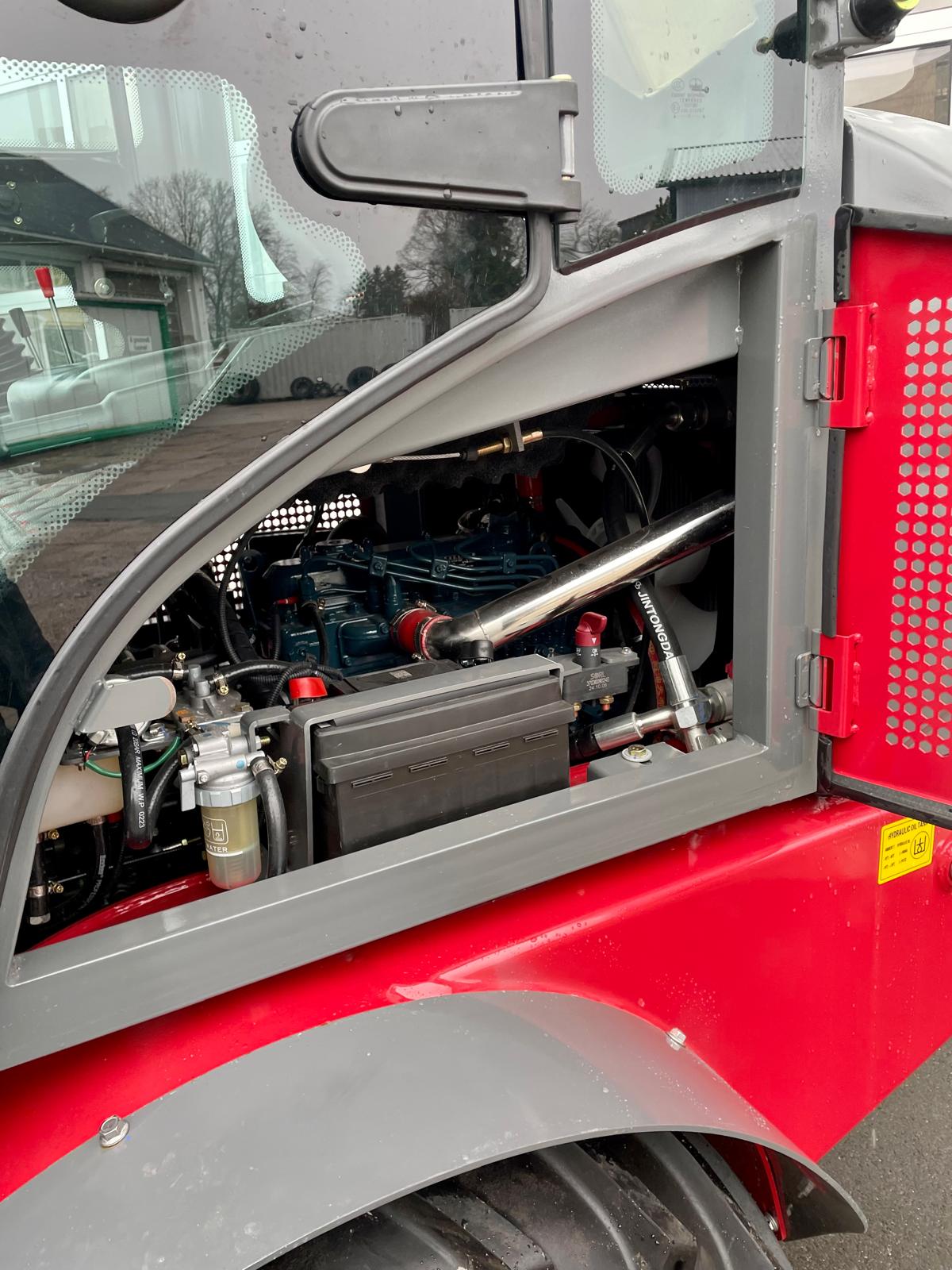

Engine

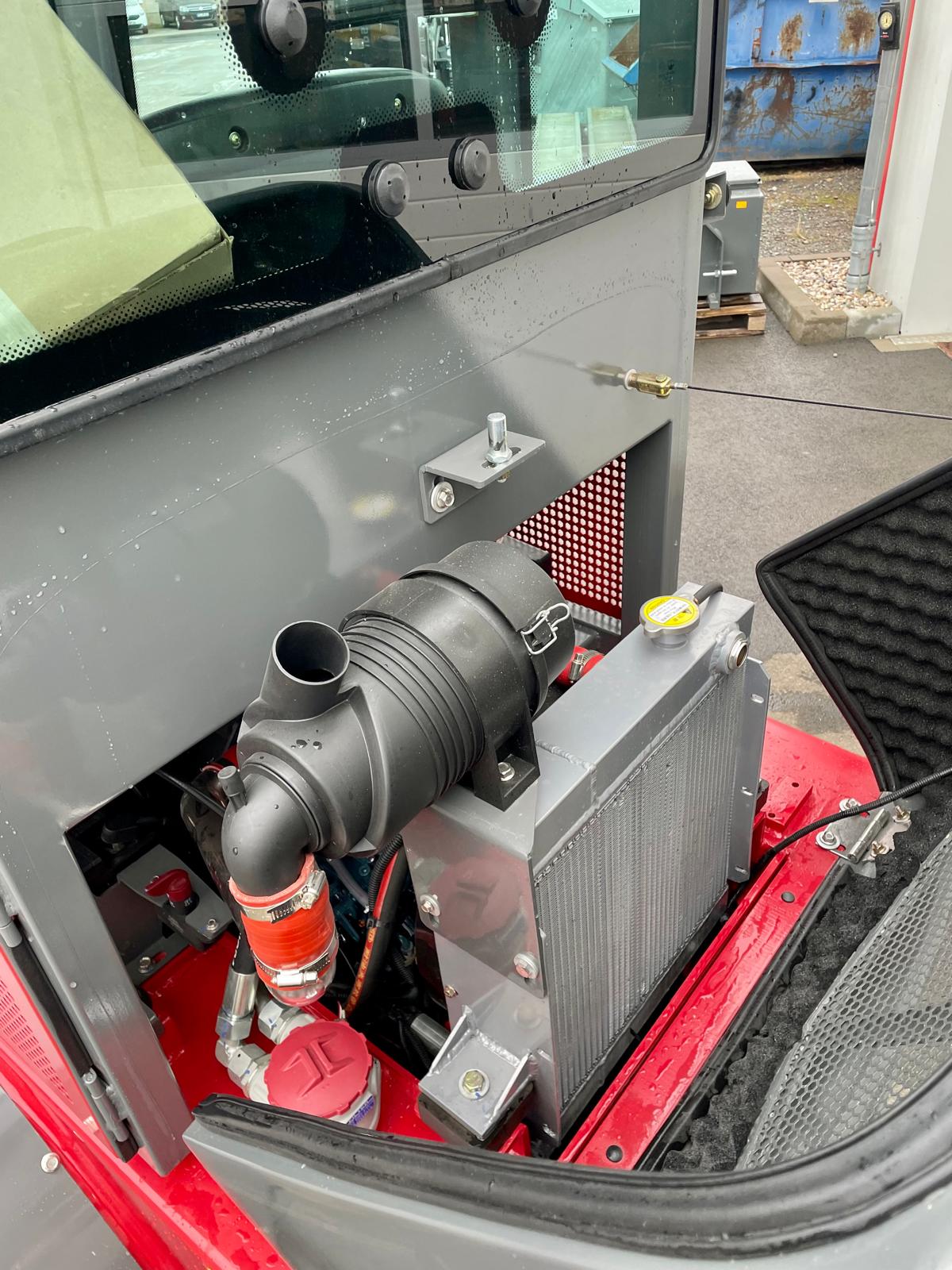

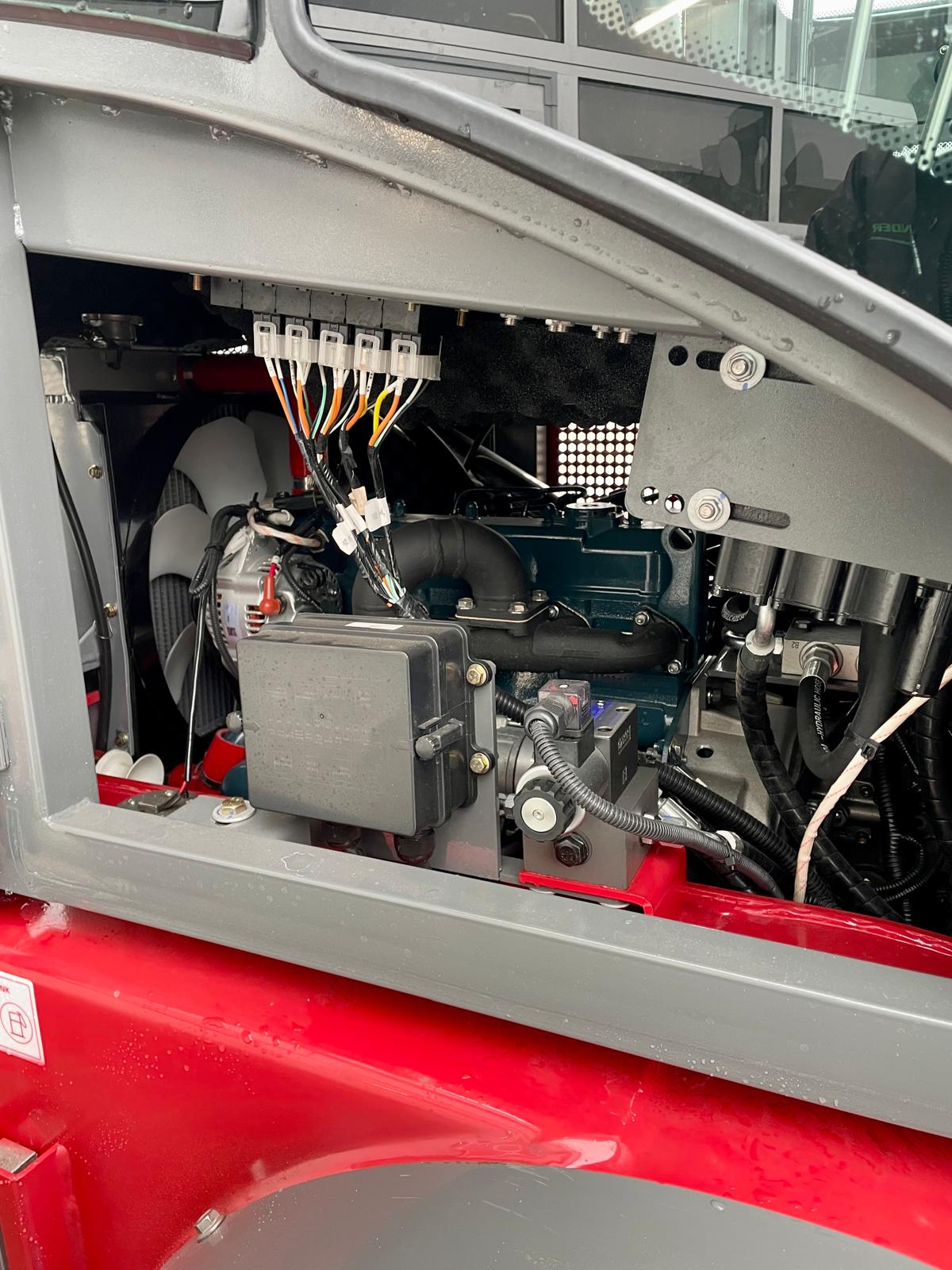

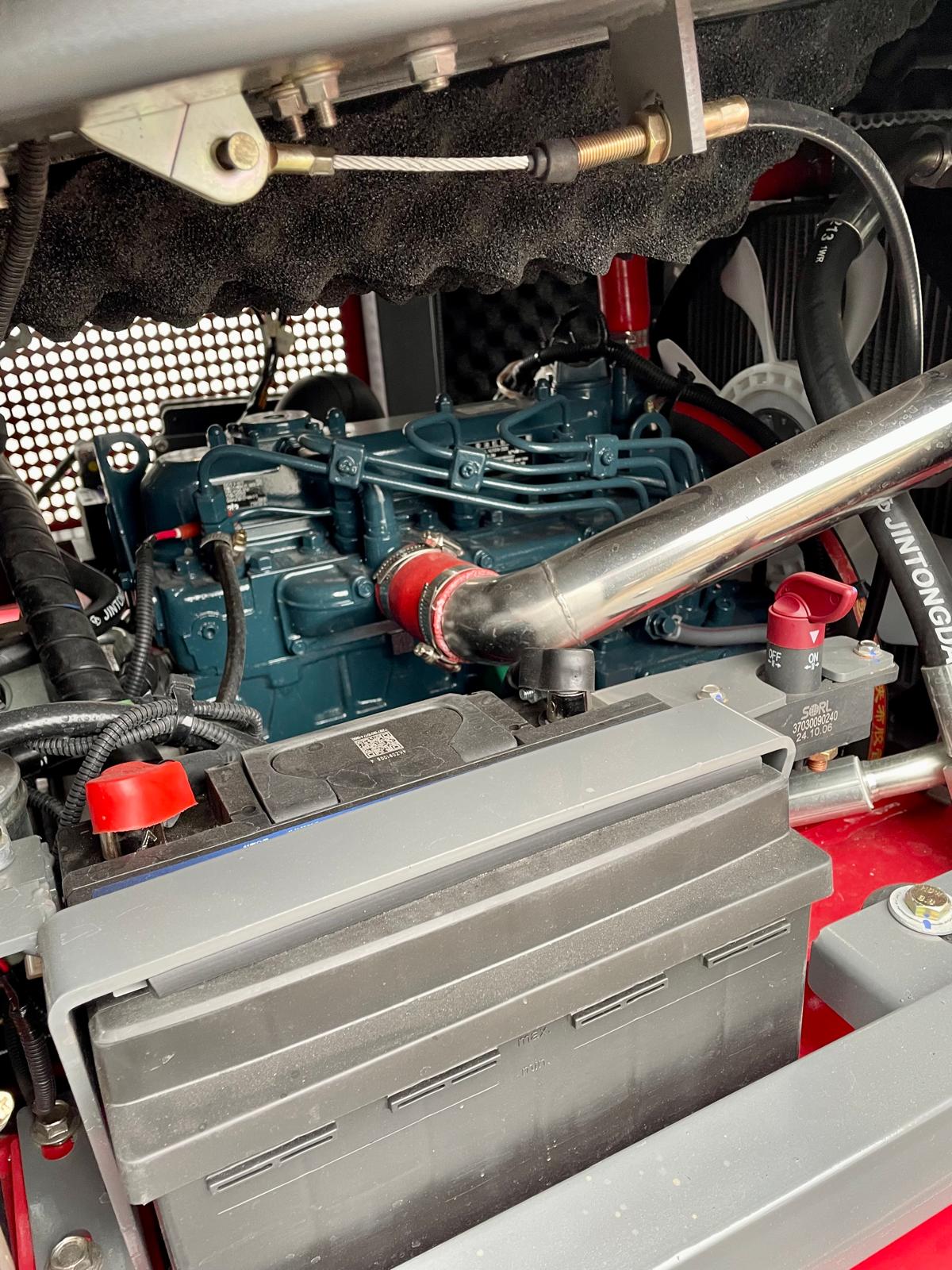

- Model: Kubota V1505
- Type: Water-cooled 4-cylinder in-line engine
- cubic capacity: 1,813 L
- Performance: 18.2 kW
- Rated speed: 2300 rpm
- Max. Torque: 92.6 Nm at 1700 rpm
Gearbox & travel drive
- System: Closed piston pump
- Gear change: 2-stage electric
- Speeds: 7 / 18 km/h
This telescopic wheel loader offers an exceptional combination of power, stability, ease of use and top equipment - an indispensable helper for any professional operation.
