Suevia drinking bowl mod. 19R-MS¾"

Description

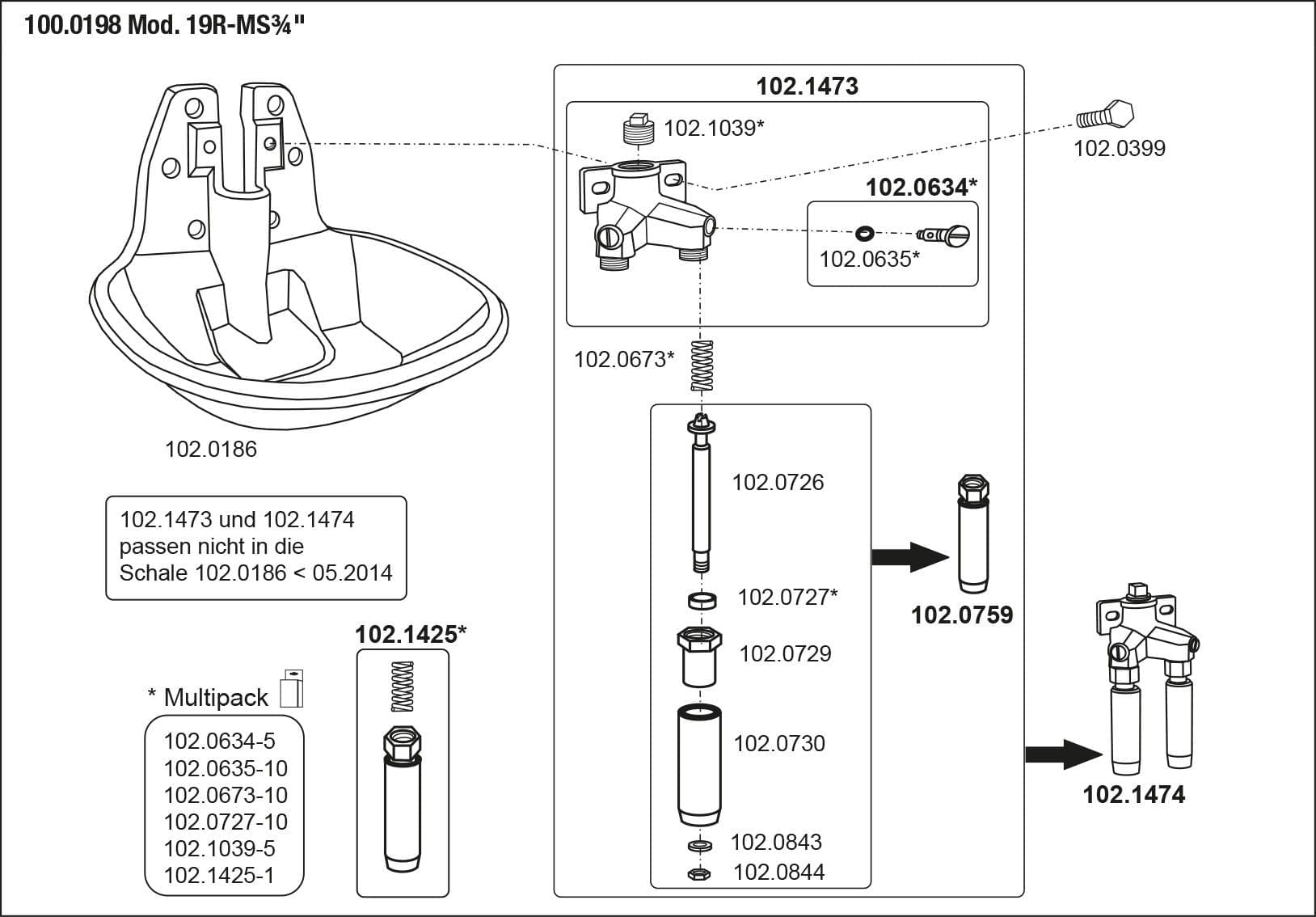

Suevia drinking bowl mod. 19R-MS¾"

  • Flat, large bowl made of cast iron, fully enamelled, easy to clean
  • Ideal for installation in a bay partition wall
  • Very high water flow rate of up to 20 l/min
  • Water volume infinitely adjustable from the outside using a regulating screw
  • Double pipe valve made of brass with ¾" threaded connection from above and below
  • Smooth water supply through the pipe valve
  • 6-hole mounting
Pressure
max. 5 bar (high pressure)
Suitable for
Bulls (without nose ring), dairy cows, cattle
Threaded connection
¾"
Suitable for ring line
yes
Bowl material
Enamelled cast iron
Valve type
Pipe valve
Valve material
brass
