Stürmer drill bit sharpener - 3 to 13mm drill bits
€170.69
Free shipping
Available, delivery time: 1-3 days
Description

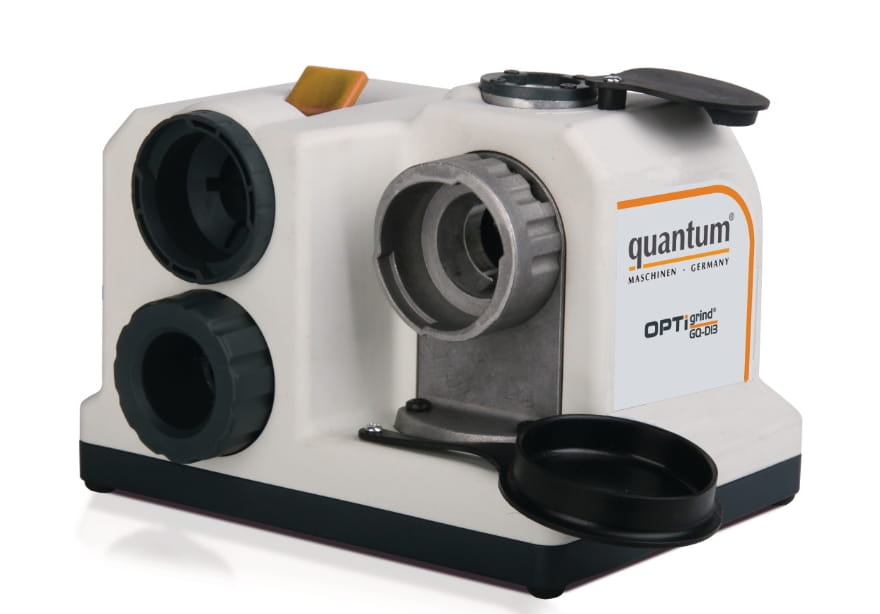

Stürmer drill bit sharpener - 3 to 13mm drill bits
The handy drill bit grinder from quantum. For easy regrinding of twist drills from Ø 3 mm to Ø 13 mm
- Simple operation for cost-effective grinding of double-edged twist drills
- Drill grinding without prior knowledge - clean, fast and precise
- Easy to transport
- Easy replacement of the grinding disc
- Force-guided sharpening process and therefore easy to operate
- Automatic grinding of the tip geometry thanks to the cam disc
- Robust plastic housing with non-slip feet
- Diamond whetstone with a long service life for a perfect cut
Three steps to a ground drill bit
- Set drill bit - twist drill bit is aligned to the overhang length and at the correct angle
- Regrind the drill bit - by turning it slightly from stop to stop
- Sharpening the drill bit - also by turning it slightly from stop to stop
Scope of delivery:
- Diamond grinding disc
- Collet chuck holder
Speed: 4200 min¯¹
Grinding disc outer diameter: 78 mm
Grinding capacity drill diameter: 3 13 mm
Length (product) approx.: 220 mm
Width/depth (product) approx.: 200 mm
Height (product) approx.: 160 mm
Weight (net) approx.: 2.5 kg
Drive motor power: 0.08 kW
Supply voltage: 230 V
Phase(s): 1 Ph
Type of current: AC
50: Mains frequency Hz
