Straw pelleting plant up to 700 kg/h – High-performance production line 91 kW
€60,500.00
Description
Straw pelleting plant up to 700 kg/h – High-performance production line 91 kW
Straw pelleting plant up to 700 kg/h - high-performance plant for fuel, bedding and feed
TheStraw pelletising plant up to 700 kg/h is a complete, professional production system for converting straw bales and loose agricultural material into high-quality pellets. The line has been specially optimised for straw and provides a stable, energy-efficient and economical solution for the production of fuel pellets, animal bedding or feed pellets.
Thanks to the fully integrated system - consisting of raw material preparation, mixing, granulation, cooling, dedusting and transport to the packaging area - the system guarantees a safe, clean and continuous production process with a capacity of up to700 kg per hour.
Process sequence of the straw pelleting plant
1. raw material preparation
Bales with a diameter of up to 150 cm and loose organic materials are first processed in a high-performance shredder. This optimally prepares the material for the subsequent pelletising process by reducing it to the required particle size.

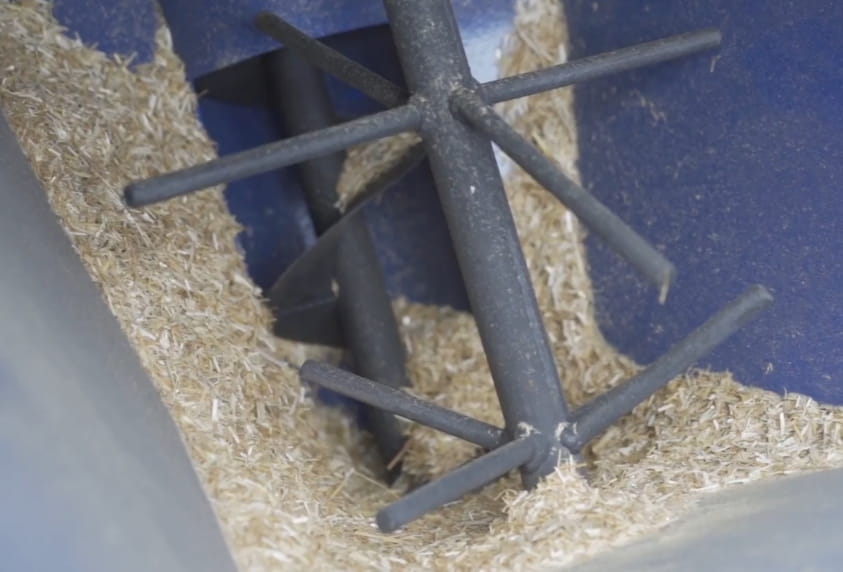

2. homogenisation of the material
The pre-shredded material is processed in the horizontal mixing system, where a homogeneity of up to 95 % is achieved through an intensive mixing process. A large opening segment facilitates manual filling. A weigher with acoustic signal is available as an option.
3. pelletising - output up to 700 kg/h
The pelletising process takes place in a pelletising-efficient high-performance press with a 45 kW drive motor and an X-roller arrangement. The prerequisites are
- Material moisture between 12-14 %
- Shredding up to a maximum of 6 mm
- Optional moulds for 6 mm or 8 mm pellet diameter
Under optimal conditionsup to 700 kg of pellets per hour produced.
4. calibration & cooling
After the pressing process, the hot granulate enters the drum calibrator, where it:
- sieved,
- cooled,
- dehumidified,
- dedusted
is used. The sieve drum can be configured with openings from 2-12 mm as required.
5. extraction & cleaning
A closed system removes excess dust particles and discharges them into filter bags. This minimises dust generation and enables the reuse of fine material.
6. transport & big bag filling
A robust conveyor belt with a conveying speed of 7 m/min ensures smooth transfer of the finished pellets to the packaging station. A stable big bag frame allows the safe and efficient filling of bags of different sizes.
Advantages of the straw pelleting system
- Optimised for straw and agricultural biomass
- High efficiency: up to 700 kg/h
- Automated overall process from shredding to big bag loading
- Clean and safe operation thanks to closed conveyor system
- Homogenisation up to 95 % for optimum pellet quality
- Ideal for fuel, animal bedding and animal feed
- Flexible configuration options
Expandable modules for greater automation
- Chain conveyor system - ensures the continuous supply of material
- SC-600 pellet cooler - Optimises the final moisture content before packaging
- Semi-automatic dosing station - for film bags
- Fully automatic packaging line - Maximises efficiency & speed
Technical data
- Product type: Production line for straw pellets
- Field of application: Fuel - Bedding - Feed
- Performance: up to 700 kg/h
- Total energy consumption: 91.5 kW
- Tension: 380-400 V / 50-60 Hz
- Pellet diameter: 6 or 8 mm
- Pellet length: 1-5 cm (adjustable)

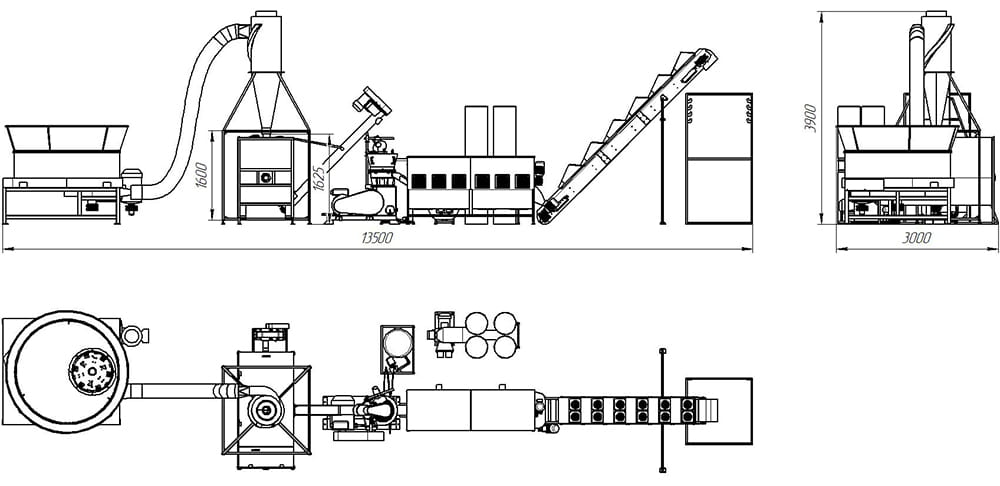

- Total length of the line: 13,5 m
- Width: 3,0 m
- Height: 3,9 m
- Weight: 3,2 t
Areas of application
Ideally suited for:
- Agricultural businesses
- Biomass processor
- Feed producers
- Manufacturer of animal litter
- Farms with straw bales or loose straw material
TheStraw pelletising plant up to 700 kg/h stands for maximum efficiency, economy and flexibility - a professional solution for companies that require reliable technology for pellet production.
