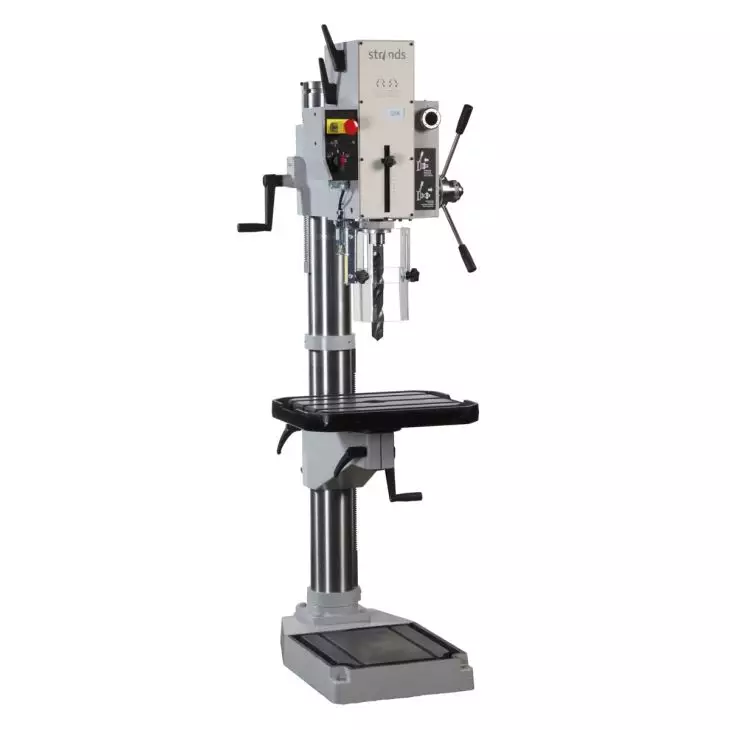

Strands geared pillar drill, 35 mm drilling capacity, electromagnetic feed, automatic tapping device, 2,000 W motor
€10,750.00
Free shipping
Available, delivery time: 2-5 days
Description
Strands geared pillar drill, 35 mm drilling capacity, electromagnetic feed, automatic tapping device, 2,000 W motor
Strands pillar drill 35 mm ME - Premium quality "Made in Sweden"
TheStrands pillar drill 35 mm ME stands for maximum precision, extreme durability and state-of-the-art technology - manufactured inPremium quality made in Sweden. With aDrilling capacity of 35 mm in steelWith a robust gearbox and a powerful 2,000 W motor, it offers maximum reliability for demanding drilling and tapping work in industry and trade.
TheGearbox of the Strands ME series is equipped with the traditional, proven technology forhighest possible torque constructed. Helical toothed steel gears in combination with reinforced fibre material guaranteehigh efficiencyaLow noise level and aLong service life. Thanks to the high-quality design, the gearbox is virtually maintenance-free and ensures a long service life.quiet and smooth running - even under full load.
TheAutomatic thread cutting device and theElectromagnetic quill feed enable precise control via buttons directly on the handwheel. Both the manual and automatic reverse function for thread cutting are included as standard. The machine is also supplied witha container of gear oil for topping up for optimum lubrication of the gearbox at all times.
Advantages of the Strands pillar drill 35 mm ME
- Drilling capacity Ø 35 mm - Ideal for precise metalworking
- Premium quality made in Sweden - Robust, durable, reliable
- Electromagnetic feed (ME) - Convenient control via buttons
- Automatic thread cutting device - Precise working with automatic reversal
- Extremely quiet gearbox operation thanks to helical-toothed steel/fibre gears
- Automatic tool ejection - Quick tool change
- Right/left rotation as standard - Ideal for thread cutting
- Drill head can be swivelled 360 and height-adjustable
- High-performance spindle made from tool steel - Designed for extreme loads
- Solid cast iron table with T-slots and oil channel
- Height-adjustable table arm and 360° swivelling
- Hardened, ground drill column - Maximum stability and angular accuracy
- Durable, low-maintenance design - Designed for continuous use
Standard equipment
- Quick-action drill chuck 1-16 mm (B16)
- Cone mandrel MK 4
- Automatic thread cutting device
- Electromagnetic quill feed
- Container with gear oil for topping up
- Solid cast iron table with T-slots and oil channel
- Automatic tool ejection
- Operating instructions / CE certificate
Technical data - Strands pillar drill 35 mm ME
| Technical property | Value |
|---|---|
| Drilling performance in steel | 35 mm |
| Thread cutting performance | M22 |
| Spindle holder | MK 4 |
| Speed range | 75 - 3,010 rpm |
| Speed levels | 8 |
| Quill stroke | 150 mm |
| Quill feed stages | 4 |
| Quill feed | 0.10 / 0.15 / 0.22 / 0.30 mm/rev |
| Column diameter | 127 mm |
| T-slots, width | M14 mm |
| Drill table stroke | 840 mm |
| Spindle projection | 320 mm |
| Rotatable drilling table | ± 360 ° |
| Quill spacing base | 1,150 mm |
| Quill distance table | 140 - 820 mm |
| Drilling table surface | 500 × 400 mm |
| Engine power | (2-stage) 1,400 / 2,000 W |
| Mains connection | 400 V / 50 Hz |
| Weight | 290 kg |
Conclusion
TheStrands pillar drill 35 mm ME is the perfect solution for demanding drilling work and precise thread cutting. With its robust design, electromagnetic feed and automatic thread cutting device, it offers maximum productivity with the highest precision. A realPremium machine made in Sweden for trade and industry that sets new standards in terms of quality, performance and durability.
Strands - Scandinavian precision for professional metalworking.
