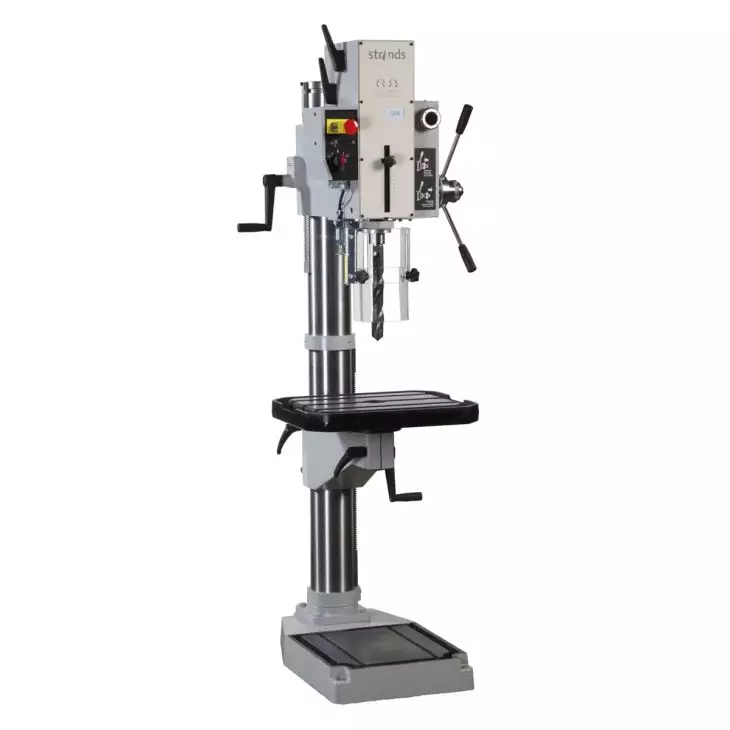

Strands gearbox pillar drill, 35mm drilling capacity, with automatic feed and quiet gearbox
€7,285.00
Free shipping
Available, delivery time: 2-5 days
Description
Strands gearbox pillar drill, 35mm drilling capacity, with automatic feed and quiet gearbox
Strands pillar drill 35 mm - Premium quality "Made in Sweden"
TheStrands pillar drill convinces throughHighest precision, durability andScandinavian engineering. With aDrilling capacity of 35 mm in steel and an automatic quill feed (model M), it is the perfect choice for professional workshops, metalworking shops and industrial production. Thetraditional, robust gearbox system offers maximum torque and an exceptionally long service life - a genuine quality productMade in Sweden.
The Strands drilling machine is equipped with a helical gearbox thatSteel gears combined with reinforced fibre material. This technology ensures aquiet running, high efficiency and virtually maintenance-free operation. TheHigh-performance spindle made from tool steel guarantees stability and precision even under high loads. With the automatic feed, the spindle automatically returns to its starting position once the set drilling depth has been reached - ideal for series drilling and maximum productivity.
Advantages of the Strands pillar drilling machine
- Drilling capacity Ø 35 mm in steel - perfect for professional metalworking
- Premium quality "Made in Sweden" - Durable, precise and reliable
- Highest possible torque thanks to proven gear technology
- Helical gears Made of steel and fibre material - quiet and durable
- Automatic tool ejection for efficient working
- Clockwise/anticlockwise rotation Integrated as standard
- Automatic quill feed (M) - Spindle returns automatically
- Drill head can be swivelled 360 and height-adjustable
- Precision spindle made from tool steel for maximum load
- Solid cast iron table with T-slots and oil groove for precise clamping
- Drill table arm Height-adjustable and can be swivelled 360° around the column
- Hardened and ground steel column - Absolute stability and angular accuracy
- Ideal forWorkshops, industry and metalworking
Standard equipment
- Quick-action drill chuck
- Cone mandrel MK4
- Automatic quill feed
- Solid cast iron table with T-slots
- Operating instructions / CE certificate
Technical data - Strands pillar drill 35 mm
| Technical property | Value |
|---|---|
| Drilling performance in steel | 35 mm |
| Thread cutting performance | M22 |
| Spindle holder | MK 4 |
| Speed range | 75 - 3,010 rpm |
| Speed levels | 8 |
| Quill stroke | 190 mm |
| Quill feed | 0.10 / 0.15 / 0.22 / 0.30 mm/rev |
| Quill feed stages | 4 |
| Column diameter | 140 mm |
| T-slots, width | M14 mm |
| Drill table stroke | 830 mm |
| Spindle projection | 330 mm |
| Rotatable drilling table | ± 360° |
| Quill spacing base | 1,210 mm |
| Quill distance table | 215 - 830 mm |
| Drilling table surface | 500 × 400 mm |
| Engine power | (2-stage) 2,200 / 2,600 W |
| Mains connection | 400 V / 50 Hz |
| Weight | 290 kg |
Conclusion
TheStrands pillar drill 35 mm stands forAbsolute precision, extreme stability and first-class workmanship. Whether in production, maintenance or metal fabrication - this machine guarantees efficiency and durability. With itsautomatic feedWith its high-quality gearbox and quiet running, it is the perfect choice for professionals who do not compromise.
Strands - premium drilling machines made in Sweden: precision, power and perfection.
