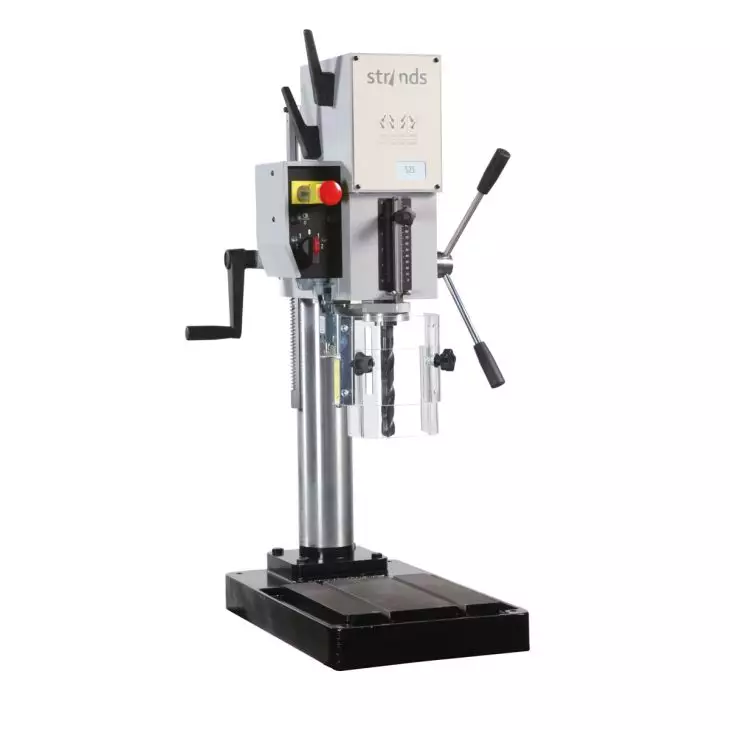

Strands gearbox pillar drill, 25 mm drilling capacity, MK3 spindle, automatic feed control
€5,150.00
Free shipping
Available, delivery time: 2-5 days
Description
Strands gearbox pillar drill, 25 mm drilling capacity, MK3 spindle, automatic feed control
Strands pillar drill 25 mm M - Premium quality "Made in Sweden"
TheStrands pillar drill 25 mm M combines Swedish engineering expertise with maximum precision and durability. This premium drill is ideal for professional use inWorkshops, metalworking companies and industry. With its robust design, smooth-running gearbox and automatic feed system, it offers the perfect combination of power, efficiency and reliability.
The tried and testedStrands gearbox is forMaximum torque and works with helical toothed gears made of steel in combination with reinforced fibre material. This high-quality interaction ensuresan extremely high degree of efficiency,Minimal noise level anda virtually maintenance-free service life. A realPremium drilling machine made in Sweden for all those who value quality, precision and reliability.
Advantages of the Strands pillar drill 25 mm M
- Drilling capacity Ø 25 mm - Ideal for precise metalworking
- Premium quality made in Sweden - Uncompromising manufacturing quality
- Helical gearbox - Ensures particularly quiet running and high torque transmission
- Automatic tool ejection - Quick and safe tool change
- Right/left rotation as standard - Perfect for thread cutting work
- Automatic quill feed (M) - Spindle returns automatically at the end of drilling
- Drill head can be swivelled 360 and height-adjustable for maximum flexibility
- High-performance spindle made from tool steel - Developed for extreme loads
- Solid cast iron table With T-slots and oil channel - maximum stability when working
- Table arm 360° rotatable and height-adjustable
- Hardened, ground drill column Made of steel - permanently precise and stable
- B = Bench/table model - Compact design for every workshop
- Low-maintenance gearbox - Long service life and reliability
Standard equipment
- Quick-action drill chuck 1-16 mm (B16)
- Cone mandrel MK3
- Automatic tool ejection
- Solid cast iron table with T-slots and oil channel
- Operating instructions / CE certificate
Technical data - Strands pillar drill 25 mm M
| Technical property | Value |
|---|---|
| Drilling performance in steel | 25 mm |
| Thread cutting performance | M20 |
| Spindle holder | MK 3 |
| Speed range | 105 - 2,900 rpm |
| Speed levels | 8 |
| Quill stroke | 135 mm |
| Quill feed stages | 4 |
| Quill feed | 0.10 / 0.15 / 0.22 / 0.30 mm/rev |
| Column diameter | 100 mm |
| T-slots, width | M14 mm |
| Spindle projection | 255 mm |
| Rotatable drilling table | ± 360° |
| Quill spacing base | 60 - 584 mm |
| Drilling table surface | 570 × 340 mm |
| Engine power | (2-stage) 650 / 900 W |
| Mains connection | 400 V / 50 Hz |
| Weight | 150 kg |
Conclusion
TheStrands pillar drill 25 mm M is a real professional tool for the highest demands. With its robust design, automatic feed function and first-class manufacturing quality, it is ideal for precise drilling and tapping. A reliable partner for long-lasting productivity -Made in Sweden.
Strands - Scandinavian precision for professional workshops and industrial companies.
