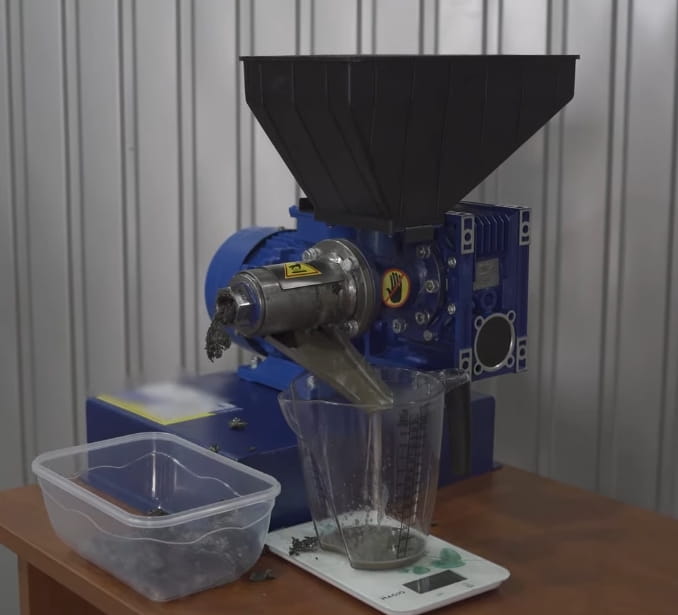

Spindle press for oil pressing - 230V / 1.5kW
€1,289.00
Available, delivery time: 2-5 days
Description
Spindle press for oil pressing - 230V / 1.5kW
Screw press for oil pressing - Professional cold oil press for the highest quality
TheScrew press for oil pressing is a professional machine, developed for theProduction of cold-pressed vegetable oil from various seeds. Thanks to its robust construction, precise technology and simple operation, it enables an output of up to6 litres of oil per hour - Ideal for agriculture, food businesses and private use.
Numerous materials are suitable as starting materialsOil plants such as rapeseed, milk thistle seeds, linseed, sunflower seeds (with husk), hemp, pumpkin, soya and many other seeds. In the case of special seeds, a freeTest run can be carried out in our showroom.
How the screw press works
The oil press works according to the classic principle of cold pressing:
- The pressed material runs through a flap into the spindle.
- TheSpindle crushes the seeds and feeds them into the pressing chamber.
- Generate in the chamberCylinder, pressing cone and adjusting nut the pressure.
- The oil exits through fine openings, while the press cake exits separately.
This process enables the extraction ofhigh-quality, cold-pressed oilwhich fully retains its natural vitamins, fatty acids and flavours.
Advantages of the screw press
- High performance: Up to 6 litres of oil per hour - outstanding in its class.
- Versatile in use: For numerous oilseeds such as rapeseed, linseed, sunflower, hemp, milk thistle, walnut and more.
- Cold pressing process: Preserves natural ingredients, flavour and shelf life of the oil.
- Simple operation: Intuitive controls and easy to clean.
- Durable and robust: Made from high-quality, resistant materials.
- Energy efficient: High productivity with low power consumption.
Included frequency inverter - efficiency and safety
The set contains a modernFrequency inverter for the 1.5 kW motor, which considerably extends the functionality:
- Softstart: Soft start prevents current peaks and protects the motor and electronics.
- Speed control: Adjustment of the speed depending on the seed and desired output.
- Overload protection: The inverter monitors the load and switches off automatically if necessary.
- Energy saving: Lower consumption, longer service life and lower operating costs.
Technical data - Screw press for oil pressing
| Product description: | Screw press for oil pressing |
| Type of goods: | Screw press for oil pressing |
| Use: | For pressing cold-pressed vegetable oil |
| Drive type: | Electric |
| Performance: | Up to 6 l/h |
| Engine power: | 1.5 kW |
| Tension: | 230 V |

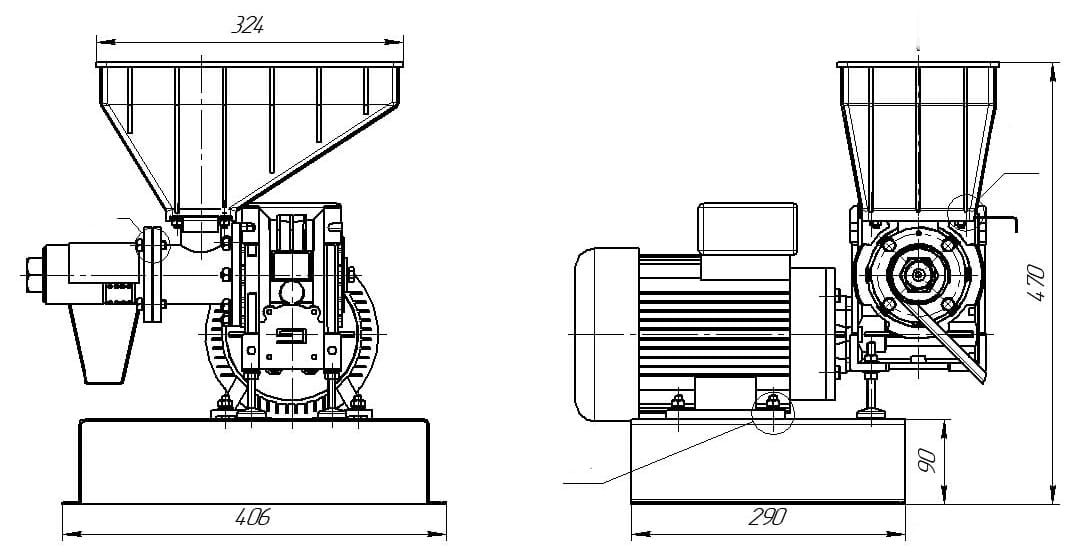

| Dimensions (L × W × H): | 530 × 410 × 470 mm |
| Weight: | 30 kg |
Performance overview by seed type
| Saart | Oil content | Recommended humidity | Amount of seed per litre of oil |
|---|---|---|---|
| Black cumin | 32-40 % | 3-5 % | 2.9-3.8 kg |
| Pumpkin | 35-48 % | 5-7 % | 2.38-3.5 kg |
| Hemp | 35-45 % | 5-7 % | 2.5-3.5 kg |
| Flax | 38-44 % | 4-6 % | 2.65-3.2 kg |
| Walnuts | 45-64 % | 4-6 % | 1.72-2.56 kg |
| Rapeseed | 38-47 % | 6-8 % | 2.45-3.15 kg |
| Sunflower | 40-50 % | 4-6 % | 2.3-2.95 kg |
| Soya | 18-24 % | 10 % | 5.5-8.4 kg |
| Grated coconut | 50-60 % | 3-5 % | 1.9-2.3 kg |
Areas of application
TheCold oil pressis ideal for:
- Food businesses and small manufactories
- Agricultural businesses
- Agrotourism and own production
- Production of edible oil, cosmetic oil or feed oil
Advantages of cold-pressed oil
- Preserves vitamins, fatty acids and bioactive substances
- Natural flavour and pleasant aroma
- Long shelf life without clouding or rancidity
- Press residues can be used as nutrient-rich animal feed
Conclusion
TheScrew press for oil pressing is the perfect solution for all those whoHigh-quality, cold-pressed oil efficiently, robustly and economically. It impresses with its strong performance, durability and precise workmanship - an investment in quality and sustainability.
Screw press for oil pressing - professional technology for natural oils!
