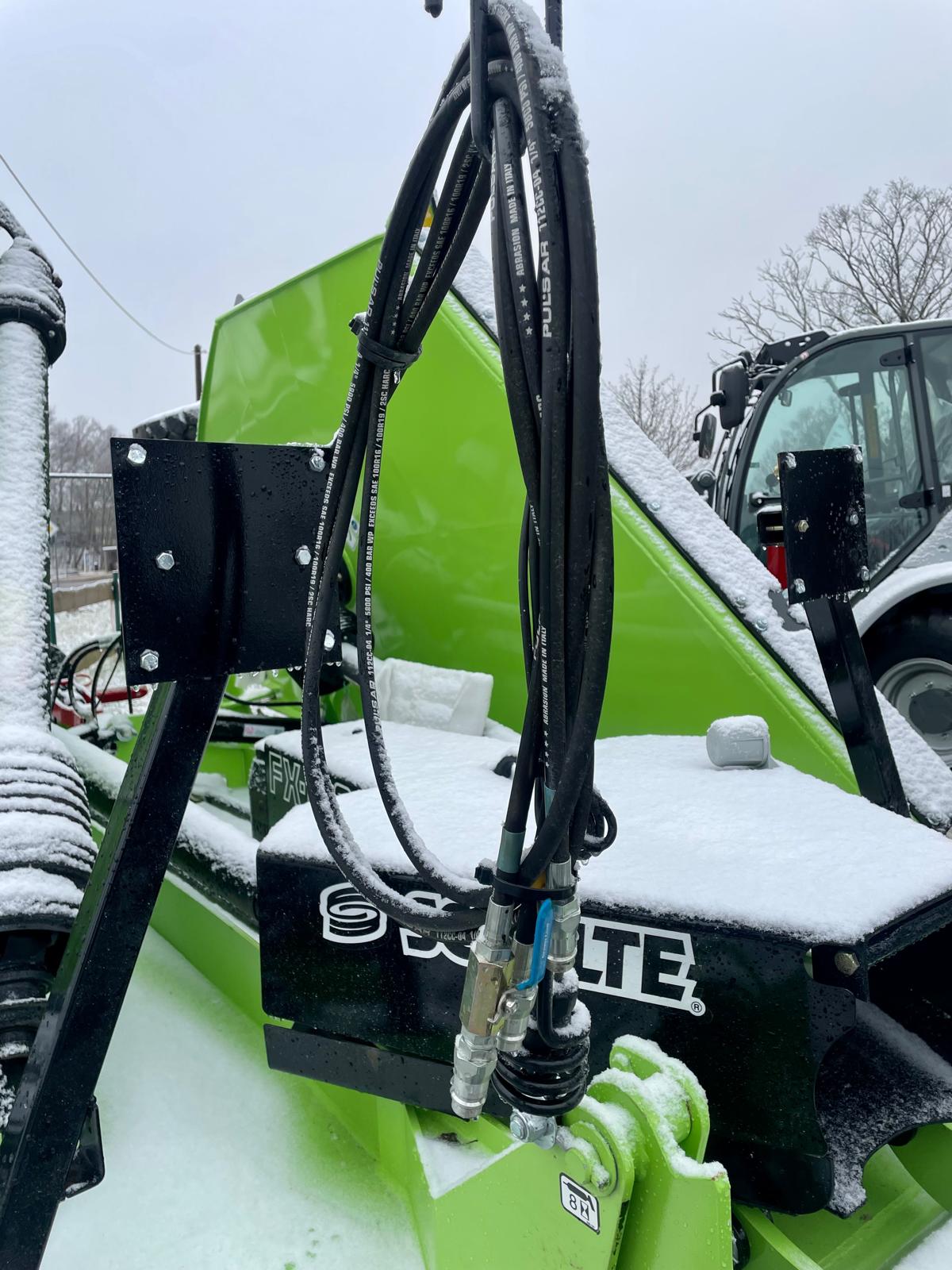

Sickle mower / sickle mulcher / rotary mower Schulte FX - 318
Description
Sickle mower / sickle mulcher / rotary mower Schulte FX - 318
Price incl. VAT!
Delivery possible!
Net price: 39,900 euros (plus 19% VAT)
Price VAT: 47.124 Euro (19% VAT)
The first 18-foot Flex-Wing rotary mower from Schulte has three rotor sets. A particularly narrow transport width makes transporting this machine extremely safe.
It is operated with the same tractor as most 15-foot Flex-Wings, but with an additional 910 mm cutting width.
An excellent choice for mowing crop residues, pastures, weeds, orchards and roadsides.
The curved 7-gauge deck keeps water and dirt out and increases the service life of the sickle mower deck by making it easy to clean.
Available with a 540 rpm or 1000 rpm 80° synchronised shaft drive or a 540 rpm constant-angle drive without synchronised shaft.
High-performance gearbox and drive system with turned 7-gauge stub jumper ensure durability and perfect balance on the sickle bar mower.
Technical data:
Cutting width: 5.5 m
Total width 5.8 m
Total length 5.3 m

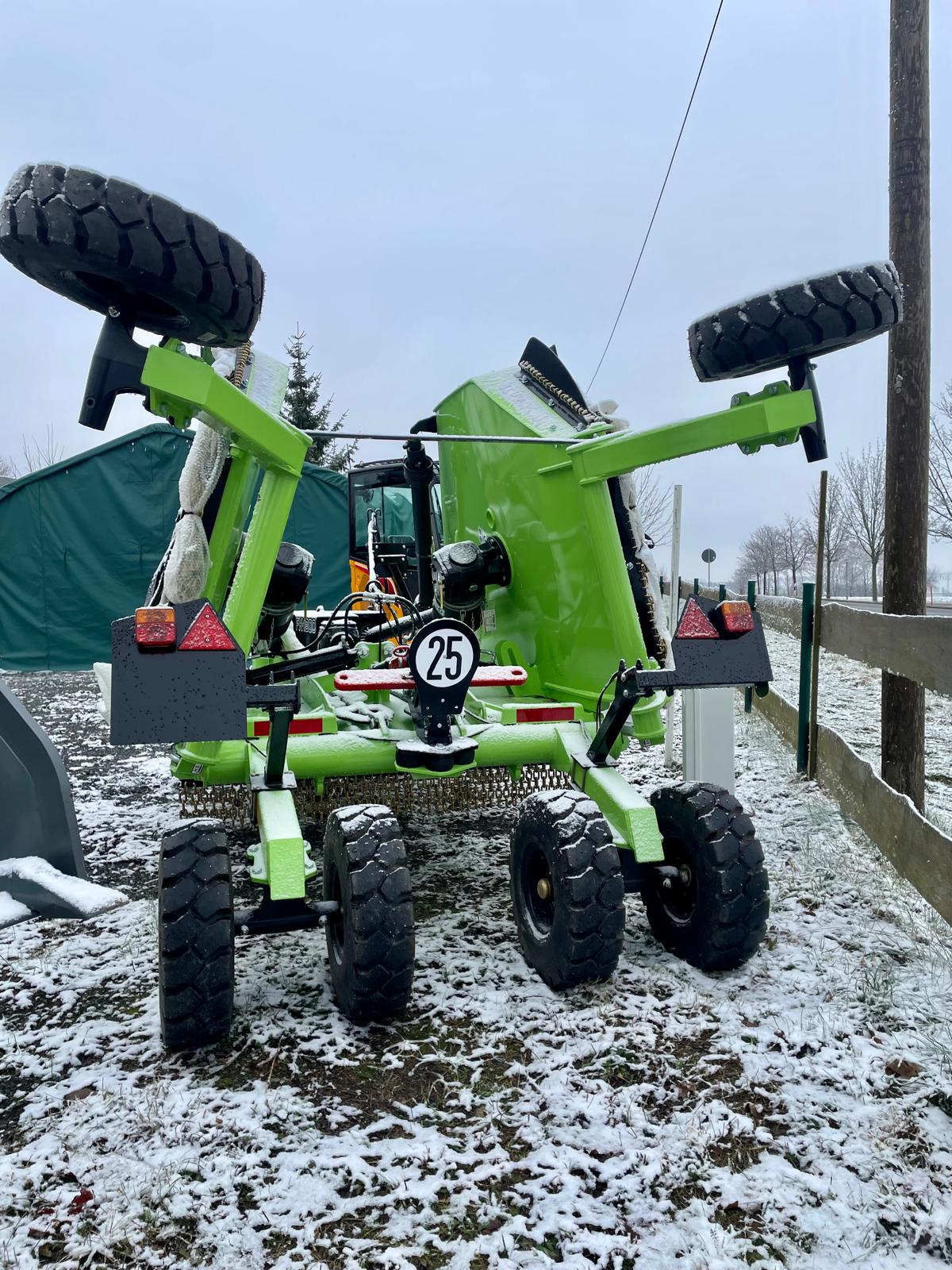

Transport width 2.2 m (single on wings) 2.4 m (double on wings)
Transport height 2.77 m
Thickness of the deck 7-gauge (4.6 mm)
Weight 2631 kg (depending on configuration)
Weight of the towbar 1066 kg (depending on configuration)
Minimum tractor horsepower 75 hp (56 kW)
Recommended tractor horsepower 90 hp (67 kW)
Tractor universal joint shaft speed 540 or 1000 rpm
Cutting height 44.5 mm to 425 mm
Ground clearance 42.5 mm
Cutting capacity 89 mm
Cutting edge overlap 152 mm
Divider gearbox class 260 hp (194 kW)
Centre and wing Gearbox class 225 hp (168 kW)*
Output shaft 60.3 mm
Cutting tip speed 540 rpm
Centre 4871 m/min
Wing 4974 m/min
Cutting tip speed 1000 rpm
Centre 4869 m/min
Sash 5054 m/min
Sash working range 25° downwards to 80° upwards
Vane float range 25° downwards to 30° upwards
Drive size Main element Cat.5 CV (1000 rpm), European size 6 / Cat.6 CV (540 rpm), European size 8
Drive size centre and sash category 6
Depth and thickness of the side skirt 346 mm 6.35 mm
Suspension 3-disc rubber seal
