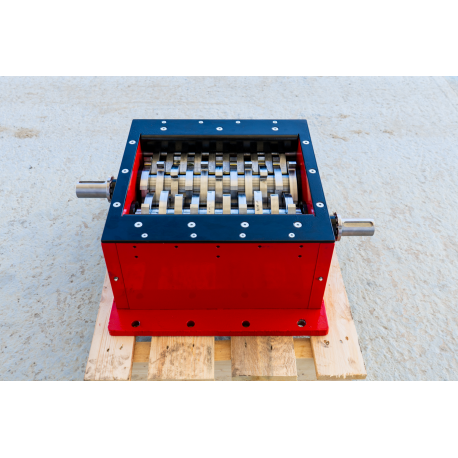

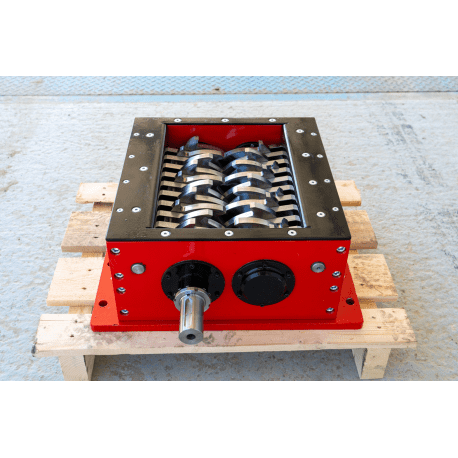

Shredder unit 400 x 415mm with 2 drive shafts
€2,215.00
brander.netTaxInformationWithoutShipping
Free shipping
Available, delivery time: 3-5 Tage
Product number:
BL26441
Description
Shredder unit 400 x 415mm with 2 drive shafts
Machining is carried out on a precision CNC machining centre to ensure the right quality, accuracy and coaxiality, which translates into a long service life for the components and the entire device. Specification:
Fully demountable structure (bolted) Two drive shafts Working chamber 400x415 mm
The chipper is equipped with a unique mounting system for spring-loaded counter blades, which ensures thorough cleaning of the space between the cutting blades.
Technical specifications
| Recommended motor power: | 2 x 5.5 kW |
| Knife diameter: | 176 mm |
| Blade thickness: | 18 mm |
| Blade tooth height: | 22 mm |
| Number of shredding knives: | 2 pcs |
| Number of knives on the shaft: | 11 pcs |
| Dimensions of the working chamber: | 400 x 415 mm |
| Weight of the mechanism: | 220 kg |
| Drive shaft diameter | 45 mm |
