Semi-automatic bagging scale BP600 - Container capacity 125L / 230V
€2,490.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Semi-automatic bagging scale BP600 - Container capacity 125L / 230V
Bagging scale BP - 125 litre container, 230 V | Semi-automatic weighing & filling system (1-50 kg)
TheBagging scales is for theWeighing and filling fromloose, fine-grained and non-adhesive products. The integratedElectronic scales covers a range from1-50 kg and fills prepared containersFoil bags,Paper bags orOpen containers - in thesemi-automatic Operation. After filling, the bags can be placed on additional equipment.welded orstitched become.
Your advantages at a glance
- Precise weighing: Electronic weighing range1-50 kg with target weight preselection.
- Process reliable & clean: optimised forfree-flowing Fine goods - low-dust filling.
- Flexible with containers: Suitable for pre-made bags (film/paper) and open containers.
- Simple operation: Semi-automatic,Single-phase connection 230 Vlow training costs.
- Compact & robust: Space-saving design with125 L Storage container.
Typical products
- Grains & cereals: Buckwheat, rice, oatmeal, etc.
- Food & enjoyment: Pasta,Coffee beans
- Energy & animal husbandry: Pellets
- Construction & Industry: Building mixtures (when using aunperforated screw conveyor)
Functional principle

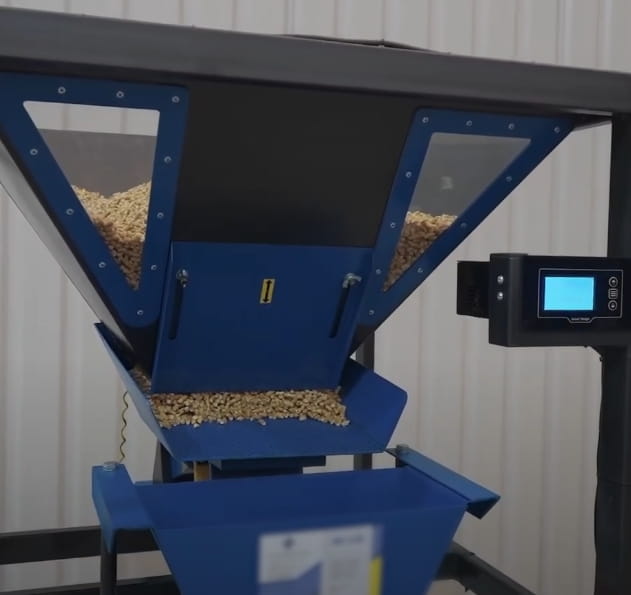

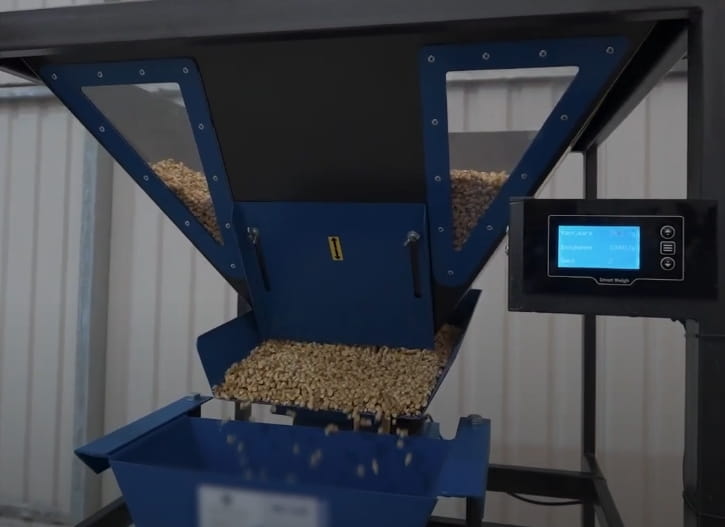

- Product feed into theWeighing box / the125 L Funnel.
- TheElectronic scales Automatically doses to the preset target weight(1-50 kg).

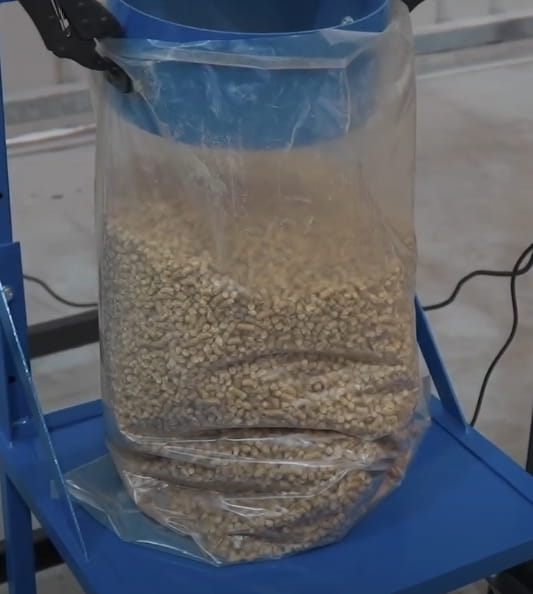

- Disposal in the bag/container provided in theSemi-automatic mode.
- OptionalBag closure by welding or sewing machine.
Technical data
| Model | Bagging scale BP (Wagopakowarka) |
| Weighing range | 1-50 kg (electronic scales) |
| Container/hopper volume | 125 L |
| Operating mode | Semi-automatic |
| Tension | 230 V, 1~ |

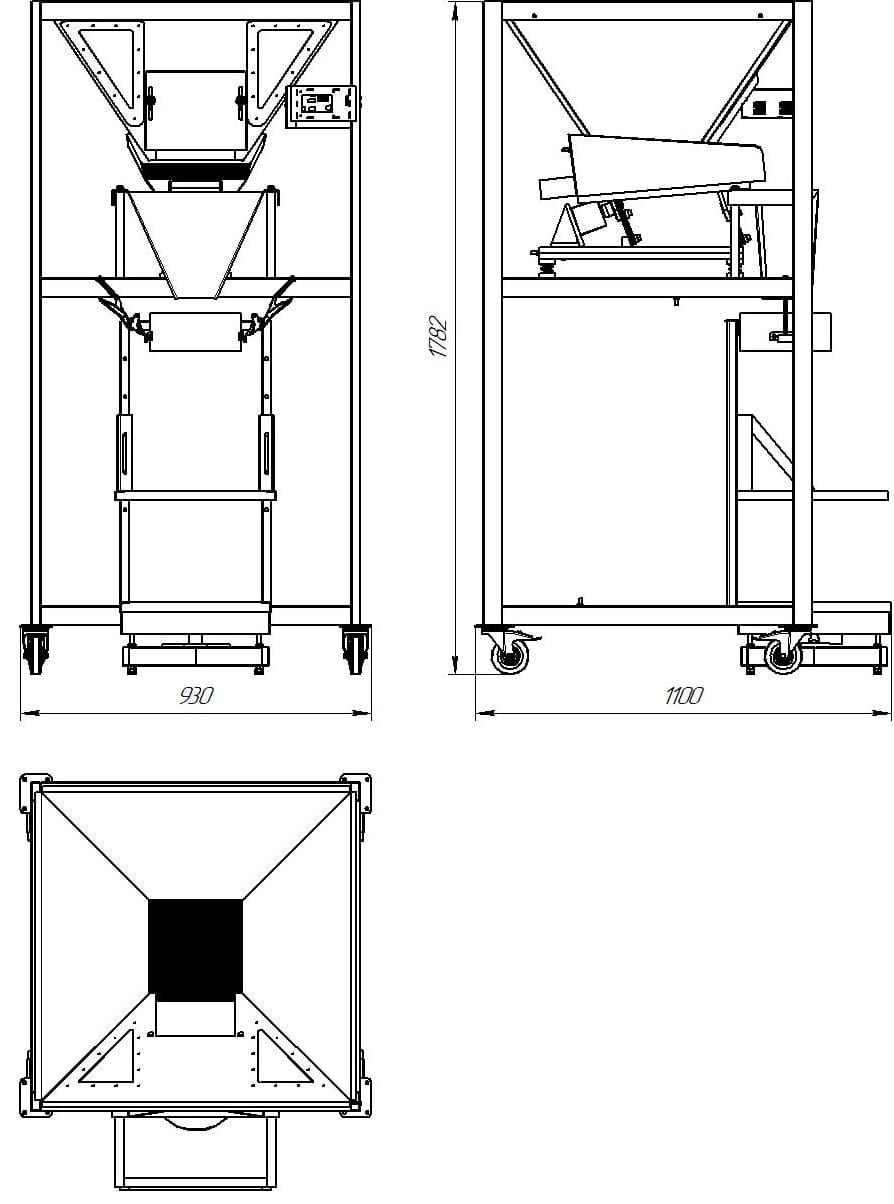

| Dimensions (L × W × H) | 1,110 × 930 × 1,785 mm |
| Dead weight | approx. 113 kg |
| Use | Filling of loose & fine-grained, non-adhesive products |
| Container | Pre-made bags (film/paper), open containers |
Scope of delivery
- Bagging scale BP - 125 L / 230 V with electronic scales
- Operating & safety instructions
Accessories (optional)
- Film sealer orBag sewing machine for closing the bags
- Unperforated screw conveyor for construction mixtures
- Extraction/dedusting module for highly dusty products
Practical & safety instructions
- Throughput depends on product flow, particle size, density and operation.
- Onlyfree-flowing andnon-adhesive Process materials.
- For dusty goods suitableSuction Provide for maintenance intervals in accordance with the instructions.
Why the bagging scales? Precise 1-50 kg weighing range, 125 litre capacity and simple semi-automatic operation - the compact, reliable solution for clean filling processes in agriculture, retail and production.
