Semi-automatic bagging scale 75L - 230V
€2,250.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Semi-automatic bagging scale 75L - 230V
Bagging scale 75 L - 230 V | Semi-automatic weighing & filling system for free-flowing bulk materials
TheBagging scale 75 L is for theWeighing and filling fromloose, fine-grained and non-adhesive products. The integratedElectronic scales works in the area of1-50 kg and fills prepared containersFoil or paper bags andOpen containers - in thesemi-automatic Operation. After filling, the bags can optionally bewelded orstitched become.
Your advantages at a glance
- Precise weighing: Electronic scales with1-50 kg Setting range.
- Fast cycle times: up to ~100 containers/h at 15 kg (product & operator dependent).
- Flexible containers: suitable forfinished bags (film/paper) andOpen containers.
- Simple operation: Semi-automatic control, 230 V connection, low operator requirements.
- Clean processes: optimised forfree-flowing Products - fine and loose materials.
Typical areas of application / products
- Food & Agriculture: Cereals (e.g. buckwheat, rice, oatmeal),Noodles,Coffee beans
- Energy & animal husbandry: Pellets
- Construction & Industry: Tree mixtures (When using a feeder without perforation)
Functional principle

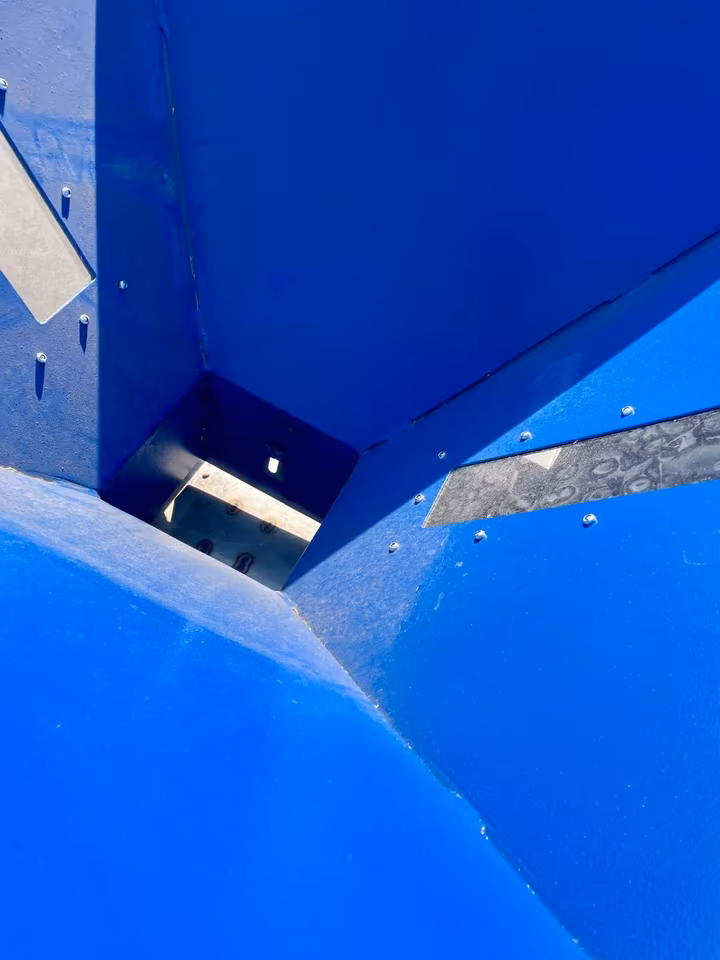

- Product feed into theWeighing box (funnel volume75 L).
- TheElectronic scales dosed to the preset target weight (1-50 kg).
- Filling into the bag/container providedin semi-automatic mode.
- OptionalBag closure using welding or sewing equipment (separate additional equipment).
Technical data
| Weighing range | 1-50 kg (electronic scales) |
| Productivity | approx. 100 containers/h at 15 kg (depending on guide value) |
| Container/hopper volume | 75 L |
| Operating mode | Semi-automatic |
| Connection / voltage | 230 V, 1~ |
| Engine power | 0.6 kW |
| Dimensions (L × W × H) | 1,600 × 730 × 2,030 mm |
| Suitable products | Free-flowing, fine & non-sticky bulk materials |
| Binding types | Ready-made bags (film/paper), open containers |
Scope of delivery
- Bagging scale 75 L - 230 V with electronic scales
- Operating & safety instructions
Accessories (optional)
- Film sealer resp.Bag sewing machine for closing the bags
- Customised feeder or hopper attachments for specific products
Notes
- Performance and cycle data depend on product flow, grain size, density and operation.
- Onlyfree-flowing andnon-adhesive Process materials.
- Provide suitable dust extraction/extraction for dusty products.
Why this bagging scale? Precise 1-50 kg weighing range, high cycle output and simple semi-automatic operation - the reliable solution for clean, efficient filling processes in production, retail and agriculture.
