Semi-automatic bagging scale 400L - 230V / 0.6kW
€2,490.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Semi-automatic bagging scale 400L - 230V / 0.6kW
Bagging scale 400 L - 230 V | Semi-automatic weighing & filling system for free-flowing bulk materials
TheBagging scale 400 L is for theWeighing and filling fromloose, fine-grained and non-adhesive products. An integratedElectronic scales covers the area1-50 kg and fills prepared containersFoil bags,Paper bags orOpen containers - in thesemi-automatic Operation. After filling, the bags can be placed on additional equipment.welded orstitched become.
Your advantages at a glance
- Precise weighing: Electronic scales with freely adjustable target weight of1-50 kg.
- High throughput: up to~100 packs/h at 15 kg (product & operator dependent).
- Large storage funnel: 400 L Container volume for long refill intervals.
- Flexible with containers: Suitable for ready-made bags (film/paper) and open containers.
- Simple operation: Semi-automatic,Single-phase connection 230 Vlow training costs.
Typical products
- Grains & cereals: Buckwheat, rice, oatmeal, etc.
- Food & enjoyment: Noodles,Coffee beans
- Energy & animal husbandry: Pellets
- Construction & Industry: Tree mixtures (when using aunperforated feeder)
Functional principle
- Product feed into theWeighing box / the funnel (400 L).
- TheElectronic scales doses automatically to the preset weight (1-50 kg).
- Disposal in the bag/container provided in theSemi-automatic mode.
- OptionalBag closure using welding or sewing equipment (accessories).
Technical data
| Weighing range | 1-50 kg (electronic scales) |
| Productivity | approx. 100 packs/h at 15 kg (reference value) |
| Container/hopper volume | 400 L |
| Operating mode | Semi-automatic |
| Connection / voltage | 220-230 V, 1~ |
| Engine power | 0.6 kW |

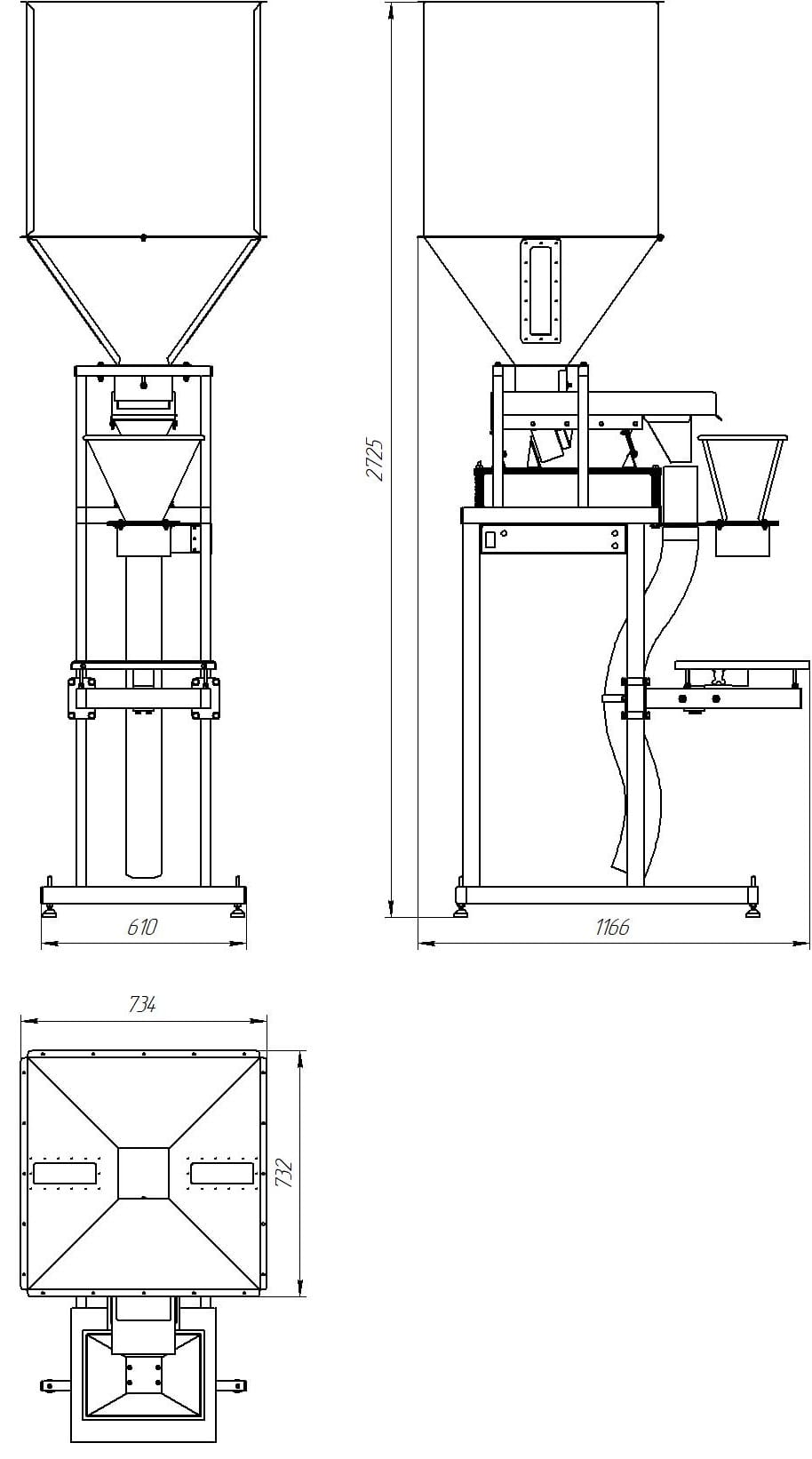

| Dimensions (L × W × H) | 1,160 × 730 × 3,030 mm |
| Dead weight | approx. 85 kg |
| Product type | Bagging scales (Wagopakowarka) |
| Utilisation | Filling of loose & fine-grained products |
Scope of delivery
- Bagging scale 400 L - 230 V with electronic scales
- Operating & safety instructions
Accessories (optional)
- Film sealer resp.Bag sewing machine for closing the bags
- Feeding and hopper attachments to match the product flow
- Extraction/dedusting module for dusty products
Practical & safety instructions
- Performance values depend on product flow, particle size, density and operation.
- Onlyfree-flowing andnon-adhesive Process materials.
- For dusty goods suitableSuction Provide for maintenance intervals in accordance with the instructions.
Why this bagging scale? Precise 1-50 kg weighing range, high throughput and 400 litre storage hopper - the reliable solution for clean, efficient filling processes in production, retail and agriculture.
