Screw press for oil extraction – cold oil press 16 l/h | High-quality oil press machine
€2,670.00
Free shipping
Available, delivery time: 2-5 days
Description

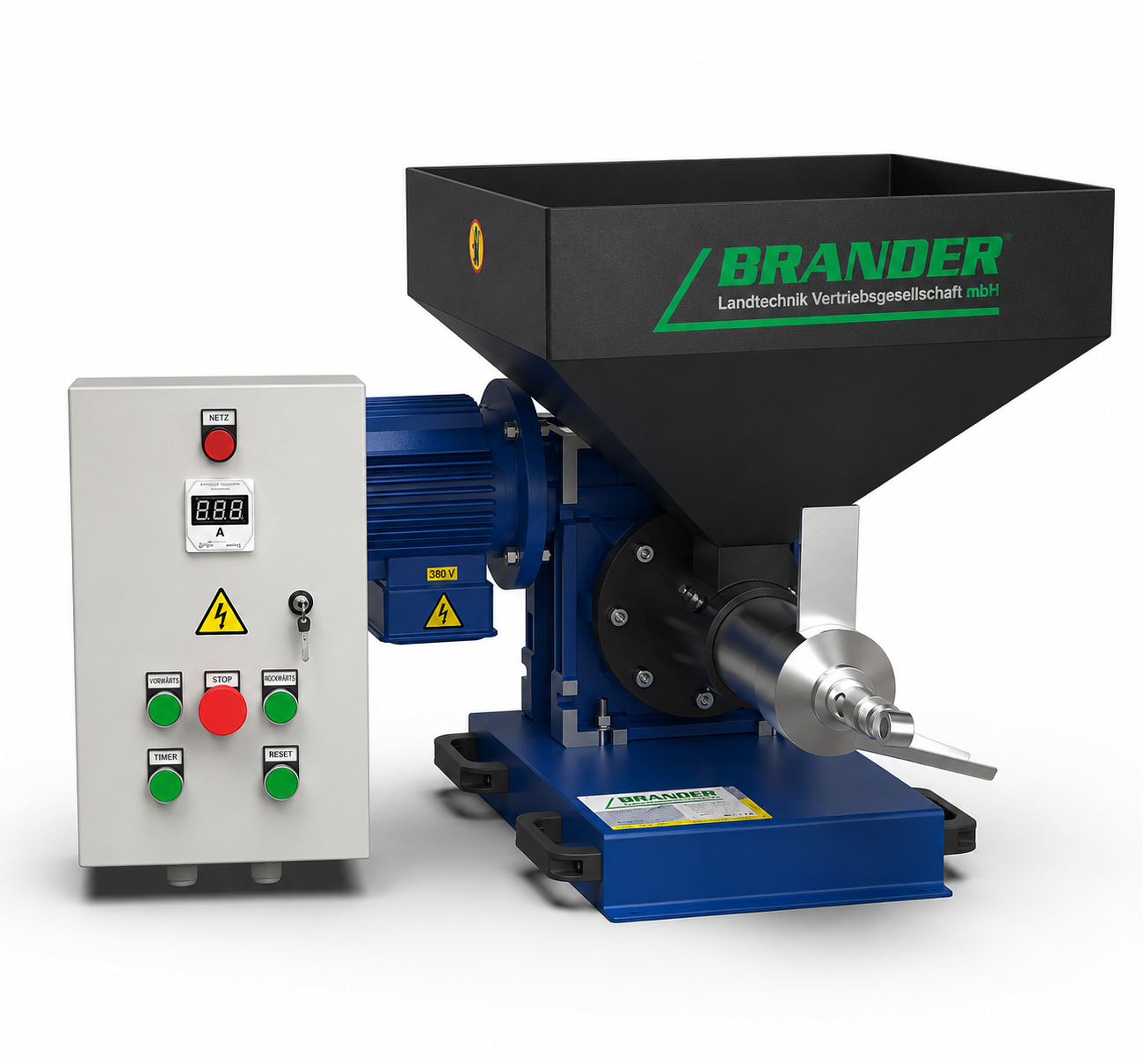

Screw press for oil extraction – cold oil press 16 l/h | High-quality oil press machine
Screw press for oil extraction - Professional cold oil press with a capacity of 16 litres per hour
TheScrew press for oil extraction is a high-performance machine designed for the production ofcold-pressed oil was developed from a wide variety of seeds. Thanks to its robust construction, simple operation and high efficiency, the press is ideal for farms, processing companies and lovers of natural products. With aOutput of up to 16 litres per hour it produces high-quality, nutrient-rich oils with full flavour and maximum preservation of valuable ingredients.
Healthy oil production using the cold pressing process
TheCold pressing ensures that the valuable vitamins, fatty acids and bioactive substances in the seeds are fully preserved. This produces natural, healthy oils with a high proportion ofOmega-3 and omega-6 fatty acids. Cold-pressed oils - especiallyLinseed oil andBlack cumin oil - promote healthy cholesterol levels and are unrivalled in taste and quality.
How the screw press works
- The seed is placed in the hopper.
- TheControl valve controls the flow of seeds to the screw conveyor.
- The auger crushes and transports the seeds into thePress chamber.
- High pressure forces the oil out, which is discharged via the outlet.
- TheDegree of extraction can be adjusted using the adjusting nut.
- The remaining press cake is automatically ejected - perfect for use as animal feed.
Advantages of the screw press
- High performance: Up to 16 litres of cold-pressed oil per hour.
- Natural oil quality: Rich in vitamins, fatty acids and bioactive substances.
- Long shelf life: The oil remains clear, does not become cloudy and does not develop a rancid flavour.
- Versatile in use: For rapeseed, linseed, milk thistle, sunflowers, pumpkin and many other oil plants.
- Efficient utilisation: The press residue (press cake) can be used as valuable animal feed.
- Robust construction: Durable construction made of high-quality materials for continuous operation.
- Control panel included: Clear control panel with ammeter for precise control of the working parameters.
Technical data
| Performance: | up to 16 litres per hour |
| Raw material processing: | 50 kg per hour |
| Engine power: | 3 kW |
| Power supply: | 380-400 V |
| Dimensions (L × W × H): | 700 × 450 × 680 mm |
| Weight: | 121 kg |
| Control: | Control panel with ammeter |
| Pressing process: | Cold pressing |
Oil yield depending on seed type
| Seed type | Oil content | Moisture | Quantity per litre of oil |
|---|---|---|---|
| Black cumin | 32 - 40 % | 3 - 5 % | 2.9 - 3.8 kg |
| Pumpkin | 35 - 48 % | 5 - 7 % | 2.38 - 3.5 kg |
| Linseed | 38 - 44 % | 4 - 6 % | 2.65 - 3.2 kg |
| Rapeseed | 38 - 47 % | 6 - 8 % | 2.45 - 3.15 kg |
| Sunflower | 40 - 50 % | 4 - 6 % | 2.3 - 2.95 kg |
| Almonds | 45 - 55 % | 4 - 6 % | 2.0 - 2.6 kg |
| Hazelnut | 55 - 60 % | 4 - 6 % | 1.85 - 2.05 kg |
| Walnut | 45 - 64 % | 4 - 6 % | 1.72 - 2.56 kg |
| Milk thistle | 20 - 30 % | 5 - 7 % | 4.2 - 7.0 kg |
| Grated coconut | 50 - 60 % | 3 - 5 % | 1.9 - 2.3 kg |
Areas of application
- Agriculture: Production of edible oils from the farm's own seeds.
- Food production: Cold pressing of high-quality oils for sale.
- Household & direct marketing: Production of healthy oils for personal use or sale.
- Animal feed processing: Utilisation of the press cake as natural animal feed.
Conclusion
TheScrew press for oil extraction is the ideal solution for anyone who wants to produce high-quality vegetable oils in a natural way. With an output of up to 16 litres per hour, its robust design and versatility guarantee efficient, long-lasting and environmentally friendly production.
Screw press for oil extraction - for pure, healthy and natural oil.
