Schulte FX1800 sickle mower – 4.5 m Flex-Wing professional mulcher
Schulte sickle mower FX1800 - 4.5 m Flex-Wing high-performance mulcher
The Schulte FX1800 is a professional 15-foot flex-wing rotary mower designed for the most demanding agricultural and municipal applications. With a continuously welded 7-gauge deck, powerful gearboxes and extremely robust construction, the FX1800 offers maximum efficiency, low maintenance and exceptional durability.

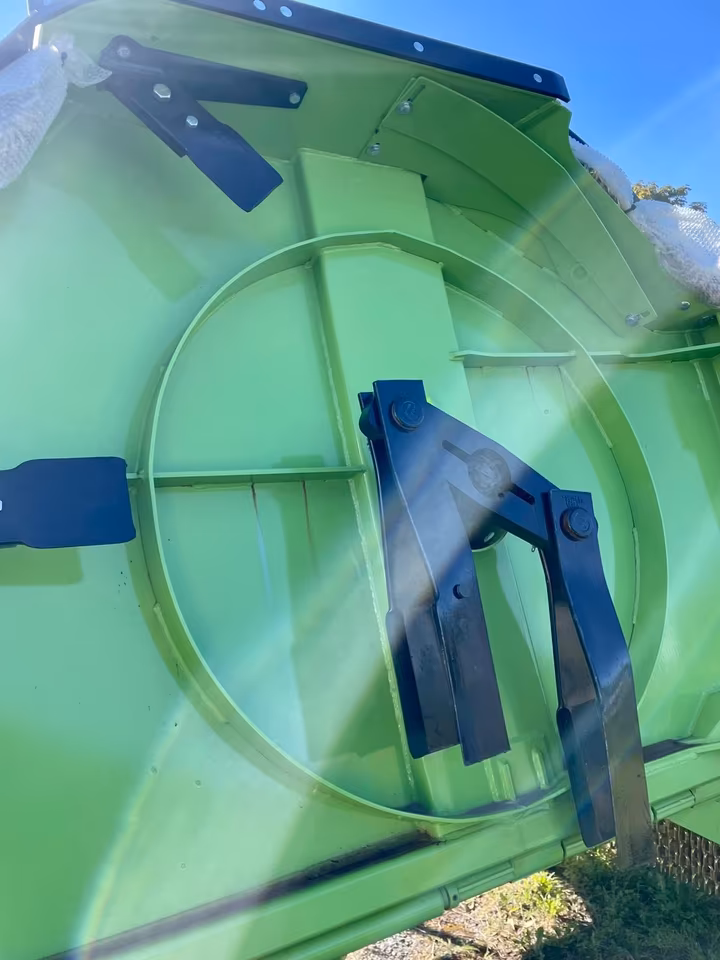

Design & construction
- Curved, continuously welded 7-gauge deck (4.6 mm) prevents water accumulation and rust
- Very easy to clean design
- 165 mm cutting edge overlap for a clean cut
- High cutting tip speed for optimum shredding
- Moulded 7-gauge stump jumper (round runners) for maximum durability
Drive train & transmission
- Four-gear system with independent slipping clutches
- Bondioli high-performance gearbox
- Splitter gearbox with 44.5 mm 20 splines - designed for 260 hp (194 kW)
- Centre and wing gearbox designed for 225 hp (168 kW)
- 80° synchronised shaft for smooth running in tight bends
- 540 rpm: Category 6 / 1000 rpm: Category 5
- Self-adjusting friction clutches, protected under the main shield
Working range & performance
- Cutting width: 4.57 m
- Cutting height: 44.5 mm to 425 mm
- Cutting capacity: up to 101.6 mm material diameter
- Cutting tip speed at 540 rpm: Centre 4871 m/min, blade 4711 m/min
- Cutting tip speed at 1000 rpm: Centre 4869 m/min, blade 4788 m/min
- Sash operating range: 25° downwards to 87° upwards
- Sash float range: 25° downwards to 30° upwards
Compatibility & requirements
- Minimum tractor power: 50 hp (37 kW)
- Recommended power: 85 hp (63 kW)
- PTO speed: 540 or 1000 rpm
Dimensions & weight
- Total width: 4.83 m
- Total length: 5.13 m
- Transport width (single): 2.36 m
- Transport width (double): 2,59 m
- Transport height: 2.13 m
- Ground clearance: 42.5 mm
- Weight: approx. 2540 kg (depending on configuration)
- Drawbar weight: approx. 762 kg
Further technical features
- 3-disc rubber sealing system for smooth running
- Side skirt height: 346 mm, thickness: 6.35 mm
- Tyre options: Laminated aircraft tyres (5 screws), size 22"
The Schulte FX1800 is an extremely powerful and robust sickle mower for large-scale mulching work under the toughest conditions. Ideal for agriculture, municipalities, contractors and demanding professional applications.
