Schulte FX-742 sickle mower – the world's largest sickle mower | 12.80 m cutting width
Description
Schulte FX-742 sickle mower – the world's largest sickle mower | 12.80 m cutting width
Schulte FX-742 sickle mulcher - maximum performance over a working width of 12.80 m
With theSchulte sickle mower FX-742 the largest sickle mower in the world is at your disposal. Its giganticWorking width of 12.80 m enables the mulching of areas that would have previously previously required the use of two or three machines. This saves time, fuel and machine costs - ideal for ideal for agriculture, large farms and contractors.
The sophisticated5-plex flex construction offers maximum working width combined with compactTransport width of only 3 m. High-quality Bondioli & Pavesi drive components and reinforced reinforced gearboxes ensure extreme durability and reliability under the toughest conditions.
The FX-742 can be used withStump jumper for pastures or with the Baffle blade system for straw, corn or cotton stalks. Thanks to compatible cutting arrangement, it is ideal for row crops with762, 813, 965 and 1016 mm.
Main advantages of the Schulte FX-742
- Gigantic cutting width of 12.80 m - maximum area coverage

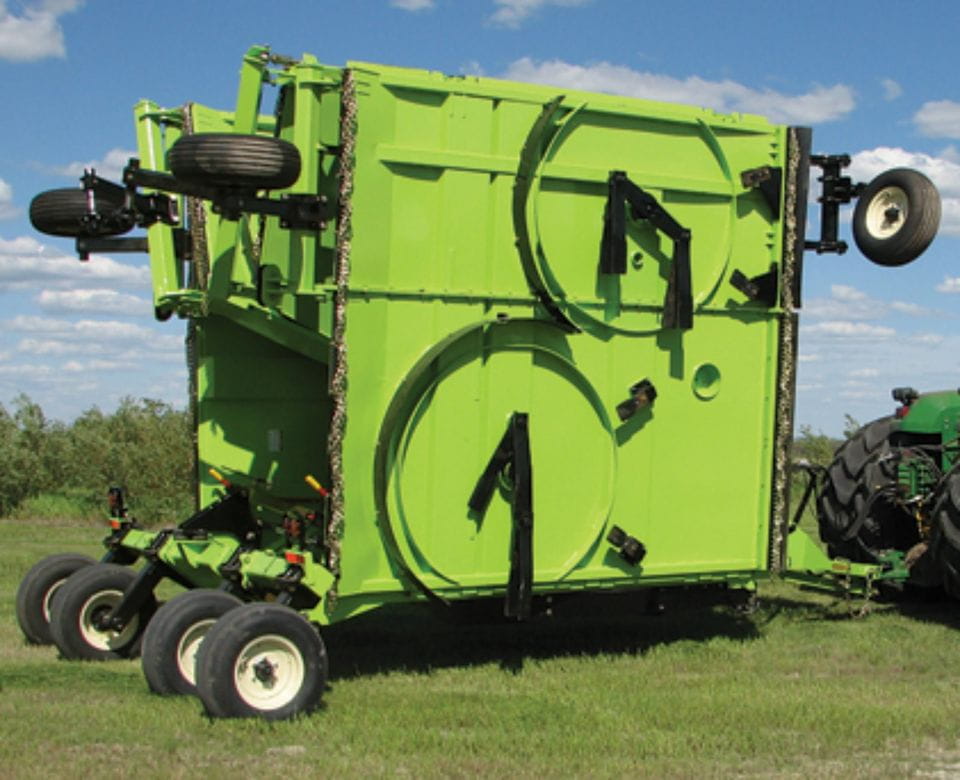

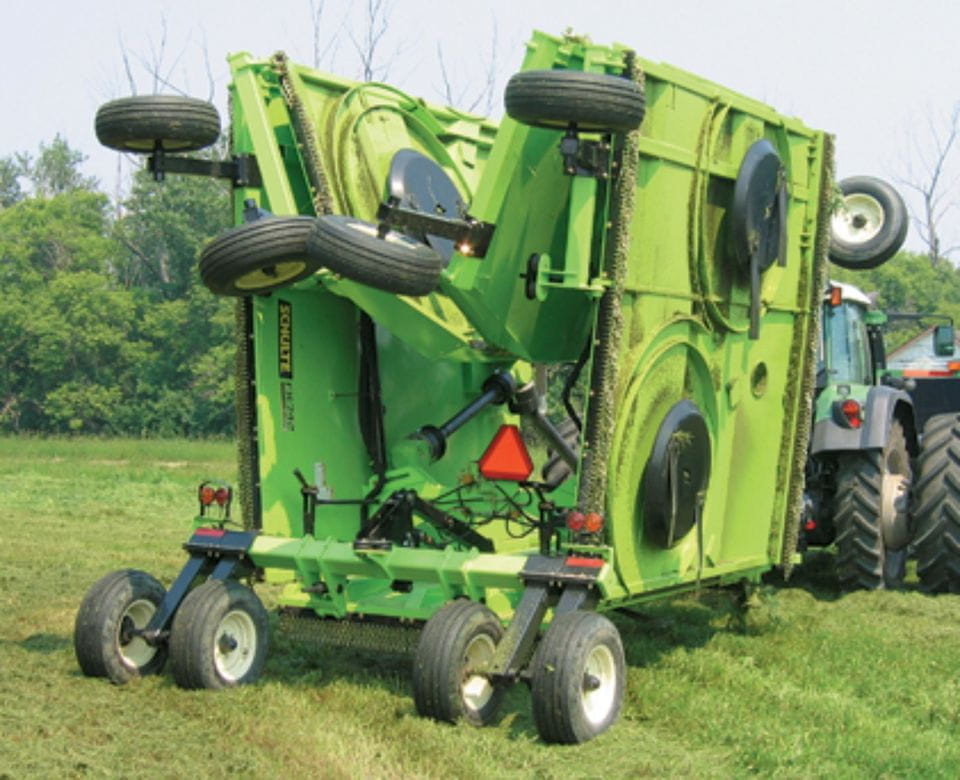

- Transport width only 3 m thanks to 5-plex design
- Extremely robust Bondioli & Pavesi drive system
- Customised clutch guard for each rotor
- High-strength HB cover construction, fully welded
- Suitable for intensive stubble cultivation and pasture maintenance
- Compatible for different row spacings
- Solid rubber suspension for smooth running and a clean cutting pattern
Technical data
| Cutting width: | 12,80 m |
| Total width: | 13,10 m |
| Total length: | 7,40 m |
| Cutting height: | 51-406 mm |
| Transport width: | 3 m |
| Transport height: | 4,20 m |
| Weight: | 8165 kg (depending on configuration) |
| Power requirement: | at least 250 hp (186 kW) |
| Cutting tip speed: | 4970 m/min |
| Deck thickness: | 10-gauge (3.4 mm) |
| Apron thickness: | 6.4 mm |
| Transmission main box: | 350 hp (261 kW) Rating |
| Sub-transmission: | 210 hp (157 kW) |
TheSchulte FX-742 is the ultimate solution for extreme area performance, maximum efficiency and maximum durability - in a class of its own.
