PRONAR T185/1 Hooklift Trailer – 15 t Gross Weight, Tandem, Hydraulic, for Agriculture & Construction

PRONAR T185/1 hook lift trailer - Versatile hook lift for agriculture, construction & municipal technology

TheHook lift trailer PRONAR T185/1 is a further developed version of the proven PRONAR T185 and has been designed for versatile use inAgriculture, construction andMunicipal technology designed. Its robust construction, the high load capacity of up to12 tonnes and modern hydraulics make it the ideal transport trailer for a wide range of applications. Thanks to its sophisticated design, the trailer can be used with tractors with a power output of78 HP be operated.

The improved control system and intelligent hydraulic configuration reduce the connection requirement to just three hydraulic connections on the tractor. With a comprehensive safety system - consisting of interlocks, signalling and control units - the PRONAR T185/1 is not only powerful, but also particularly user-friendly and safe to use.

Top advantages of the PRONAR T185/1

• High payload - up to 11,900 kg load.
• Universal application possibilities - for agriculture, the construction industry and municipal tasks.
• Robust construction - durable, stable and low-maintenance.
• Flexible container holder - Compatible with containers to DIN 30722.
• Efficient hydraulics - Only 3 hydraulic connections required.
• High tilt angle - up to 46° for easy unloading.
• Hydraulic rear axle support - Stable stand during loading and unloading.
• Safe working - automatic container locking, LED lighting and warning systems.
• Versatile configuration - available with numerous optional extensions.

Technical data

Standard equipment

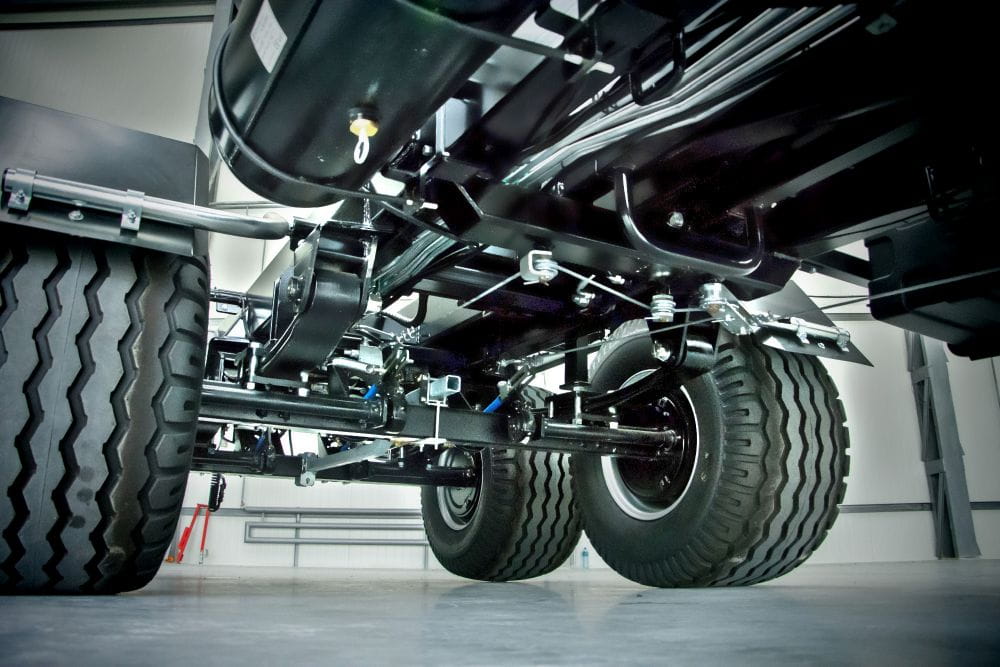

• Tandem running gear with parabolic suspension (centre distance 1325 mm)
• Rigid axles with drum brakes (300×135 mm)
• Bottom hitch with rigid drawbar and Ø40 mm towing eye
• Hydraulic support leg with ball valve
• 2-wire air brake with manual brake force regulator
• Crank brake
• Automatic container locking with two hook heights (1450 / 1570 mm)
• Hydraulic tipping system with mechanical adjustment
• Hydraulic rear axle support
• LED lighting system (12 V) with side marker lights
• Illuminated display panel for tilt/set-down functions
• Rear lights with protective grille
• Wedges with holder
• Metal mudguard
• Mechanical, adjustable rear underride guard
• Paint finish: Black RAL 9005 PRONAR

Optional equipment

• Swivelling towing eye Ø50 mm or ball coupling K80 mm
• Telescopic support leg (optionally with gearbox)
• Hydraulic hook/tilt changeover with container lock (4 hydraulic connections)
• Electro-hydraulic control (5 functions)
• Own hydraulic system with PTO shaft and oil tank
• Rear hydraulic connections & additional connections on the hook
• Air brake with ALB or WABCO Premium
• Two flashing warning lights at the rear
• Toolbox, plastic or aluminium mudguards
• Side underride guard
• V.Orlandi trailer coupling (manual or automatic)
• Warning triangle for slow vehicles
• Tyres of your choice: 385/55R22.5 | 520/50-17 | 500/50R17
• Spare wheel (optional)

Areas of application

ThePRONAR T185/1 is versatile and can be used in:

• Agricultural businesses (transport of harvested crops, silage, manure, etc.)
• Municipal companies (waste transport, container exchange)
• Construction industry (rubble, building materials, earthworks)

Conclusion

With theHook lift trailer PRONAR T185/1 you get a modern, robust and efficient multi-purpose trailer for professional requirements. Its versatility, high load capacity and expandable equipment make it an indispensable work tool in agriculture, municipal services and the construction industry.

PRONAR T185/1 - powerful, reliable and flexible in every application!
