PRO pellet press 860 kg/h | 45 kW industrial granulator | Biomass & animal feed
€15,950.00
Free shipping
Available, delivery time: 1-2 weeks
Description

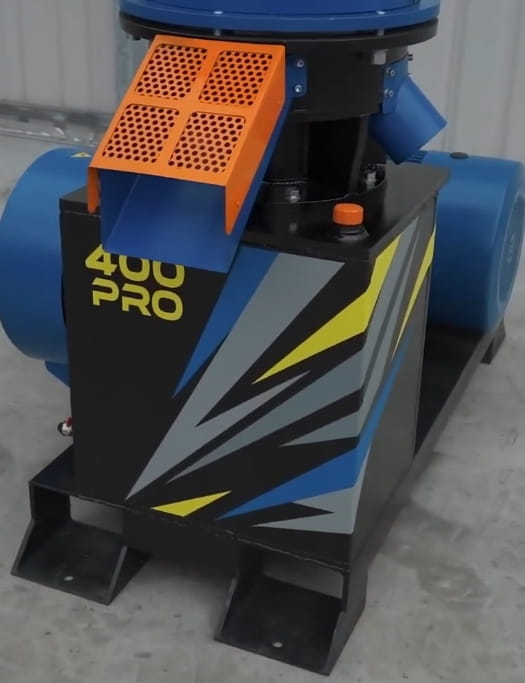

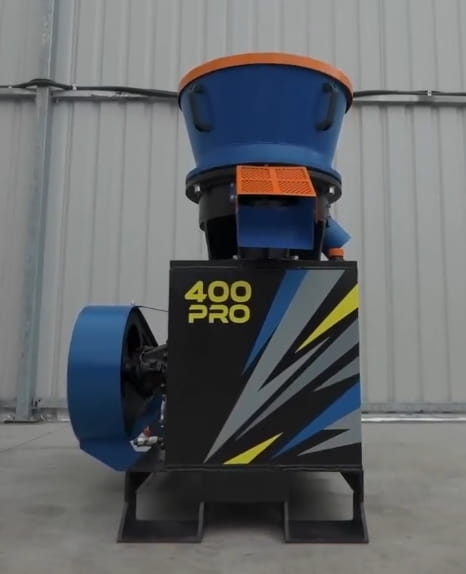

PRO pellet press 860 kg/h | 45 kW industrial granulator | Biomass & animal feed
Pellet press PRO up to 860 kg pellets per hour - 45 kW, 400 V
ThePRO pellet press with 45 kW three-phase motor is an ultra-modern, industrial machine for producing pellets and of pellets and pressed feed from a wide variety of raw materials. With four powerful rollers with a diameter diameter of 178 mm, an extremely robust design and an integrated frequency inverter this machine is ideal for continuous professional operation.
Thanks to the larger motor, the increased number of rollers and the optimised power transmission, the machine achieves aOutput of up to 860 kg/h - and thus one of the highest production capacities in its class. It is designed for agricultural operations, animal feed plants, biomass plants and wood processing companies that require maximum efficiency and reliability.
Processable raw materials
- Grain and feed mixtures
- Straw, hay, herbs and grass mixtures
- Softwood and hardwood chips
- Sunflower husks and agricultural by-products
- Grist, bran, feed components
- Wood waste and biomass
- Plastics such as PP, film residues and sacks
Die & pellet lengths
- Die diameter: 400 mm
- Hole size: 2-8 mm (selectable)
- Pellet length: 2-60 mm (adjustable cutting blade)
- Mould can be used on both sides made of hardened steel 40X (hardness 55 HRC)
Performance*
- Feed mixtures: up to 700 kg/h
- Wood shavings: up to 750 kg/h
- Straw / hay: up to 700 kg/h
- Sunflower husks: up to 700 kg/h
*The performance depends on moisture, composition, material density, machine condition, feed and settings. and settings.
Advantages of the PRO pellet press

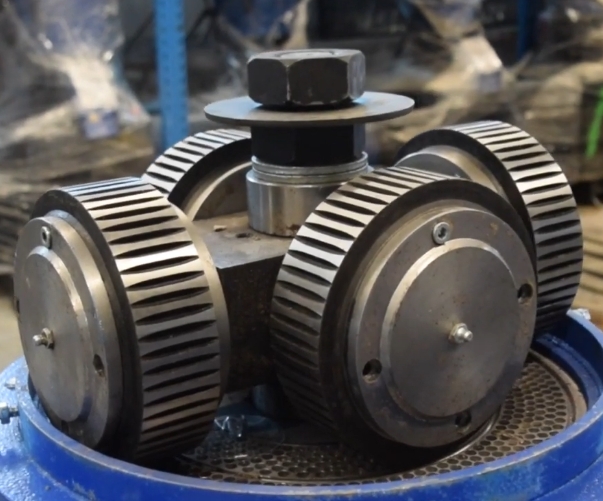

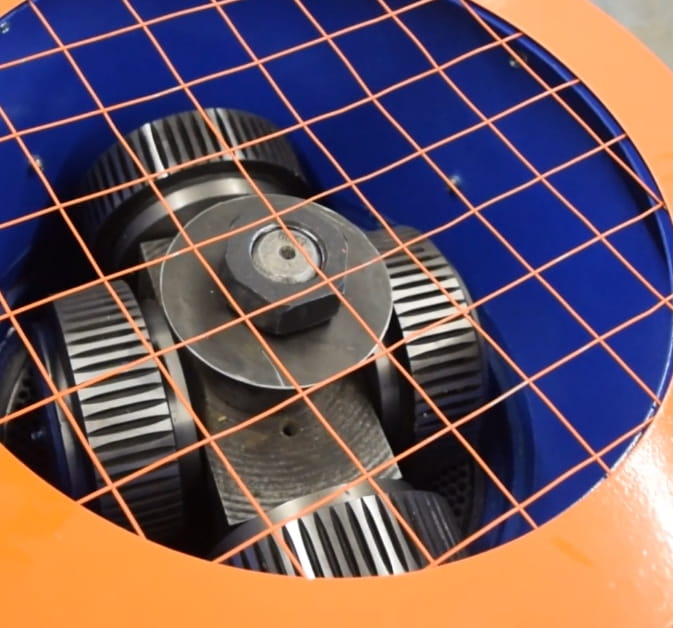

- Four moving rollers for maximum pressing force and maximum production output

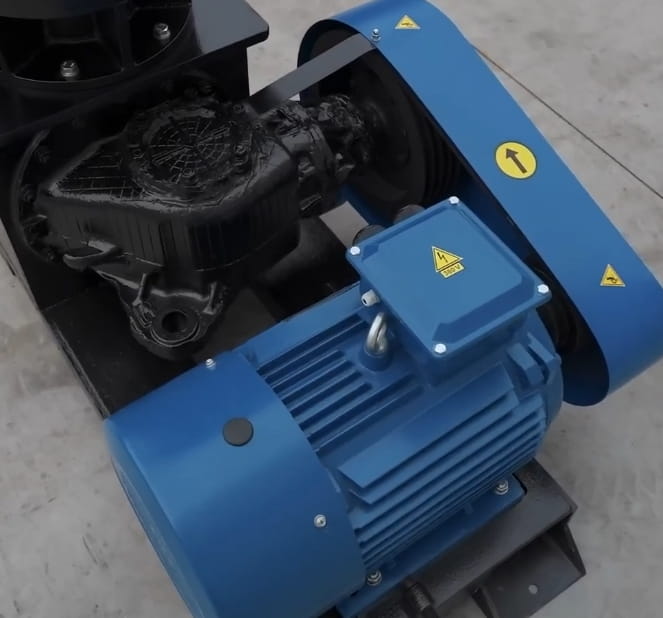

- 45 kW three-phase motor - Ideal for up to 16 hours of continuous operation
- Frequency inverter for speed control, motor protection and energy saving
- Robust industrial gearbox - Developed for hard raw materials and continuous load
- High-quality materials - Hardened steel dies and rollers (40X, 55 HRC)
- Very high pellet quality thanks to optimised pressing pressure
- Vibration-resistant steel construction for professional production lines
- Pelletising even hard types of wood possible without any problems
- Safety control panel with ammeter and motor temperature monitoring
- Long service life - Average die service life approx. 70 tonnes
Areas of application
- Biomass plants and pellet factories
- Agricultural businesses
- Feed mills and livestock farms
- Sawmills and wood processing plants
- Small and medium-sized pellet production companies
- Recycling and plastics processing
Advantages of the frequency inverter
- SoftstartReduction of the starting current & protection of the electrical installation
- Speed controlOptimum adaptation to material and desired pellet quality
- Protective functions: Overload protection & automatic switch-off
- Energy saving at partial load
- Less wear and tear of motor and gearbox
Technical data
- Speed of the rollers: adjustable
- Motor: 45 kW, 1500 rpm
- Number of crushing knives: 2 pieces
- Die openings: 2-8 mm
- Die diameter: 400 mm
- Roller diameter: 178 mm
- Roll width: 48 mm
- Number of rollers: 4 pieces
- Dimensions (L × W × H): 1530 × 830 × 1265 mm
- Weight: 950 kg
Scope of delivery
- Pellet press PRO - 1 piece
- Operating instructions - 1 piece
- Frequency inverter 45 kW - 1 piece
- Rollers - 1 piece
- Die - 1 piece
- Assembly spanner for rollers - 1 piece
Note: The mains cable is not included in the scope of delivery.
The PRO pellet mill offers maximum efficiency, reliability and production flexibility. It is the ideal choice for professional operations that want to process large quantities of biomass or animal feed economically and consistently.
