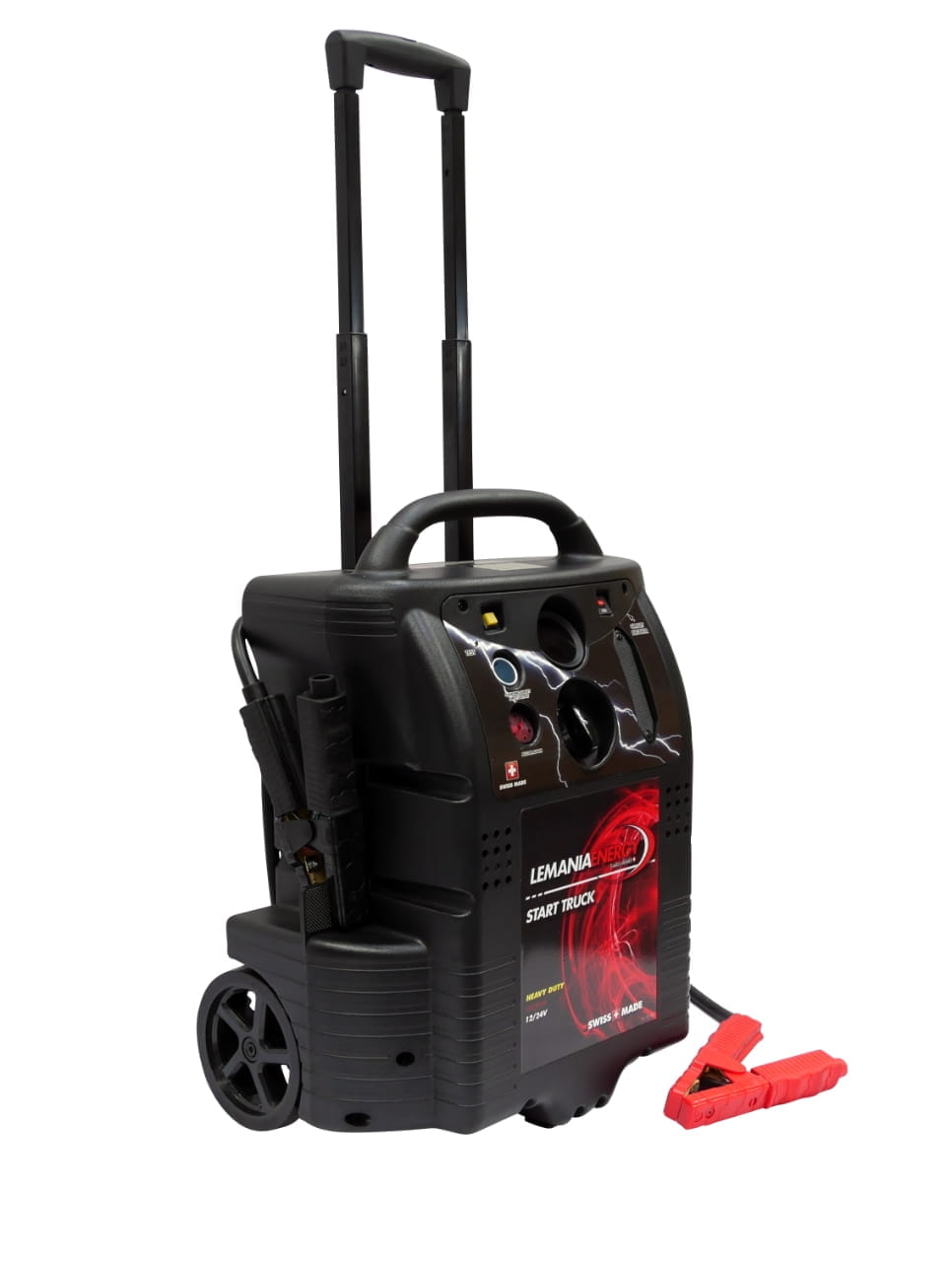

Power station / jump starter 12/24V - START TRUCK TROLLEY 6400/3200 Ampere mobile

Description

Power station / jump starter 12/24V - START TRUCK TROLLEY 6400/3200 Ampere mobile

incl. automatic charger for 12/24 volts (14-225Ah/14-110Ah) with charging cable incl. 12VDC on-board power supply plug & charging cable incl. pole terminals
The advantages of all energy stations at a glance:- Extremely portable and mains-independent- Ideal for jump starting and power supply wherever- No improvisation with jumper cables that are too short- Problem solution for starting cars, boats, motorhomes, etc. Alternative energy source when changing batteries: simply connect to the cigarette lighter, stored information from the radio and on-board computer is no longer lost- Can be charged via mains charger or 12 V cigarette lighter- Charge status indicator via LED (Start Booster) or display (Start Truck)- Also excellent as a portable power source for lighting, telephone, radio, TV, cool box, etc.- All models with voltage peak protection
12 and 24 volt switchable therefore even more versatile
e.g. also for lorries, buses, excavators and construction machinery
Extremely high performance
Incl. 7A automatic charger can also be used for vehicle batteries (WET/PB, MF, GEL, AGM, Ca/Ca) (12V: 14 -150 Ah / 24 V: 14-75 Ah)

max. current: 6400 / 3200A
Internal battery (gas-tight lead-acid battery) / Volt: 12 / 24
Internal battery (gas-tight lead-acid battery) / ampere hours: 2 x 12 / 33
Internal battery (gas-tight lead-acid battery) / I-Start: 2340 / 1170A
Charging voltage: 25.2 / 14.9V
Service life: 400 cycles
Copper cable Ø / length: 50 / 165 / mm² / cm
Protection against voltage peaks: Yes
Short-circuit protection: Yes
Fuse against reverse polarity: Yes
Fuse: 1000A
Dimensions: 350x320x550mm
Weight: 32kg
Country of origin: CH
Parcel service capable: NO
