Pellet press 700 kg/h diesel | Mobile granulator 30 hp | Professional biomass & feed pellets
€11,490.00
Free shipping
Available, delivery time: 1-2 weeks
Description

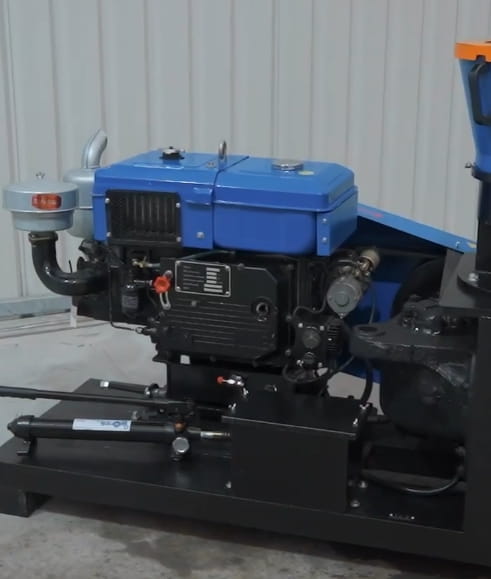

Pellet press 700 kg/h diesel | Mobile granulator 30 hp | Professional biomass & feed pellets
Pellet press up to 700 kg of pellets per hour - with powerful 30 hp diesel engine
ThePellet press with 30 hp diesel engine is the mobile and particularly efficient version of a modern pelletiser for the production of pelletised animal feed and biomass heating pellets. Thanks to the powerful combustion engine the machine works completelyIndependent of the power grid and is therefore ideally suited for agricultural farms, outdoor sites, forest areas, sawmills and mobile applications.
The robust construction, twoMovable rollers with 148 mm diameter and a High-quality mould with 300 mm diameter ensure impressive efficiency even with hard or demanding raw materials.
Processable materials
- Softwood and hardwood chips
- Sunflower husks
- Straw, hay, grass, herbs
- Feed mixtures for different animals
- Grain waste
- Plastics such as PP, PVC, films and bags
Thanks to the high pressing force, it is even possible to process less lignin-containing materials - a decisive advantage over many standard pellet mills. advantage over many standard pellet presses.
Output of the pellet mill*
- Feed mixtures: up to 400 kg/h
- Wood shavings: up to 350 kg/h
- Straw / hay: up to 350 kg/h
- Sunflower husks: up to 380 kg/h
- Grain waste: up to 350 kg/h
*Actual performance depends on raw material parameters, material moisture, machine settings and operator experience.
Advantages of the pellet mill with diesel engine
- 30 hp diesel engine - High performance, ideal for continuous operation without a power connection
- Robust industrial gearbox - For the toughest raw materials and high loads
- Movable rollers Ø 148 mm - High efficiency and high pressing pressure
- Die Ø 300 mm - Hole diameter 2-8 mm freely selectable
- Mobile and flexible - Perfect for outdoor areas and locations that are difficult to access
- Durable - die service life approx. 70 tonnes, regenerable
- Material made from hardened 40X steel - Hardness grade 55 HRC for extreme resilience
- Easy maintenance - Quick change of mould and rollers
- Optional automatic roller lubrication system - Maintenance without machine downtime
Technical data of the pellet mill
- Roller speed: 82 rpm
- Mould bores: 2-8 mm
- Die diameter:
- Roller diameter: 148 mm
- Roller width: 79 mm
- Number of crushing knives: 2 pieces
- Dimensions (L × W × H): 1430 × 800 × 1220 mm
- Total weight: 650 kg

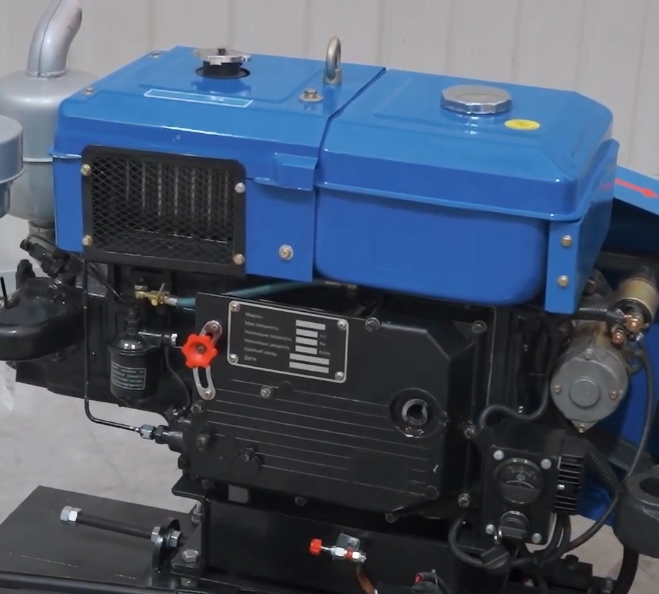

Technical data of the 30 hp diesel engine
- Motor type: 4-stroke, single cylinder
- Fuel: Diesel

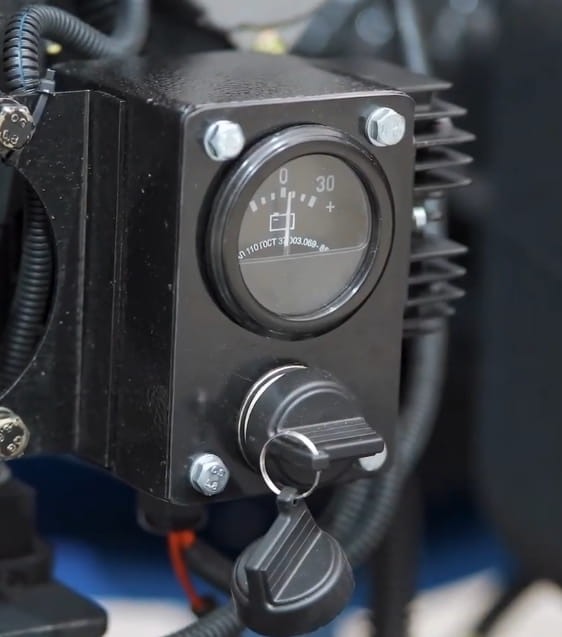

- Starter: electric & manual
- Max. power: 30 hp (approx. 22.06 kW)
- cubic capacity: 1472 cm³
- Cylinder diameter / piston stroke: 125 / 120 mm
- Cooling: Water cooling
- Crankshaft speed: 2200 rpm
- Fuel tank: 10.5 litres
- Oil volume: 2.84 litres
- Motor weight: 206 kg
- Dimensions: 1120 × 460 × 760 mm
- Lubrication system: Oil pump + splash lubrication
- Special features: Decompressor, balancer shaft, oil bath air filter
Scope of delivery
- Pellet press with diesel engine - 1 piece
- Operating instructions - 1 piece
- Diesel engine 30 hp - 1 piece
- Rollers - 1 piece
- Die - 1 piece
- Spanner for tightening the rollers - 1 piece
This pellet mill is the ideal solution for businesses that require maximum mobility, high performance and independent operation. Whether animal feed, wood, biomass or plastic pellets - the machine ensures reliable, economical and professional production.
