Pellet press 700 kg/h – 18.5 kW, 400V | Industrial machine for feed & biomass pellets
€5,350.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Pellet press 700 kg/h – 18.5 kW, 400V | Industrial machine for feed & biomass pellets
Pellet press 700 kg/h - 18.5 kW, 400V - Industrial pelletiser for animal feed & biomass pellets
ThePellet press up to 700 kg/h - 18.5 kW, 400V is a high-performance industrial machine that has been specially developed for the intensive and continuous production of pelletised animal feed and biomass pellets. Thanks to its reinforced frame, large die system (Ø 260 mm) and a powerful 18.5 kW electric motor this machine offers maximum efficiency, stability and durability - even under the even under the toughest operating conditions.
Processable materials
- Crushed grain and grain mixtures
- Sunflower husks
- Press cake and oil cake
- Hay, straw and plant residues
- Grain waste and fine materials
Suitable for many animal species
- Poultry: chicks, laying hens, quails, broilers
- Rabbits, goats, sheep
- Pigs, cattle
- Fish and other breeding animals
Advantages of the pellet press
- Extremely high performance: up to 700 kg/h of pelleted feed
- Industrial design for continuous 24/7 operation
- Mould can be used on both sides Made from hardened, high-alloy steel
- Uniform pellet shape for optimum feeding results
- Up to 95% reduction of microorganisms due to press heat
- Less feed loss due to homogeneous, compact granules
- Rollers with grease nipples for extended service life and easy maintenance
- Die change from 2-8 mm for different animal species and pellet sizes
- Also suitable for biomass: Straw, hay and mixed pellets
Functionality
A powerful18.5 kW motor (980 rpm) drives the large mould via a reinforced drive system. Two rollers pressed against the mould press the material evenly through the openings, where it is formed into pellets and cut to the desired length by an adjustable cutting blade.
Scope of delivery
- 1 × pellet press / granulator
- 1 × control panel
- 1 × operating instructions
- 1 × die puller
- 1 × die (hole diameter freely selectable: 2-8 mm)
- Rollers for the mould (mounted)
Technical data
- Engine power: 18.5 kW
- production output: up to 700 kg/h (feed)
- Supply voltage: 400 V
- Speed: 980 rpm
- Die diameter: 260 mm
- Hole diameter: 2-8 mm (optional)
- Roller diameter: 118 mm
- Roller width: 66 mm

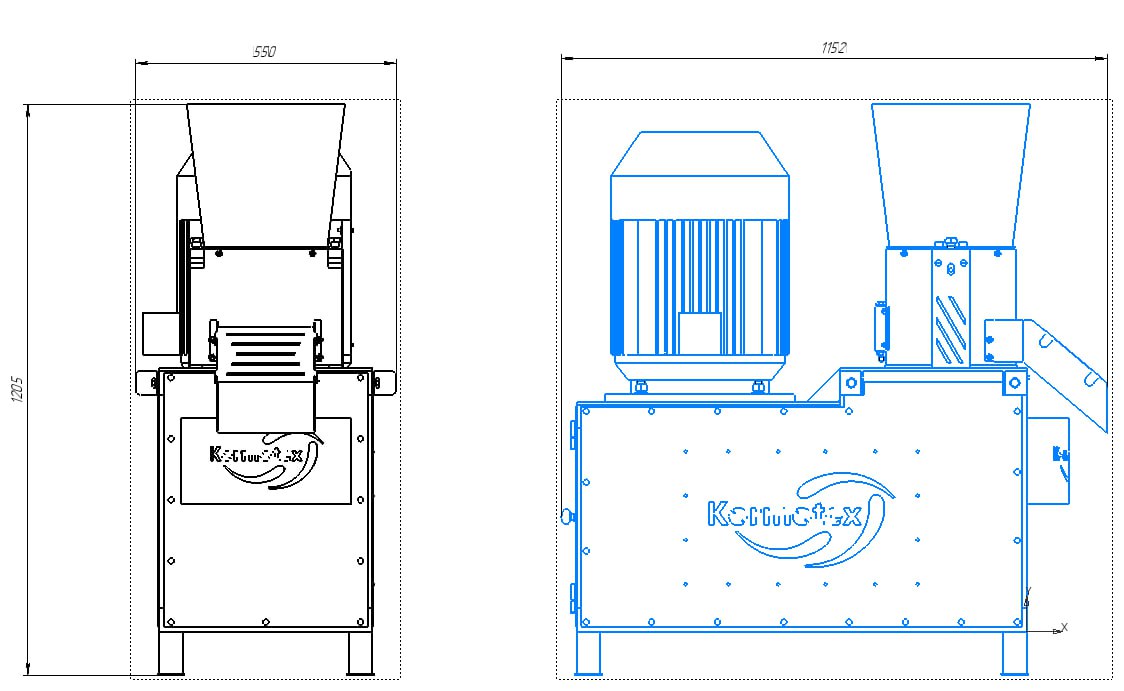

- Dimensions (L × W × H): 1115 × 550 × 1205 mm
- Weight: 370 kg
- Drive type: electric
- Product type: Granulator / pellet press for animal feed & biomass
ThePellet press 700 kg/h - 18.5 kW is the perfect choice for professional agricultural businesses, feed manufacturers, biomass plants and anyone who demands maximum performance, economy and robustness.
