Pellet press 400 kg/h – 7.5 kW, 400V | Granulator for feed & heating pellets
€4,200.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Pellet press 400 kg/h – 7.5 kW, 400V | Granulator for feed & heating pellets
Pellet press 400 kg/h - 7.5 kW, 400V - Powerful pelletiser for feed & heating pellets
ThePellet press up to 400 kg pellets per hour / 7.5 kW, 400V is a versatile, robust and and highly efficient appliance for the production of pelletised animal feed, biomass pellets and ecological fuels. Thanks to its solid construction, reliable technology and high production capacity, this pelletising machine is ideal for pelletising machine is ideal for farms, small production facilities and demanding private users.
Suitable raw materials
- Wood shavings
- Straw and hay
- Feed mixtures (grain, alfalfa, soya)
- Sunflower husk residues
- Biomass and fertilisers
By selecting the die hole diameter (2-8 mm), the pellet size can be precisely adapted to the animal species or heating purposes. heating purposes.
Pellet production for various animal species
- Chickens, broilers, quails
- Rabbits, pigs, goats, sheep
- Cattle and calves
- Fish and other farm animals
Advantages of the pellet press
- High production output - up to 400 kg/h feed & 150 kg/h heating pellets
- Versatile use - Feed granulator & pelletiser in one appliance
- Robust construction - Designed for continuous operation and high loads
- Rollers with grease nipples - Easy maintenance and longer service life
- Individually customisable pellet size through matrices from 2-8 mm
- Efficient processing of waste materials such as sawdust, straw and husks
- Simple operation thanks to a clear machine structure
Functionality
A powerful7.5 kW motor with750 rpm drives the die via a belt belt drive system. Two rollers press the material through the openings of the double-sided mould made of hardened special steel. mould made of hardened special steel. This ensures optimum compaction, high dimensional stability and uniform pellet quality.
Technical data
- Lining capacity: up to 400 kg/h
- Pellet capacity: up to 150 kg/h
- Die diameter: 205 mm
- Die hole diameter: 2-8 mm (optional)
- Engine power: 7.5 kW
- Operating voltage: 400 V
- Speed: 750 rpm
- Roller diameter: 95 mm
- Roller width: 55 mm
- Weight: 280 kg

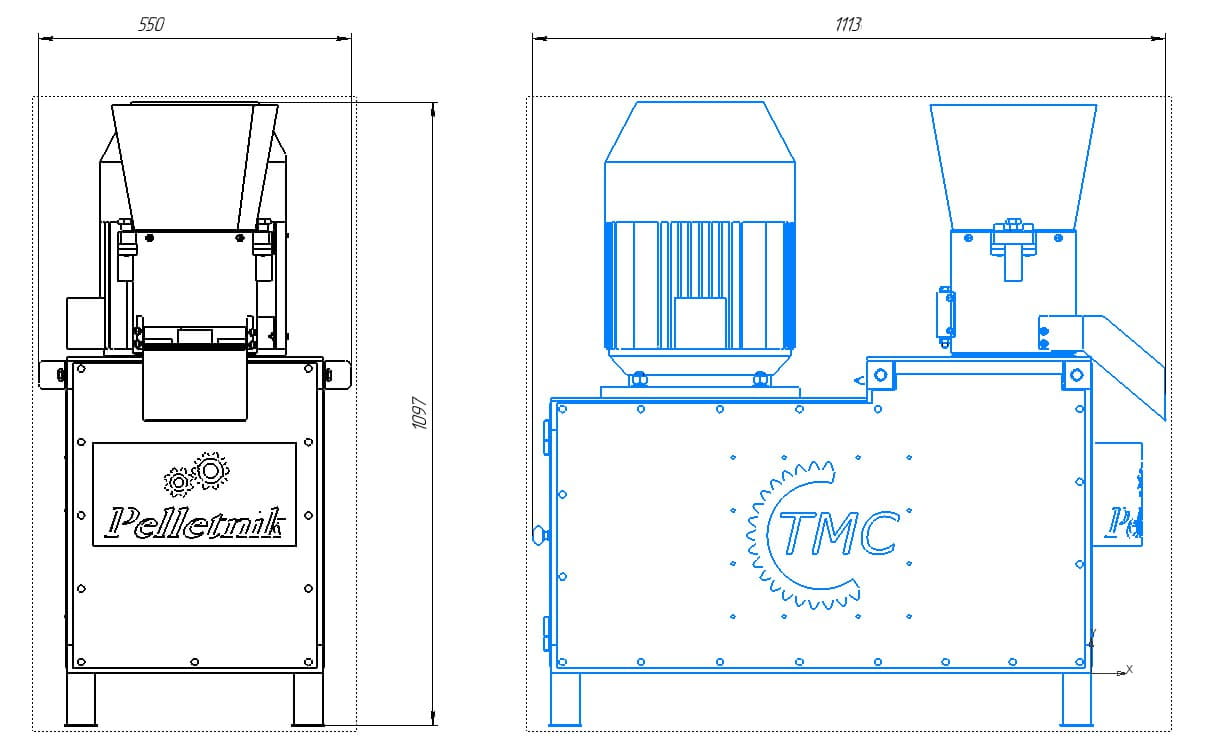

- Dimensions (L × W × H): 1115 × 550 × 1000 mm
Scope of delivery
- 1 × granulator / pellet press
- 1 × operating instructions
- 1 × die puller
- 1 × die (hole diameter of your choice)
ThePellet press 400 kg/h - 7.5 kW is an excellent choice for companies that require an efficient, powerful and maintenance-friendly solution for the production of feed pellets or heating pellets. pellets. Its robust processing, high efficiency and flexible application options make it an indispensable tool for agriculture, animal husbandry and sustainable energy production.
