Patura Thermolac 75B bowl drinker, 2 bowls - 75L
€750.00
Free shipping
Available, delivery time: 2-5 days
Description
Patura Thermolac 75B bowl drinker, 2 bowls - 75L
Frost-proof bowl drinker without power connection
This innovative bowl drinker provides your animals with fresh, clean water all year round -without any power connection. Thanks to the natural principle of water refilling via a float valve, the water remains pleasantly cool in summer and frost-free in winter - down to -15 °C, depending on the number of animals.

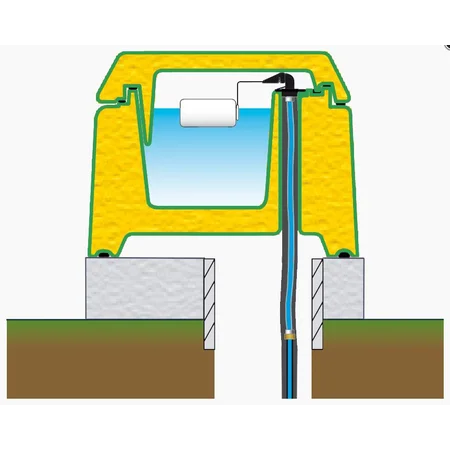

This is how the bowl drinker works:

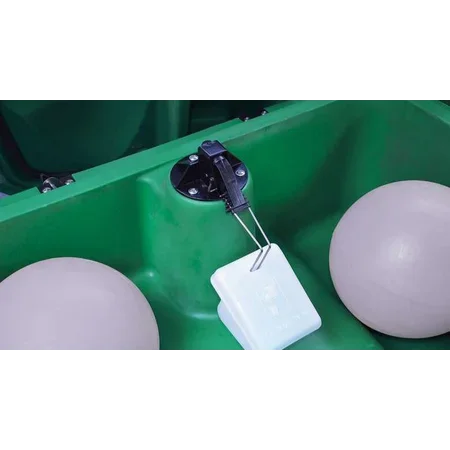

Water at approx. 10 °C flows from the floor into the drinking container. Animals drink directly from the high-qualityAluminium tray. The water level is controlled via aFloat valve kept constant. The natural circulation keeps the water algae-free, fresh and ready to drink - in both hot and frosty weather.
Product features:
- Contents: 75 litres
- For: 25 - 40 animals
- Inflow: 38 l/min at 5 bar
- Frost-proof: down to -8 °C (from 5 animals), down to -15 °C (from 15 animals)
- Water pressure: 1 to 5 bar
- Connection: ½" water pipe, ready for connection
- Material: Plastic, with aluminium shell
- Water drainage: Downwards possible, Ø 100 mm drain opening
- Weight: 36 kg
- Dimensions: 99 × 66 × 53 cm (L × W × H)
Advantages:
- No power connection required
- Fresh water at temperatures from -15 °C to +30 °C
- Standing water area - ideal for sheep and other animals
- Easy opening thanks to wing nuts
- Tiltable lid with reversible hinges
- Large drainage openings for easy cleaning
- Drinking bowl can be removed without tools
- Easy connection via flexible armoured hose
- Complies with the standardEN1717 through internal overflow system
Assembly instructions:
The bowl drinker should be mounted on an approx. 15 cm thick, slightly raised concrete slab. The slab should be approx. 30 cm larger on each side than the drinking trough itself. The water supply pipe must be laid at a frost-free depth.
