Patura tension panel - width: 7.60 m
€292.90
Free shipping
Available, delivery time: 5-7 Tage
Accesories
Available, delivery time: 2-5 days
Available, delivery time: 1-2 weeks
Description
Patura tension panel - width: 7.60 m
TheRemovable windbreak net from Brander is a high-quality, wind-breaking net for installation in front of the building front between pillars and posts. It reliably closes every building opening and is ideal forOpen-fronted barns, machine and storage halls as well as all buildings where fresh air and light are to be retained while draughts, rain and birds are effectively kept out.

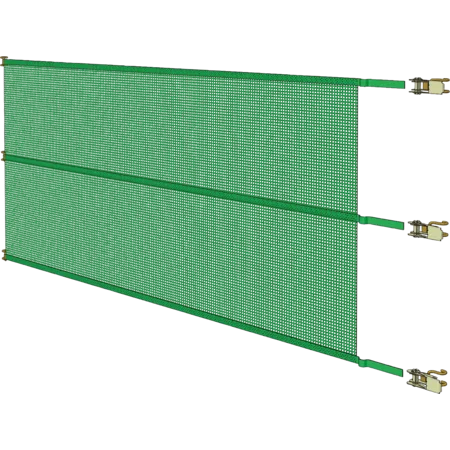

TheDelivery completely ready for assembly includes sewn-in tension belts, powerful tensioning ratchets and robust PVC protective profiles. The windbreak net can be completely completely removed and refitted at any time and is suitable for attachment to Steel, wood or concrete substrates suitable.
1. determination of the dimensions
The dimensions (width and height) are measured from the left edge of the left post to the right edge of the right post. right edge of the right-hand post. The length of the net when tensioned corresponds to the length ordered+ 50 mm with a tolerance of ± 0.5 %.
Wind protection clamping panels must always be installed on the outside of the building front. Several openings must each be realised with individual tensioning panels to ensure function and guarantee. guarantee.
2. adaptation
- Width: can be shortened as required
- Height: Customised design possible (next possible height + surcharge)
3. colours
- Special net available in green, beige, grey, brown and black at no extra charge
Technical data - Tensioning straps & ratchets
| Mesh width | Tensioning strap (width / strength) | Ratchet (width / strength) |
|---|---|---|
| 3,00 - 6,10 m | 25 mm / 1000 kg | 25 mm / 900 kg |
| 6,10 - 9,14 m | 25 mm / 2000 kg | 25 mm / 2000 kg |
| 9,14 - 13,70 m | 50 mm / 3000 kg | 50 mm / 5000 kg |
| 13,70 - 18,30 m | 50 mm / 5000 kg | 50 mm / 5000 kg |

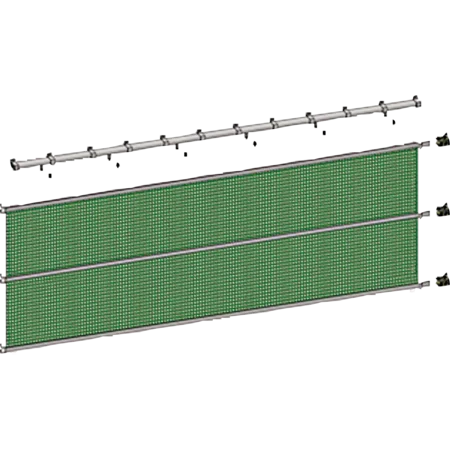

Installation tip
The wind protection clamping panels can optionally be fitted with aRunning rail combined and used as a lightweight curtain design (recommended for heights up to 2.00 m). Assembly and disassembly is quick and easy using tensioning straps and ratchets.
