Patura tension panel - width: 5.50 m
€181.50
Free shipping
Available, delivery time: 5-7 Tage
Accesories
Available, delivery time: 2-5 days
Available, delivery time: 1-2 weeks
Description
Patura tension panel - width: 5.50 m
TheRemovable windbreak net from Brander is a high-quality, wind-breaking net for installation in front of the building front between pillars and posts. It reliably closes every opening and is ideal forOpen-fronted barns, machine and storage halls as well as all buildings where fresh air and daylight are desirable, but draughts, rain and birds should remain outside. should remain outside.

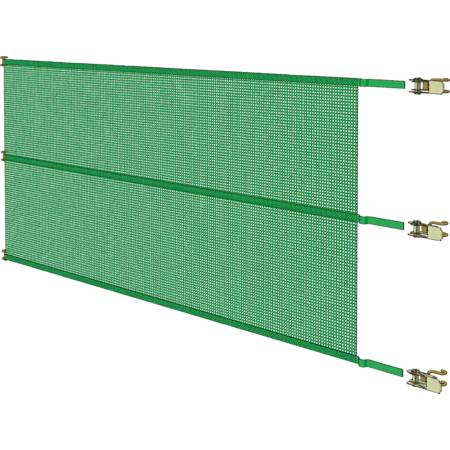

TheDelivery completely ready for assembly includes sewn-in tension belts, tension ratchets and PVC protective profiles. The windbreak net can be completely removed and refitted at any time. at any time. The attachment is onSteel, wood or concrete substrates possible.
1. determination of the dimensions
The dimensions (width and height) are measured from the left edge of the left post to the right edge of the right post. edge of the right-hand post. The length of the net when tensioned corresponds to the ordered length+ 50 mm with a tolerance of ± 0.5 %.
Wind protection tensioning panels must always be installed outside the front of the building. Multiple openings must each be designed with individual tensioning panels in order to maintain function and guarantee.
2. adaptation
- Width: can be shortened as required
- Height: Customised design possible (next possible height + surcharge)
3. colours
- Special net in green, beige, grey, brown and black at no extra charge
Technical data - Tensioning straps & ratchets
| Mesh width | Tensioning strap (width / strength) | Ratchet (width / strength) |
|---|---|---|
| 3,00 - 6,10 m | 25 mm / 1000 kg | 25 mm / 900 kg |
| 6,10 - 9,14 m | 25 mm / 2000 kg | 25 mm / 2000 kg |
| 9,14 - 13,70 m | 50 mm / 3000 kg | 50 mm / 5000 kg |
| 13,70 - 18,30 m | 50 mm / 5000 kg | 50 mm / 5000 kg |
Installation tip

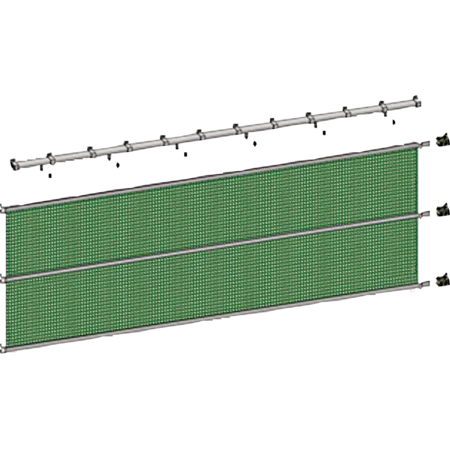

The wind protection clamping panels can optionally be fitted with aRunning rail combined and used as a light curtain design (recommended for heights up to 2.00 m). Using tensioning straps and ratchets, they are quick to install and just as easy to remove.
