Patura tension panel - width 5.00 m
€176.00
Free shipping
Available, delivery time: 5-7 Tage
Accesories
Available, delivery time: 2-5 days
Available, delivery time: 1-2 weeks
Description
Patura tension panel - width 5.00 m
TheRemovable windbreak net from Brander is a reliable, wind-breaking solution for protecting building openings. It is mounted on the outside of the building front between pillars or posts and effectively closes any opening in the building. Ideal forOpen-fronted barns, machine and storage halls and all buildings, where fresh air and daylight should be retained, while draughts, rain and birds are reliably are reliably kept out.

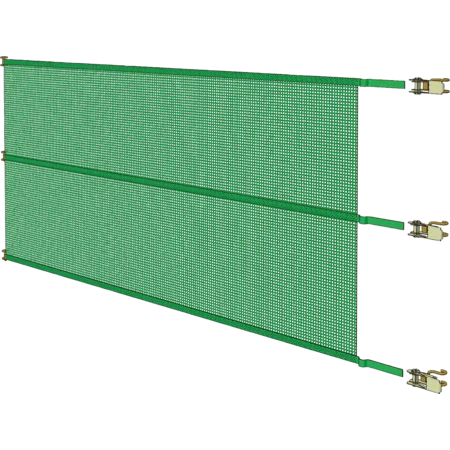

Thanks to theDelivery completely ready for assembly with sewn-in tensioning straps, ratchets and PVC protective profiles, the windbreak net can be installed quickly and removed completely at any time. completely at any time. The attachment is onSteel, wood or concrete substrates possible.
Determining the dimensions
The dimensions (width and height) are determined from the left edge of the left post to the right edge of the right post. right edge of the right-hand post. The length of the net when tensioned corresponds to the length ordered+ 50 mm with a tolerance of ± 0.5 %.
Wind protection tensioning panels must always be mounted on the outside of the building front and on uprights or posts. Multiple openings must be realised with individual tensioning panels in order to guarantee the function and warranty.
Customisation & colour variants
- Width: can be shortened as required
- Height: Customised design possible (next possible height + surcharge)
- Colours without surcharge: green, beige, grey, brown, black
Technical data - Tensioning straps & ratchets
| Mesh width | Tensioning strap (width / strength) | Ratchet (width / strength) |
|---|---|---|
| 3,00 - 6,10 m | 25 mm / 1000 kg | 25 mm / 900 kg |
| 6,10 - 9,14 m | 25 mm / 2000 kg | 25 mm / 2000 kg |
| 9,14 - 13,70 m | 50 mm / 3000 kg | 50 mm / 5000 kg |
| 13,70 - 18,30 m | 50 mm / 5000 kg | 50 mm / 5000 kg |
Installation tip

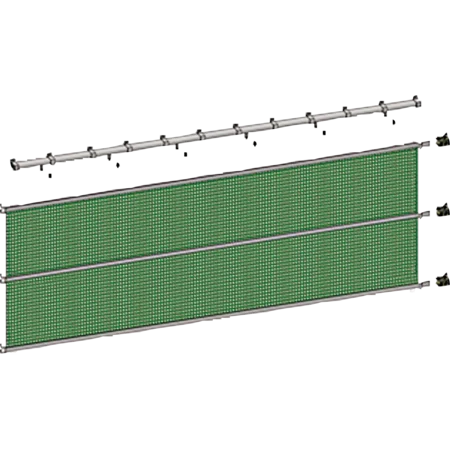

The wind protection clamping panels can optionally be fitted with aRunning rail combined and can be used as a lightweight curtain design (recommended for heights up to 2.00 metres). The panels can be installed quickly and removed just as easily using tensioning straps and ratchets.
