Patura high-speed door with guide rails - Width: 4.00 m
€1,675.00
Free shipping
Available, delivery time: 1-2 weeks
Accesories
Available, delivery time: 1-2 weeks
Available, delivery time: 2-5 days
Description
Patura high-speed door with guide rails - Width: 4.00 m
ThePatura wind protection high-speed door is the ideal solution for safe, fast and wind-protected access to agricultural and commercial buildings. Thanks to the identical design to tried-and-tested electric doors, this high-speed door impresses with maximum stability, simple operation and a long service life.
In co-operation with theCompany Brander you get a quality product that has been specially developed for daily use under demanding conditions.
Efficient, robust and easy to operate

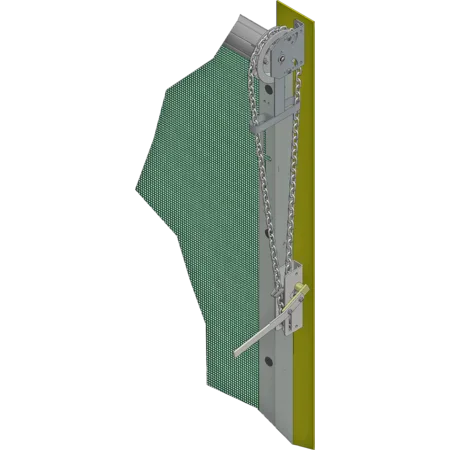

The wind protection high-speed door is operated via aRobust chain drive (similar to an agricultural gate) and can be opened and closed with little effort. Lateral guide rails ensure a reliable seal and allow operation even in light winds.
Product details at a glance
1. steel profile tubes
All high-speed doors are equipped withHigh-quality steel profile tubes with a diameter of 100 mm equipped. These ensure maximum stability and a particularly long service life.
2. dimensions and mounting
- The ordered width and height determine the net dimensions
- Tube length: Net width + 100 mm (50 mm per side)
- Maximum mounting width: Nominal width minus 3 cm
- Clearance height reduced by 100 mm
- Operator can be mounted either on the left or right
3. customisation on site
TheMinimum door width is 2.40 m. No height adjustment is required - excess mesh simply remains wound onto the upper tube. The width is cut exactly to the opening on site.
4. bottom end lip
The door is fitted as standard with a14 cm high floor finishing lip equipped. Optional floor sealing lips with34 cm or 51 cm height available to optimally compensate for uneven floors.
5. lateral guide rails
All doors haveLateral guide railswhich ensure that the door opening closes tightly and enables safe operation even at high wind speeds.
6. colours
The high-quality special net is available at no extra charge in the coloursgreen, blue, beige, grey, brown and black available.
Your advantages at a glance

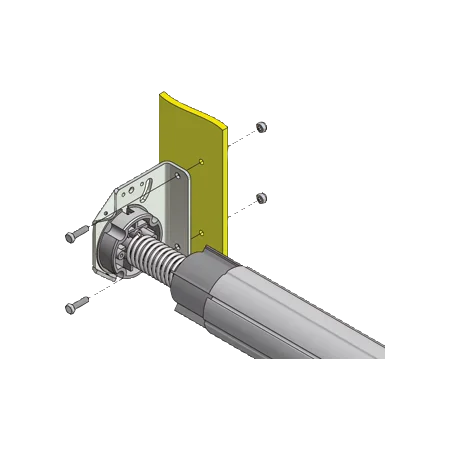

- Robust spring for support when pulling up for more safety
- Optional cover available to protect the rolled-up windbreak net
- Bending-resistant steel profiles Ø 100 mm for maximum service life

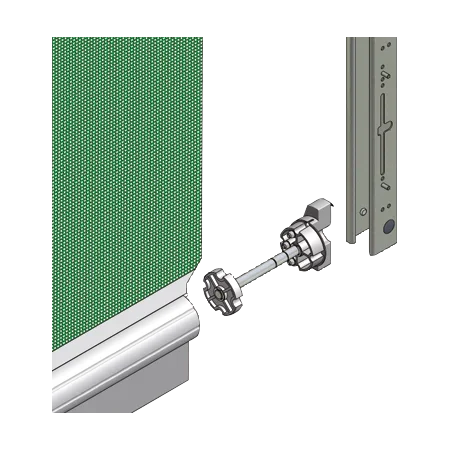

- Durable nylon guide and stable U-profile rail

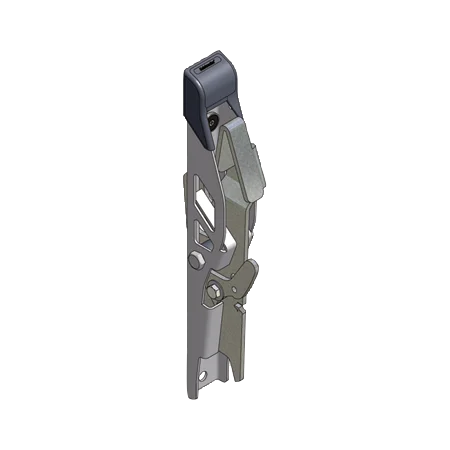

- Semi-automatic locking system for reliable storm protection
- Fast, robust and smooth-running chain drive (approx. 2 seconds per metre)
