Patura electric fence power supply 230V - P5000
€519.50
Free shipping
Available, delivery time: 1-3 days
Description
Patura electric fence power supply 230V - P5000
PATURA P 5000 - The 230 volt appliance in the professional series
Affordable and powerful - with proven MaxiPuls technology!

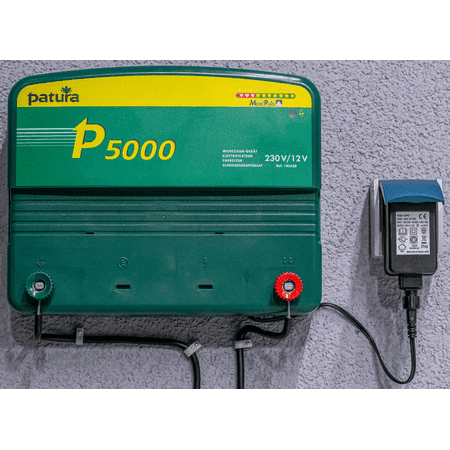

ThePATURA P 5000 is the powerful and cost-effective power supply unit from the Profi series. It is designed for stationary operation from a 230 V socket, but can also be operated from a 12 V battery with an optional battery connection cable (Ref. 9187225). Ideal for long fences with heavy vegetation - e.g. for cattle, sheep, horses, for game defence and herd protection.
What makes the P 5000 special?

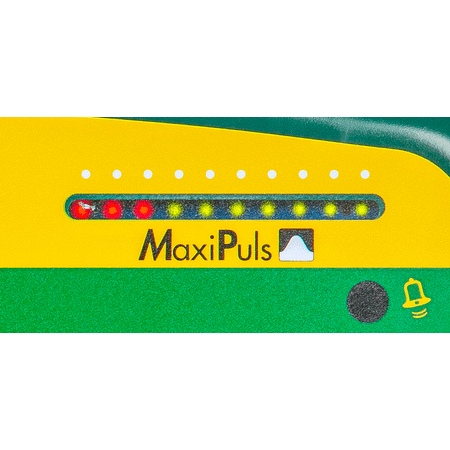

Thanks to theMaxiPulse technology the device delivers particularly high-energy pulses with high effectiveness - even over long distances. The 10-stage control display shows the fence voltage precisely in 1,000 volt increments, making it easy to monitor.
Product features:
- Professional electric fence with 230 V mains connection
- Optional 12 V battery operation possible (accessories required)
- Ideal for pasture fences with heavy vegetation or demanding animals
- Withtime-delayed power adjustment andLoad change alarm
- 10-stage fence and battery control
- Maximum reliability and efficiency thanks toMaxiPulse technology
Technical data:
- Charging energy: 14 J
- Max. pulse energy: 10,7 J
- Open-circuit voltage: 9.600 V
- Voltage at 500 Ohm: 7.300 V
- Voltage at 100 Ohm: 4.800 V
- Power consumption at 12 V: 950 mA
- Power consumption at 230 V: 13,7 W
- Weight: 5.00 kg
Maximum fence lengths (stranded):
- Easy to herd animals: up to 40 km (without vegetation)
- Hard to herd animals: up to 20 km (without vegetation)
- Herd protection with heavy vegetation: up to 1.5 km
Capacity for electric fence nets:
- Electric fence nets < 0.5 Ohm: up to 35 pieces
Earthing:
- Recommended minimum number of 2 m earth rods: 2
Note: The device is supplied with a mains adapter. A separate connection cable (Ref. 9187225) is required for battery operation.
