Patura electric fence energizer combination 12V / 230V - P1500
€185.00
Free shipping
Available, delivery time: 2-5 days
Description
Patura electric fence energizer combination 12V / 230V - P1500
PATURA P 2500 electric fence energiser - Combination appliance from the ProfiPlus series
Compact performance for small to medium-sized fence systems
ThePATURA P 2500 is a powerful combination device for use on fences with light vegetation. It combines modern device technology with high efficiency and convenient operation. The device can be used with a12 V battery as well as with230 V mains voltage ideal for mobile and stationary use.
Your advantages at a glance

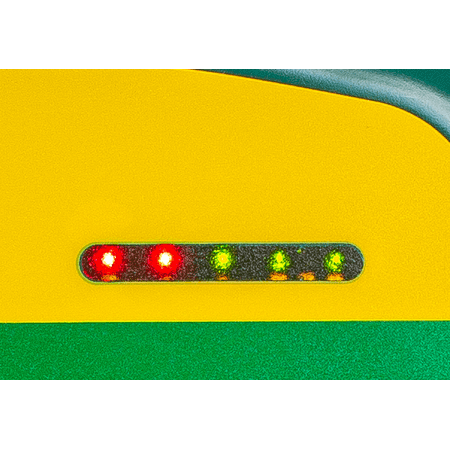

- 5-stage LED display for fence voltage and battery status
- 6-step switch for individual operating modes
- Deep discharge protection for batteries
- Compact, robust design for everyday use
Recommended use
- ForCattle and horses
- Suitable forFence systems with light to normal vegetation
Technical data
| Charging energy | 1,5 J |
|---|---|
| Max. Pulse energy | 1 J |
| Open circuit voltage | 9.800 V |
| Voltage at 500 Ohm | 5.300 V |
| Voltage at 100 Ohm | 1.800 V |
| Power consumption at 12 V | 60 - 110 mA |
| Power consumption at 230 V | 2 W |
Maximum fence lengths (stranded)
| Field of application | Without vegetation | Normal vegetation | Heavy vegetation |
|---|---|---|---|
| Easy to herd animals | 10 km | 3 km | 1 km |
| Hard to herd animals | 5 km | 1.5 km | 0.5 km |
Further specifications
- Maximum number of electric fence nets: Up to 4 nets (< 0.5 Ohm)
- 230 V power supply unit and12 V stainless steel connection cable Included in the scope of delivery
- Including fence and underground cable set
Equipment
- 5-stage fence and battery control
- 6 operating levels incl. day and night switching
- Deep discharge protection for battery operation
Earthing
For reliable operation, at least1 earth rod à 1 m required.
Product note:
The device is suitable for both12 V batteries as well as for theOperation on 230 V mains prepared.
Properties
| execution: | P1500 |
|---|
