Patura Electric Agricultural Gate PLUS - Width: 7m
€6,525.00
Free shipping
Available, delivery time: 1-2 weeks
Accesories
Available, delivery time: 5-7 Tage
Description
Patura Electric Agricultural Gate PLUS - Width: 7m
ThePatura electric agricultural gate PLUS with 7.00 m width is the ideal solution for particularly large door openings in agriculture, stable construction and industrial agricultural areas. This high-quality professional roller shutter door stands for maximum stability, durable materials and customised production. Available fromBranderyour reliable partner for modern agricultural technology.
Note: The electric motor isto be ordered separately.
Maximum stability for large openings
The Agrartor PLUS was specially developed for high loads and large passageways. Solid guide rails, a robust winding tube and high-quality segment profiles ensure safe, smooth running - even in wind, weather and intensive use.
Dimensions & customisation
- Door width:7,00 m
- Customised production according to clear width "B" and height "H"
- For intermediate dimensions, delivery in the next larger version
- Operation right (Option R) or left (Option L) selectable
- When open, the clearance height is reduced by 22.5 cm
Installation & structural requirements
Before installation, make sure that no obstacles such as gutters, drainpipes or door fittings interfere with the installation of the top brackets and side guide rails. The door width is adjusted exactly to the opening width on site.

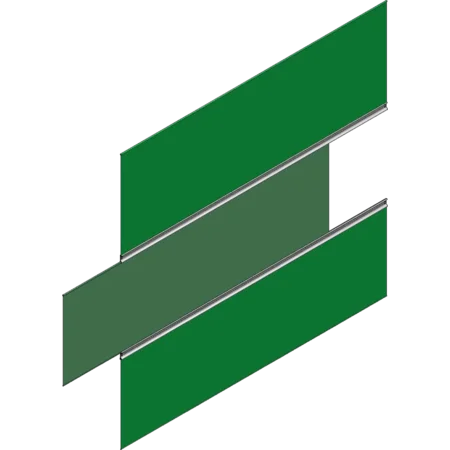

Floor finish & material selection
- With grey bottom lip as standard (20 cm high)
- Special net in green, blue, beige, grey, brown or black at no extra charge
- Optionally with cover to protect the rolled-up windbreak net

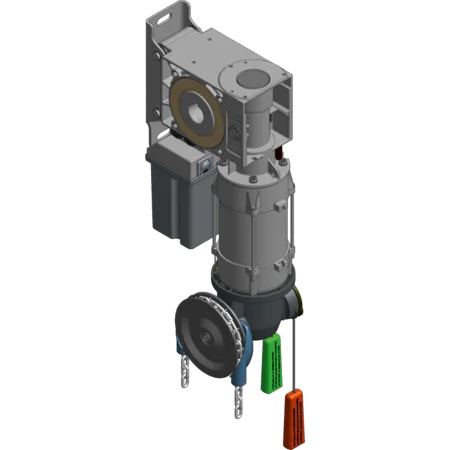

Drive types (order motor separately)
- Direct drive 230 V / 750 W (7 s / m) incl. control box & 2 switches
- Direct drive 400 V / 400 W (7 s / m) incl. control box & 2 switches
- Optional indirect drive with limited space
- Emergency operation via chain possible
Your advantages at a glance

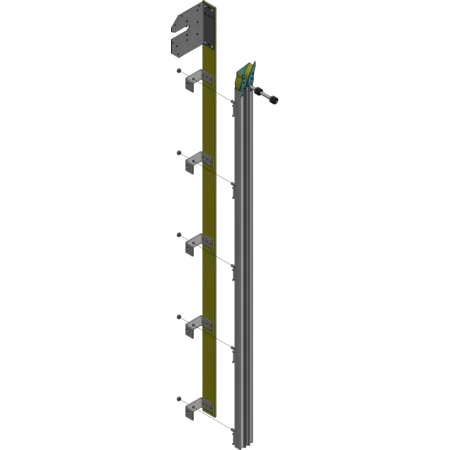

- Solid guide rails for maximum stability
- Winding tube made of bend-resistant 8-corner aluminium profile (Ø 157 mm)

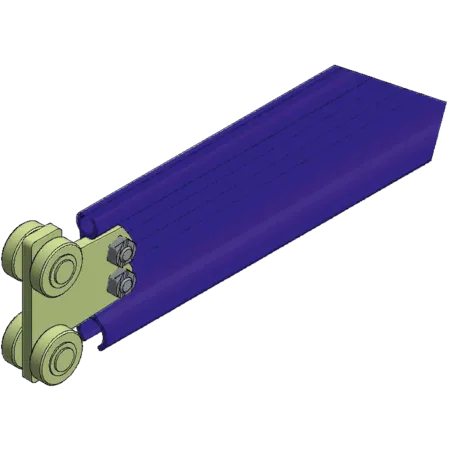

- Segment profiles for even wind load distribution
- Ball bearing castors for high running performance
- Safety switch-off when used with remote control
