Patura circulating heating system with 93/85 W pump - Model 317
Circulation systems - frost-free water supply for your barn
The Patura circulation heating system with its electric auxiliary heating provides a Reliable frost-free water supply in your barn. Depending on the requirements - from small stables to large outdoor climate stables - suitable systems are available. suitable systems are available.
Functionality
- Requirement: Water installation with ring main connecting all drinking troughs
- After switching on, the water is continuously circulated by the pump
- The heating element is controlled automatically via the control thermostat
- Maximum cable length including return:200 m
- Cable cross-section:½" or ¾"
- The water pipe should also be insulated
- RCD 30 mA must be connected upstream
- Note: The supply pipe in which there is no circulation must be kept separately frost-free (e.g. with heating cable)

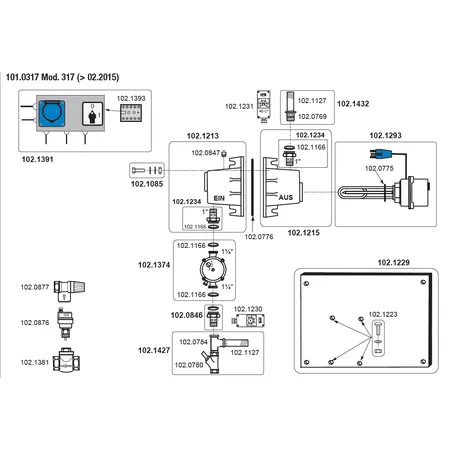

Description of the
- With thermostat in the flow
- 1 × heating element 230 V / 3 kW
- Circulation pump (93 W)
- Water connections: ½" or ¾"
- Cable length: max. 200 m
- Max. Height difference (forward/return): 5 m
- With non-return valve, non-return flap, pressure relief valve, automatic air vent and main switch
- Mounted on base plate ready for connection
- RCD 30 mA required on site
- Water pressure max. 4 bar
- With return temperature control
Product note
Ideal in combination with thePatura drinking bowl Models 25R, 115, 19R orForstal with T-piece.
Installation tip
Installation by a specialist only to be carried out, to ensure that the system functions safely and for a long time.
Practical tip
Protect water and heating pipes against browsing! Use our pipe protection models for this purpose Ref. 380108 andRef. 380119.
Technical data
- Weight: 26.00 kg
- Length: 60 cm
- Width: 39 cm
- Height: 22 cm
