Patura circulating heating system with 93/85 W pump - Model 303

Description

Patura circulating heating system with 93/85 W pump - Model 303

Circulation heating system - Frost-free water supply for stables

ThePatura circulation heating system model 317 ensures through its additional electric heating for aReliable and frost-free water supply in your barn. Whether small stables or large outdoor climate stables - this system offers the right solution for a wide range of applications.

Functionality

The prerequisite is a water installation in which all drinking troughs are connected via a ring main. are connected to each other. After switching on, thePowerful circulation pump (93 W) the water continuously in circulation. The integrated3 kW immersion heater is automatically via theControl thermostat controlled. This means that the water remains frost-free even at low temperatures.

  • Cable length: up to max. 200 m (incl. return)
  • Cable cross-sections: ½" or ¾"
  • RCD 30 mA required
  • Water pressure: max. 4 bar
  • Maximum height difference (forward/return): 5 m
  • Additional insulation of the water pipe recommended

Note: Please note that the supply pipe, in which no water circulates, must be must be kept frost-free using suitable measures (e.g. heating cable).

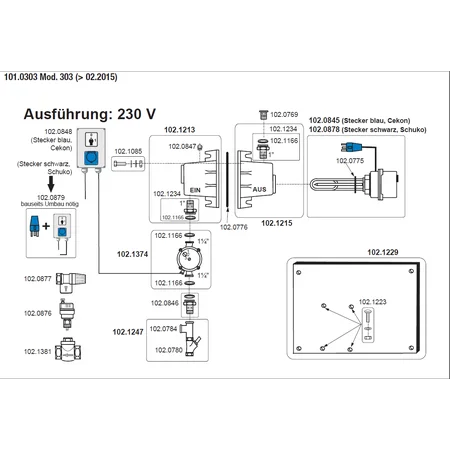

Technical description

  • With thermostat in the flow
  • 1 × 230 V / 3 kW heating element
  • Circulation pump (93 W)
  • Water connections ½" or ¾"
  • Non-return valve, non-return flap
  • Pressure relief valve, automatic air vent and main switch
  • Mounted on base plate ready for connection

Product note

Ideal in combination with thePatura drinking bowl models 25R, 115, 19R or Forstal (in conjunction with T-piece).

Installation tip

The installation should only be carried out by aSpecialist be carried out.

Practical tip

Protect water and heating pipes reliably against browsing! For this we recommend thePipe protection models Ref. 380108 and 380119 from Patura.

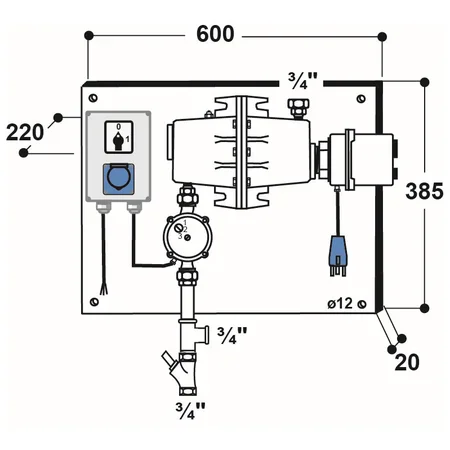

Technical data

  • Weight: 26.00 kg
  • Length: 60 cm
  • Width: 39 cm
  • Height: 22 cm
