Patura ball drinker Thermo-Quell 640, 2 balls - 80L
€698.00
Free shipping
Available, delivery time: 2-5 days
Description
Patura ball drinker Thermo-Quell 640, 2 balls - 80L
Frost-proof ball drinker without power connection
Functionality
The ball drinker works completely without electricity: water at approx. 10° C from the ground fills the drinking container until the balls close the drinking holes. When the animals drink, a float valve ensures that the water continues to flow. The energy of the overflowing water keeps the water warm when it is cold and cool when it is hot. The special ball closure system provides fresh, clean and algae-free water at all times - from -30° C to +30° C.
- The ball rolls away when drinking
- The supply line must be laid frost-free
- Water pressure: 1 to 5 bar
- From 5 animals frost-proof to -15° C, from 15 animals frost-proof to -25° C
- Ready for connection to ¾" water pipe
- Recommended installation: slightly raised on 15 cm concrete slab, approx. 30 cm larger than drinking trough
- Large drain openings for quick and complete cleaning
Product details
- Capacity: 80 litres
- Capacity: 25 - 40 animals
- Maxi-Flow float valve
- Inlet: 40 l / min at 5 bar
- Connection: ¾"
Advantages
- Large drain to the front for quick emptying
- Simple connection (¾") to water pipe via flexible armoured hose

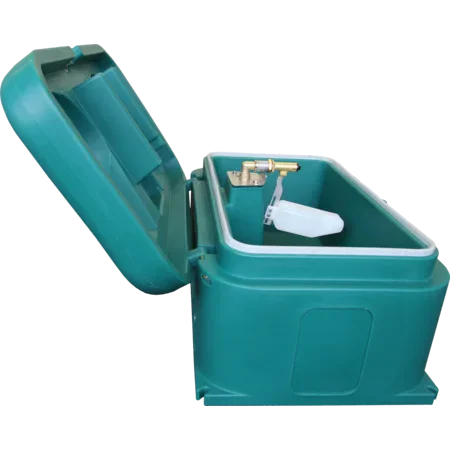

- Hinged and removable lid for easy access to the valve
Material & dimensions
- Material: Plastic
- Weight: 38.00 kg
- Length: 100 cm
- Width: 60 cm
- Height: 56 cm
- Frost-proof to: -25 °C
