Patura ball drinker Farmdrinker Farmdrinker, 1 ball - 57L
€727.00
Free shipping
Available, delivery time: 2-5 days
Description
Patura ball drinker Farmdrinker Farmdrinker, 1 ball - 57L
Frost-proof ball drinker without power connection - 57 litres
This robust and low-maintenanceBall trough is ideal for the year-round water supply of your animals -without any power connection. Thanks to the intelligent ball closure system, the water remains cool at temperatures of up to-40 °C frost-free and pleasantly cool in summer - with minimum maintenance.
How the ball trough works:

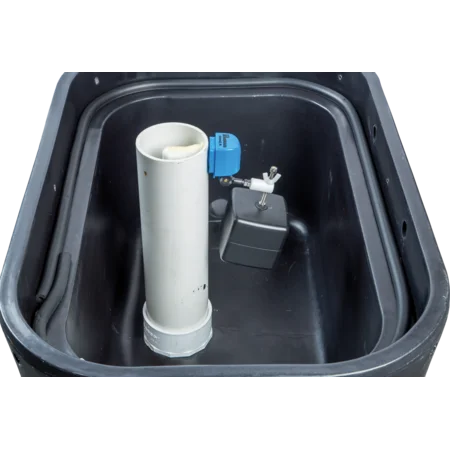

Water from a frost-free depth (approx. 10 °C) fills the drinking container until theBalls that close the drinking openings. When drinking, the animals push the ball to the side to get fresh water. AFloat valve automatically regulates the flow. The thermal energy of the incoming water ensures a constant water temperaturewithout electric heating.
Technical data:
- Contents: 57 litres
- Suitable for: 15 - 25 animals
- Inlet volume: 40 l/min at 5 bar
- Water pressure: 1 - 5 bar
- Connection: ¾" water pipe (ready for connection)
- Frost-proof: down to -15 °C (from 5 animals), down to -40 °C (from 15 animals)
- Material: High-quality plastic
- Dimensions (L × W × H): 71 × 66 × 55 cm
- Weight: 28 kg
Advantages at a glance:
- No power supply required - particularly energy-efficient
- Drinking opening protected against frost and dirt by ball
- Very well insulated housing - ideal for cold regions
- Perfect forBulls and suckler cows suitable
- Robust plastic float valve - low-maintenance & reliable

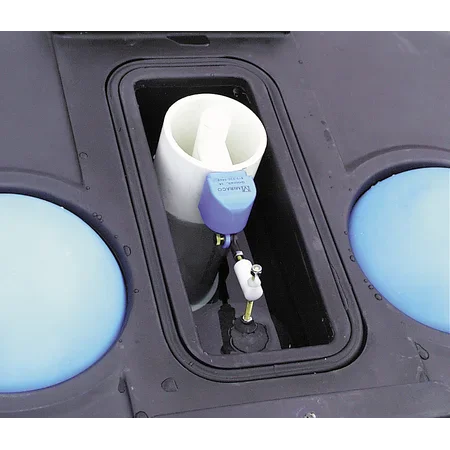

- Simple float adjustment via inspection flap
- Large drain opening and drain plug for quick cleaning
Installation recommendation:
The ball trough should be attached to a slightly raised concrete slab approx. 15 cm thick. This should be at least 30 cm larger on all sides than the drinking trough itself. The water supply pipe mustlaid frost-free become.
