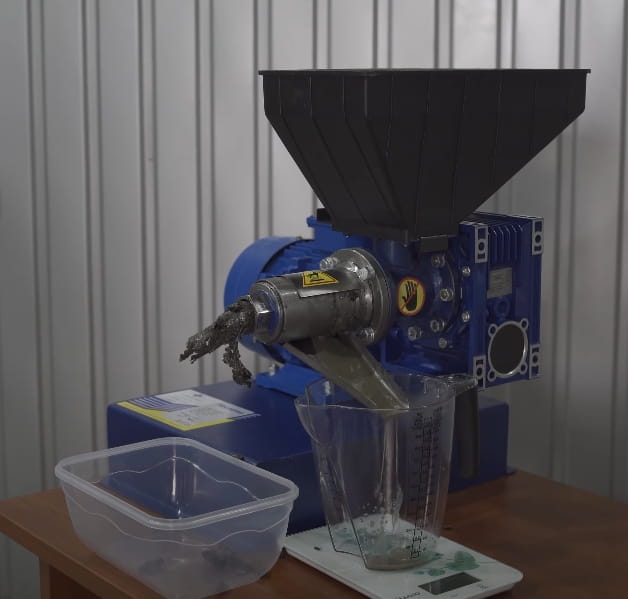

Oil press screw press with SHI certificate up to 6 l/h – cold pressing, stainless steel, 1.5 kW motor
€1,790.00
Available, delivery time: 1-2 weeks
Description
Oil press screw press with SHI certificate up to 6 l/h – cold pressing, stainless steel, 1.5 kW motor
Oil press / screw press - up to 6 l/h - cold pressing process, stainless steel, compact & efficient
This high-qualityOil press in cold pressing process is the ideal solution for anyone who wants to obtain natural, gently produced vegetable oil. The machine is characterised by its compact design, a high output of up to6 litres per hour and the complete contact of all working parts with stainless steel - for maximum food safety.
Health-safe thanks to stainless steel & PZH certification
All components that come into contact with seed or oil are made of high-quality stainless steel. The oil press is completely food-safe, which is confirmed by an officialPZH certificate is confirmed. This means that it is safe to use for both private and commercial applications.
Efficient and gentle oil extraction process
The machine presses the oil cold so that valuable vitamins, unsaturated fatty acids and bioactive ingredients are preserved. The result is high-quality, naturally pure oil with a pleasant flavour and a long shelf life. The press cake can also be used as protein-rich feed for farm animals.
Functionality
- Filling the raw material into the hopper
- Transport via the working auger
- Pressing in stainless steel cylinder with openings
- Oil escapes through the cylinder openings and is drained off
- Press cake is ejected automatically
Advantages of the oil press
- Up to 6 litres of oil per hour
- Stainless steel contact - high hygiene, no flavour or colour transfer
- Ideal for numerous seeds such as rapeseed, milk thistle, linseed, sunflower, hemp, pumpkin and many more.
- Cold pressing process for the highest quality
- Simple operation & easy cleaning
- Durable & robust construction
- Low energy consumption
- With frequency inverter for soft start & speed control
Advantages of the frequency inverter
- Soft start - protects motor & mechanics
- Speed control can be optimally adjusted depending on the seed
- Overload protection & monitoring of motor load
- Reduced energy consumption at partial load
- Increased service life of the motor
Technical data - Oil press
| Performance | up to 6 l/h |
| Engine power | 1.5 kW |
| Tension | 230 V |
| Dimensions (L×W×H) | 530 × 410 × 470 mm |
| Weight | 29-30 kg |
| Kind | Screw press / cold press |
| Drive | Electric |
Recommended seeds and oil yields
| Seed type | Oil content | Moisture | Seed quantity per litre of oil |
|---|---|---|---|
| Black cumin | 32-40% | 3-5% | 2.9-3.8 kg |
| Pumpkin | 35-48% | 5-7% | 2.38-3.5 kg |
| Camellia | 40-50% | 5-7% | 2.3-2.95 kg |
| Hemp | 35-45% | 5-7% | 2.5-3.5 kg |
| Safflower | 30-40% | 4-6% | 2.95-4.2 kg |
| Flax | 38-44% | 4-6% | 2.65-3.2 kg |
| Almond | 45-55% | 4-6% | 2-2.6 kg |
| Hazelnut | 55-60% | 4-6% | 1.85-2.05 kg |
| Walnut | 45-64% | 4-6% | 1.72-2.56 kg |
| Peanut | 40-50% | 5-7% | 2.3-2.95 kg |
| Milk thistle | 20-30% | 5-7% | 4.2-7 kg |
| Rapeseed | 38-47% | 6-8% | 2.45-3.15 kg |
| Sunflower | 40-50% | 4-6% | 2.3-2.95 kg |
| Soya | 18-24% | 10% | 5.5-8.4 kg |
| Evening primrose | 20-30% | 4-6% | 4.2-7.2 kg |
| Grated coconut | 50-60% | 3-5% | 1.9-2.3 kg |
Areas of application
Ideal for farms, direct marketers, oil mills, manufacturers, natural food producers and all those who want to produce high-quality edible oils from their own production.
