Metal circular saw machine - Super set offer
€3,000.00
Prices exclude VAT.
Free shipping
Available, delivery time: 3-5 Tage
Product number:
BLE78021
Description

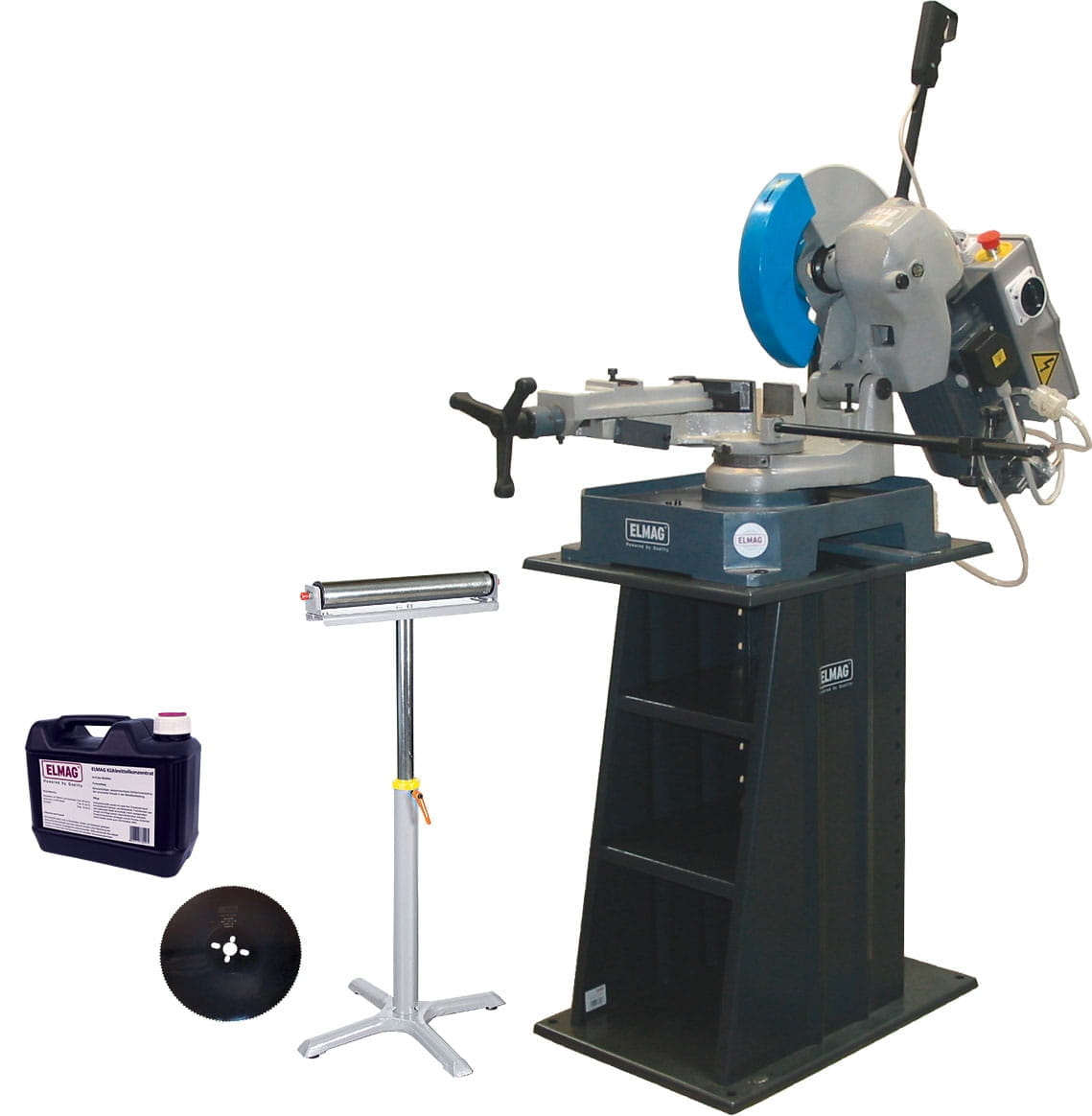

Metal circular saw machine - Super set offer
- consisting of 1 piece each:
- Metal circular sawing machine MKS 300 RLSS-N
- Item no. 78026
- Universal base suitable f. MKS 300 art. no. 78096
- Material stand for MKS
- Support height 68-114 cm (max. 100kg)
- Item no. 78892
- Saw blade HSS/DMo5 300x2.5x32mm, T5/180 teeth
- Item no. 78213
- Coolant concentrate 5 litres
- milky, can be diluted 1:10
- Item no. 78090
- High accuracy for series cutting - with bar stop and material stop

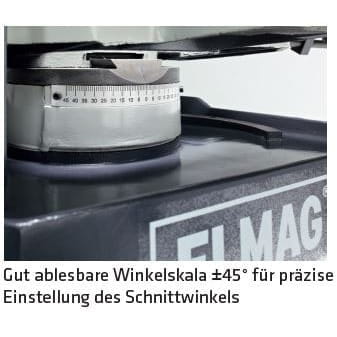

- Quick mitre adjustment with a lever handle - with quick-release angle clamp and 45-0-45° angle scale
- Flexible mitre adjustment - gear head and/or vice can be swivelled
- Cutting depth can be precisely limited - with cutting depth stop
- Powerful - two-stage drive motor 40/80 rpm
- Smooth-running and durable - quality gearbox with oil bath for permanent lubrication

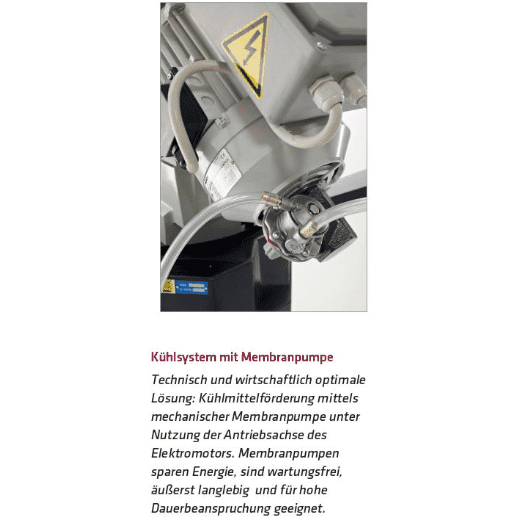

- Optimum cooling - coolant circulation system with diaphragm pump, dosing valve and return filter

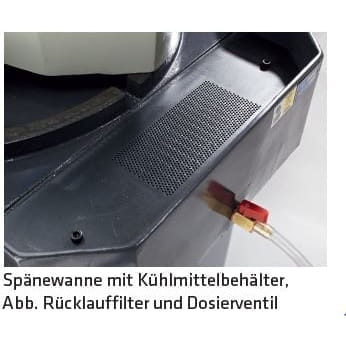

- Compact - coolant tank integrated in chip tray
- Stable cutting guide - with ERGO operating lever
- Safe - self-closing saw blade protection, permanent switch, emergency stop, zero-voltage release, CE-compliant
| Width (mm): | 1,000 |
| Speed level 1/2 (rpm): | 40/80 |
| Inlet roller conveyor height (mm): | 1,010 |
| Weight (kg): | 98 |
| Height (mm): | 1,150 |
| Length (mm): | 1,475 |
| Motor power Speed level 1 / 2 (W): | 1,100/1,500 |
| Mains connection: | 400/50-60 V/Hz |
| Rectangular tube cutting range at 0°: | max. 100x70 mm |
| Rectangular tube cutting area with 45° right-angled mitre: | max. 80x70 mm |
| Cutting range round tube 0° (mm): | max, 80 |
| Cutting range round tube 45° right-hand mitre (mm): | max, 80 |
| ø outside band saw blade (mm): | 300 |
| ø inside saw blade (mm): | 32 |
| Cutting angle (°): | 45-0-45 |
| Clamping width vice max. (mm): | 105 |
| Cutting range square tube 0° (mm): | max, 80 |
| Cutting range square tube 45° right-hand mitre (mm): | max, 70 |
