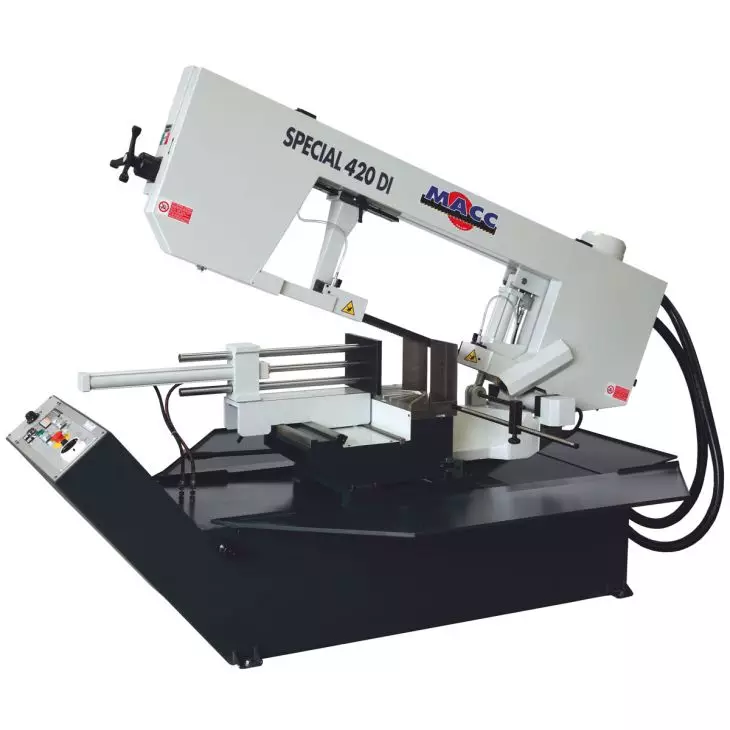

MACC SPECIAL 420 DI metal bandsawing machine - Powerful double mitre bandsaw with Elmag Start-Up Service

TheMACC SPECIAL 420 DI metal bandsawing machine is aSemi-automatic high-performance double mitre bandsawdeveloped for professional use in industry, mechanical engineering, structural and civil engineering as well as in pipework and boiler construction. With aCutting range up to 400 mm round tube and theirprecise hydraulic control it offers maximum performance, reliability and ease of use. Thanks to theElmag Start-Up Service the machine is professionally commissioned - including functional testing, instruction and optimised settings for immediate production use.

DI band saws - true size for maximum performance

TheMACC 420 DI belongs to the class ofDI band sawsspecially designed for thePrecise cutting to length of large workpieces were developed. Their robust design, thePowerful band saw blade drive with 2,200/1,600 W and theInfinitely adjustable cutting speed make them the ideal solution for theContinuous operation in workshops and production plants. The saw frame can be swivelled on both sides and enables mitre cuts of60° left to 60° right - precise, fast and efficient.

Advantages of the MACC SPECIAL 420 DI

• ✔Elmag Start-Up Service - Professional commissioning and instruction by specialised technicians
• ✔Semi-automatic cutting cycle - Fully hydraulically controlled from clamping to unclamping
• ✔Mitre on both sides 60°-0°-60° - Digitally adjustable via angle display
• ✔Infinitely adjustable cutting speed (19-62 m/min) for all materials
• ✔Cutting pressure control (SDS) - Customised adaptation to material and wall thickness
• ✔Hydraulic quick clamping (SSH) andQuick-action vice (SSS) for efficient working
• ✔Solid saw frame with tapered roller bearings for maximum stability and smooth running
• ✔Cooling system with electric pump for optimum cut cooling and longer belt service life
• ✔Digital cutting angle display (SWA) - Precise and easy to read
• ✔SBÜ Saw blade monitoring With limit switch for maximum safety
• ✔Plug & Play equipment with oil filling and bimetal cobalt band saw blade

Standard equipment

• Semi-automatic hydraulic control (H-Auto H)
• Cutting pressure control with regulator (SDS)
• Hydraulic quick clamping (SSH)
• Quick-action vice (SSS)
• Vice clamping left/right selectable
• Digital cutting angle display (SWA)
• Cooling system with electric pump, dosing valve & return filter
• Saw blade monitoring (SBÜ) with limit switch
• Adjustable front saw blade guide
• Adjustable tensioning bearing front and rear
• Chip scraper & chip brush
• Saw blade guard with limit switch
• Sheet steel base with chip tray
• Bimetal Cobalt band saw blade
• Tools, operating instructions, CE conformity

Semi-automatic cutting cycle

1. Cycle start via start button
2. Hydraulic material fixing
3. Saw blade drive activated
4. Saw frame lowers automatically
5. Automatic resetting of the saw frame
6. Saw blade drive stops
7. Workpiece clamping releases automatically

Areas of application

TheMACC 420 DI is the perfect choice for:

• Metal construction & mechanical engineering
• Pipeline construction & plant engineering
• Boiler & heat exchanger construction
• Building construction and civil engineering
• Series production & workshop operation

Technical data - MACC SPECIAL 420 DI

Conclusion

TheMACC SPECIAL 420 DI is aPowerful, precise and durable double mitre bandsaw for continuous industrial use. In combination with theElmag Start-Up Service it is immediately ready for operation and guarantees the highest cutting quality from day one. An investment in quality, safety and maximum productivity -Made for Professionals.

MACC SPECIAL 420 DI - The premium double mitre bandsaw with Elmag Start-Up Service for maximum efficiency and precision.
