Log splitter 22T - 400V

Description

Log splitter 22T - 400V

  • A hydraulic splitter with a pressure of 22 tonnes, ideal for splitting tree trunks and stumps with a diameter of up to 35 cm and a maximum length of 110 cm.

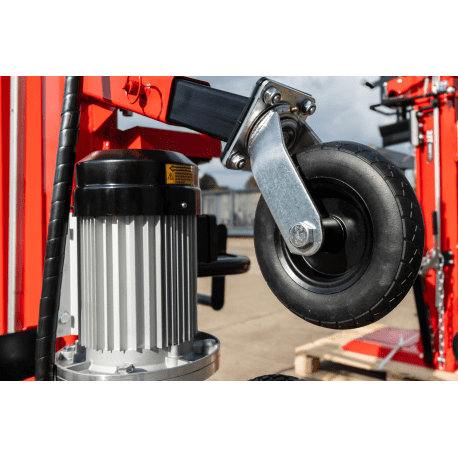

  • The device is driven by a three-phase electric motor with an output of 5.1 kW.
  • Electric motor 400V 50Hz 5.1kW
    Maximum force 22 tonnes
    Maximum trunk diameter 35cm
    Maximum log length 110cm
    Stroke 95
    Forward speed 10.5 cm/s
    Working speed 4.3 cm/s
    Return speed 7.5 cm/s
    Hydraulic oil 24l
    Hydraulic weight 310kg
