Linhai ATV 420 Promax – Powerful 400cc ATV | 2WD/4WD | Off-road & Work Copy
€4,193.28
Description
Linhai ATV 420 Promax – Powerful 400cc ATV | 2WD/4WD | Off-road & Work Copy
Linhai ATV 420 PROMAX - Versatility for the highest demands
TheLinhai ATV 420 PROMAX is a real all-rounder and has been specially developed for riders who want to combine performance, flexibility and reliability in one vehicle. With its powerful 400 cc engine, efficient EFI system and selectable all-wheel drive, this ATV can master even the most demanding terrain with ease.
Thanks to the robust suspension, high ground clearance and compact dimensions, the 420 PROMAX always remains stable, controllable and comfortable - whether on forest tracks, fields or in everyday working life.
Perfect for work, leisure & off-road
- High pulling power thanks to 400 cc engine
- Optimum traction thanks to 2WD/4WD system
- Ideal for forestry, agriculture, hunting & off-road use
- Compact, yet powerful design
Optional accessories

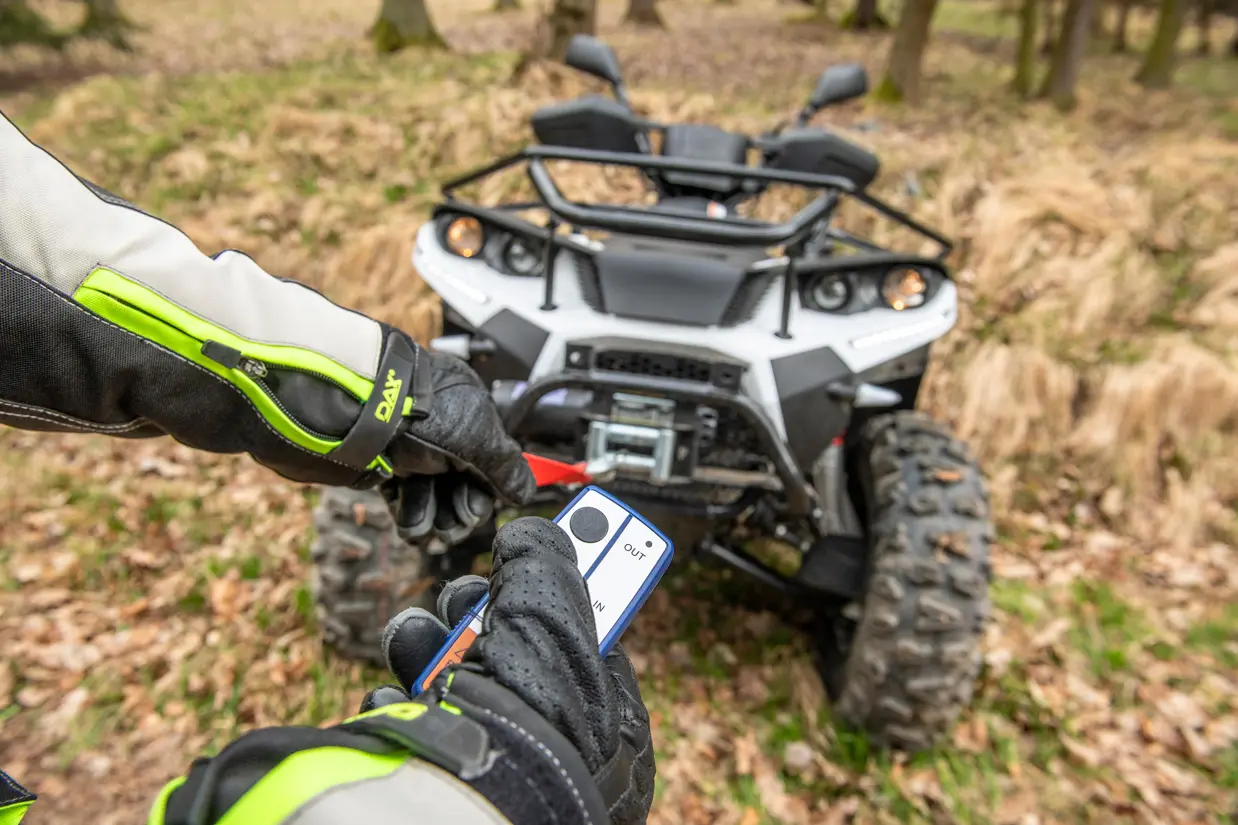

- Cable winch
- Heated handles
- Backrest
- Trailer coupling
- Cover
Technical data - Linhai ATV 420 Promax
Motorisation
- Model: LH180MN
- Motor type: Single-cylinder, 4-stroke, water-cooled
- cubic capacity: 352 cm³
- Bore x stroke: 80 x 70 mm
- Rated power: 19 kW / 6500-7000 rpm
- Performance: 25.8 HP
- Max. Torque: 27 Nm / 5500 rpm
- fuel system: EFI (fuel injection)
- Maximum speed: 60 km/h
- Gearbox: H-L-N-R
- Start system: Electric starter
- drive system: 2WD / 4WD
Dimensions & weight
- Size (LxWxH): 2120 x 1140 x 1270 mm
- Wheelbase: 1280 mm
- Ground clearance: 253 mm
- Own weight: 315 kg
- Tank volume: 14 L
Tyres & Chassis
- Front tyres: AT24x8-12
- Rear tyres: AT24x10-10
- Front brakes: Hydraulic disc
- Rear brakes: Hydraulic disc
- Front suspension: McPherson independent suspension
- Rear suspension: Double A-arm independent suspension
Authorisation
- CE / T3a / T3b
