LED headlights with front/rear (right) turn signals and daytime running lights - 100W
€119.90
Free shipping
Available, delivery time: 1-3 days
Description
LED headlights with front/rear (right) turn signals and daytime running lights - 100W
100-watt LED headlights with front and rear indicators (right) and daytime running lights, 5600 lumens
General properties
- Housing: Powder-coated aluminium
- 60 W high beam
- 30 W Low beam
- 10 W Daytime running light
- 10W display
- 9/32 V
- 50,000 hours
- E-mark certified
- IP68
- Approved according to ECE R10, ECE R149, ECE R112, ECE R148, ECE R7
- EMC - CISPR25 Class 4 (high frequency suppression)
- Supplied with 6-pin Deutsch socket and plug
- Dimensions 229 x 152 x 106 mm
Photometric properties
- Light colour: Cold white
- Colour temperature: 6000K
Electrical properties
- Rated wattage of the lamp: 100 watts
- 60 W high-intensity CREE XTE LEDs
- Suitable for 9-32V DC
- 5,600 lumen
- Lux value: 50 m at 12 lux
- Lux value: 186 m at 1 lux
- Vibration test up to 15G

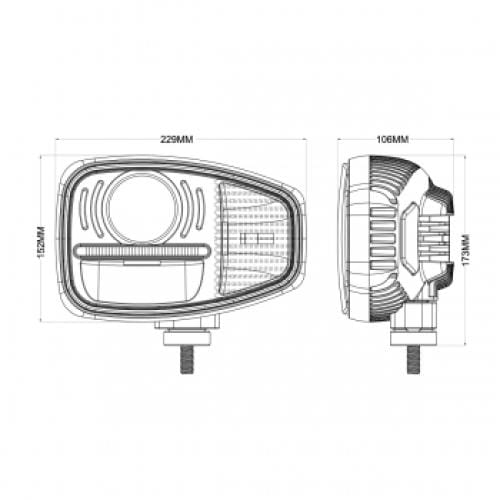

Dimensions
- Lamp width: 229 mm
- Lamp height: 152 mm
- Lamp thickness: 106 mm
OEM reference:
JCB 700/50192,JCB 700/50193
Hella 1EE 996 174-401,1SA996120107,1EE996174201
AEBI (12671021),AEBI (12683795),HELLA (Combi220),MAFI (0005800148),MAN (81251016403)
MAN (81.25101.6403FF),MAN (81251016792),MAN (81AC1258117),MANITOU (929717),PAUS (556625)
SCANIA (20223061), VOLVO (17 286 451), Faresin (ME11096A40)
COMPATIBLE WITH THE FOLLOWING:
Manitou
MLT625, MLT627, MLT629, MT1030, MT1135, MT1235, MT1335, MT1435, MT1440
MT1840, MT625, MT732, MT835, MT928, MT932, MT940, MTX625, MTX731, MTX732
JCB
526-56, 527-58, 531-70, 533-105, 533-140, 535-95 (loader), 536-60, 540-140, 540-170, 540-200,
550-140 , 550-80 , FASTRAC 2115 , FASTRAC 2170 , FASTRAC 3200 , FASTRAC 3230 , FASTRAC 7170 ,
FASTRAC 7200, FASTRAC 7230, FASTRAC 7270, FASTRAC 8250, FASTRAC 8280, FASTRAC 8310
Circuit diagram forCaterpillar, Volvo, Terex.
Black is mass,
White is daytime running light,
Blue is indicator,
Brown is low beam
Red is high beam.
