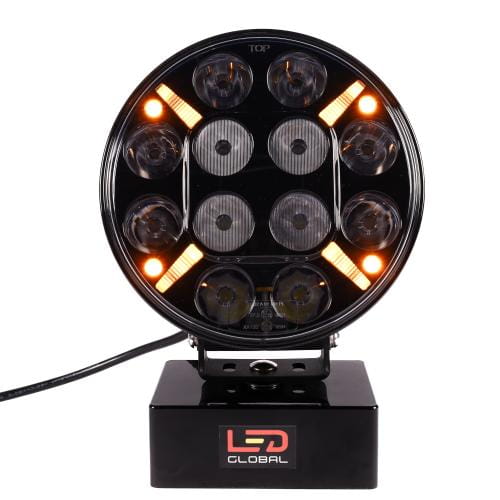

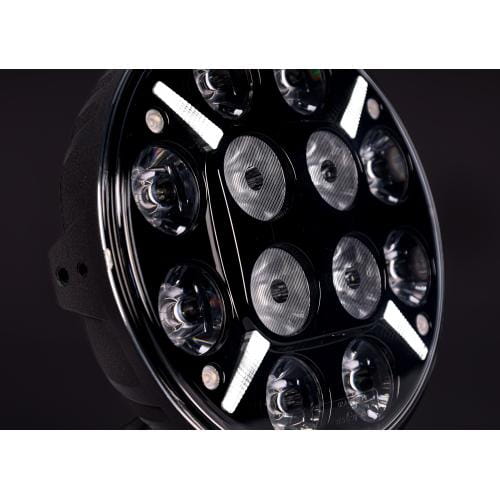

LED driving light with two-color position indicator and amber warning flash - 120 watts

In addition to a wide and long light pattern with the high beam of the TIR reflectors at 480 metres at 1 lux, it also has a selectable position light (white or orange), stable mounting and electronic temperature optimisation.
The built-in flashing warning lights also have an ECE R65-approved flashing light. This warning light consists of four powerful LEDs that can be set in five different flashing patterns.

Specifications:

• Five different warning light patterns, one of which is ECE R65-approved. Can be synchronised with each other.
• E-approved (E8, Ref. 37.5), ECE R112 / R10 / R7 (white position light)
• EMC-protected (does not interfere with the radio)
• With position light (4 LEDs), amber-orange or xenon white (connect desired colour)
• High beam light image with range: 960 m (0.25 lux), 480 m (1 lux)
• Spot beam light pattern with range: 1148 m (0.25 lux), 574 m (1 lux)
• 12000 lumens (theoretical), 9600 lumens (actual)
• Cool white light (6500 K)
• TIR optical system (Total Inner Reflection)
• Pressure equalisation diaphragm
• 36 months warranty

Technical data:

• 120 W (12 x 10 W Cree XM-L2 LED)
• 4 LEDs for flash light
• Nominal power 92.4 W
• IP68 (waterproof/dustproof)
• 6-pin DT connection (2-pin adapter included in the scope of delivery)
• Electronic thermal management
• Voltage 9-36 V
• Load 7.7 A @ 12 V and 3.6 A @ 24 V

Dimensions & weight:

• Width: 218 mm
• Height: 234.5 mm (incl. bracket)
• Depth: 68.5 mm
• Weight: 1.9 kg
• Cable length: 650 mm

Installation instructions for cables (detailed instructions are enclosed with the product):

• Red: additional light (+)
• Black: Auxiliary light/position light (- ground)
• Grey: Position light (+) white light
• Yellow: Position light (+) orange light
• Green: Flash (+)
• Blue: Strobe light switch for pattern/synchronisation
• Flash pattern synchronisation: Connect the blue cables of two or more auxiliary spotlights and then briefly connect them to the positive pole for 3 seconds to reset the flash frequency of all connected spotlights, after which all flash patterns are shifted.
