iboXX Energy Wall IEW512 – 5.12 kWh LiFePO4 energy storage unit 51.2 V, modularly expandable
€2,490.00
Prices exclude VAT.
Free shipping
Available, delivery time: 2-5 days
Product number:
SW16941
Description
iboXX Energy Wall IEW512 – 5.12 kWh LiFePO4 energy storage unit 51.2 V, modularly expandable
iboXX Energy Wall IEW512 - 5.12 kWh LiFePO4 power storage (51.2 V)
TheiboXX Energy Wall IEW512 is a compact, wall-mountable power storage unit for photovoltaic, wind power and hybrid systems. Thanks to safe LiFePO4 technology, an integrated battery management system and modular expandability the system is ideal for optimising self-consumption and as a future-proof energy solution.
Compact wall solution with modular expandability
- Storage capacity: 5.12 kWh
- Modularly expandable up to a maximum of 71.68 kWh

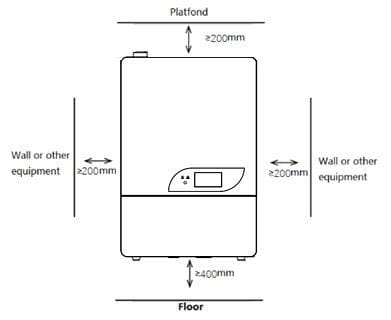

- Space-saving wall mounting
- Wall bracket included in the scope of delivery
Safe LiFePO4 battery technology
- Lithium iron phosphate technology (LiFePO4)
- High thermal stability and maximum operational reliability
- Long service life and high cycle stability
- Integrated deep discharge protection
Integrated battery management system (BMS)
- Monitoring of cell voltage, state of charge and temperature
- Protection against overcharging, deep discharge and overtemperature
- Optimised charging and discharging processes
Monitoring & communication
- Integrated display for local status indication
- Cloud monitoring via WLAN
- Communication via RS485 (Modbus RTU)
- CAN bus interface
High compatibility
- Compatible with many inverter manufacturers
- Suitable for solar, photovoltaic and wind power systems
- Ideal for optimising self-consumption
Areas of application
- Photovoltaic and hybrid systems
- Wind turbines
- Balcony power plants with storage solution
- Grid-connected and off-grid energy systems
Technical data
- Model: iboXX Energy Wall IEW512
- Storage capacity: 5.12 kWh
- Energy content: 5,120 Wh
- Nominal voltage: 51.2 V
- Capacity: 100 Ah
- Battery technology: Lithium (LiFePO4)
- Application: Solar / wind power
- Recommended charging current: approx. 10 % of the nominal capacity
- Recommended charging technology: LiFePO4 characteristic curve
- Length: 455 mm
- Width: 190 mm
- Height: 700 mm
