Fliegl Mischmeister Garant SS PTO - 1000L

The Fliegl mixing master "Garant 1002 SS" is a concrete mixer of the absolute top class and impresses with its and impresses with its enormous performance, outstanding stability and maximum durability. With an impressive volume of 1000 litres and a mixing capacity of approx. 15 m³/h, it is ideal for professional ideal for professional construction companies, farms and municipal applications with high material throughputs. high material throughputs.

Thanks to Fliegl's many years of expertise in the mixer segment, the Garant 1002 SS has been designed to withstand even extreme loads. The star-shaped reinforced reinforced tank base, the mixing element bearing protected against soiling and the robust agitator technology made of highly wear-resistant steel ensure perfect, uniform mixing results mixing results - even with heavy materials.

High-quality equipment for precise and efficient mixing processes

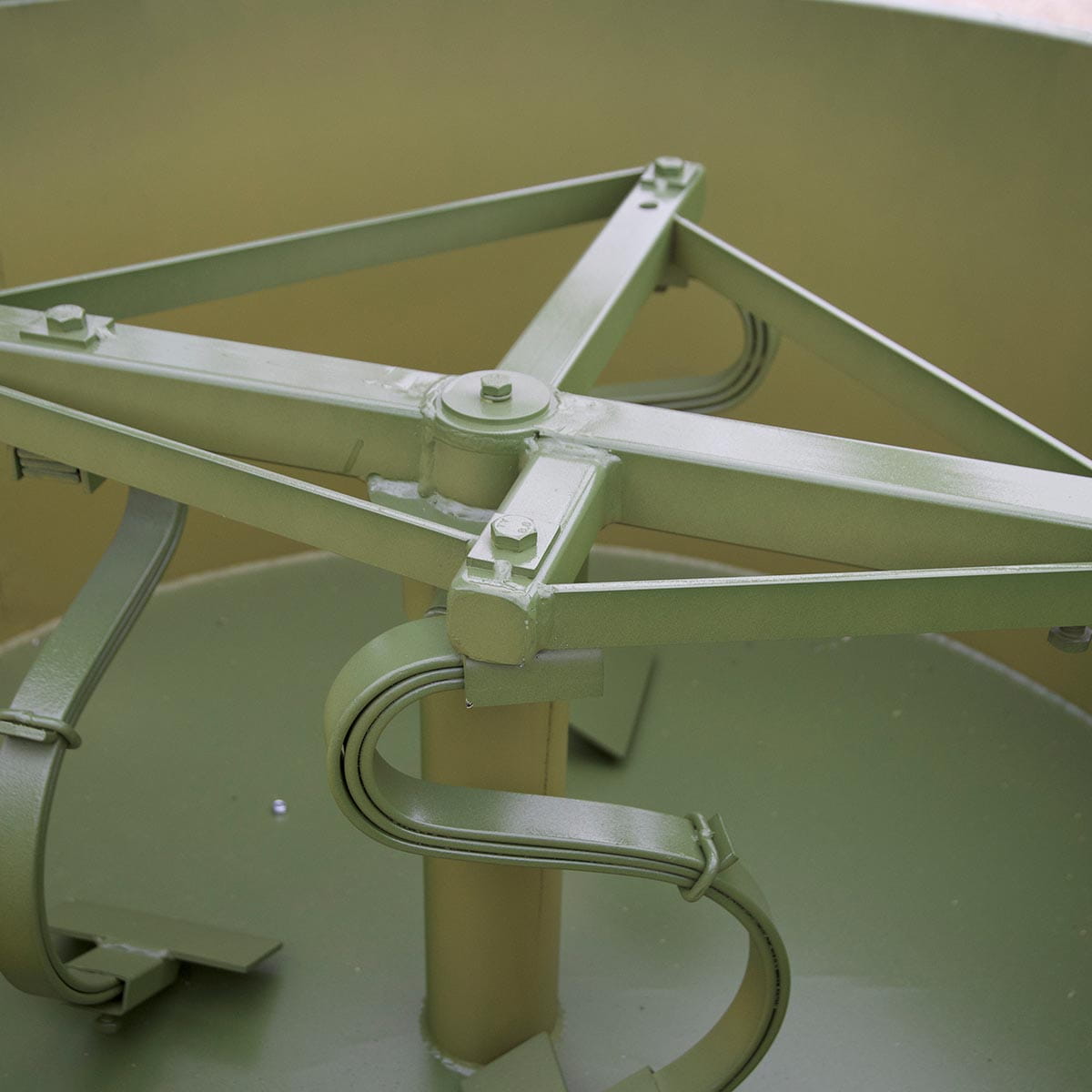

The agitator has 3 bearings and can be optimally adapted to any material consistency thanks to strong, angle-adjustable 3-blade springs. can be optimally adapted to any material consistency. The adjustable side wall scraper prevents material build-up and ensures that the mixing quality remains constant. remains constant.

Convenient operation & maximum safety

• Extra heavy, lockable protective grille for maximum safety
• Removable discharge chute for flexible emptying
• Smooth-running, tight outlet slide for clean working
• Integrated water supply in the protective grille for precise dosing

Technical highlights at a glance

• Volume: 1000 litres
• Mixing capacity: approx. 15 m³/h
• Power requirement: at least 120 hp
• Filling diameter: 1800 mm
• Own weight: 750 kg
• Three-point hitch cat. 2 (3-way adjustable)

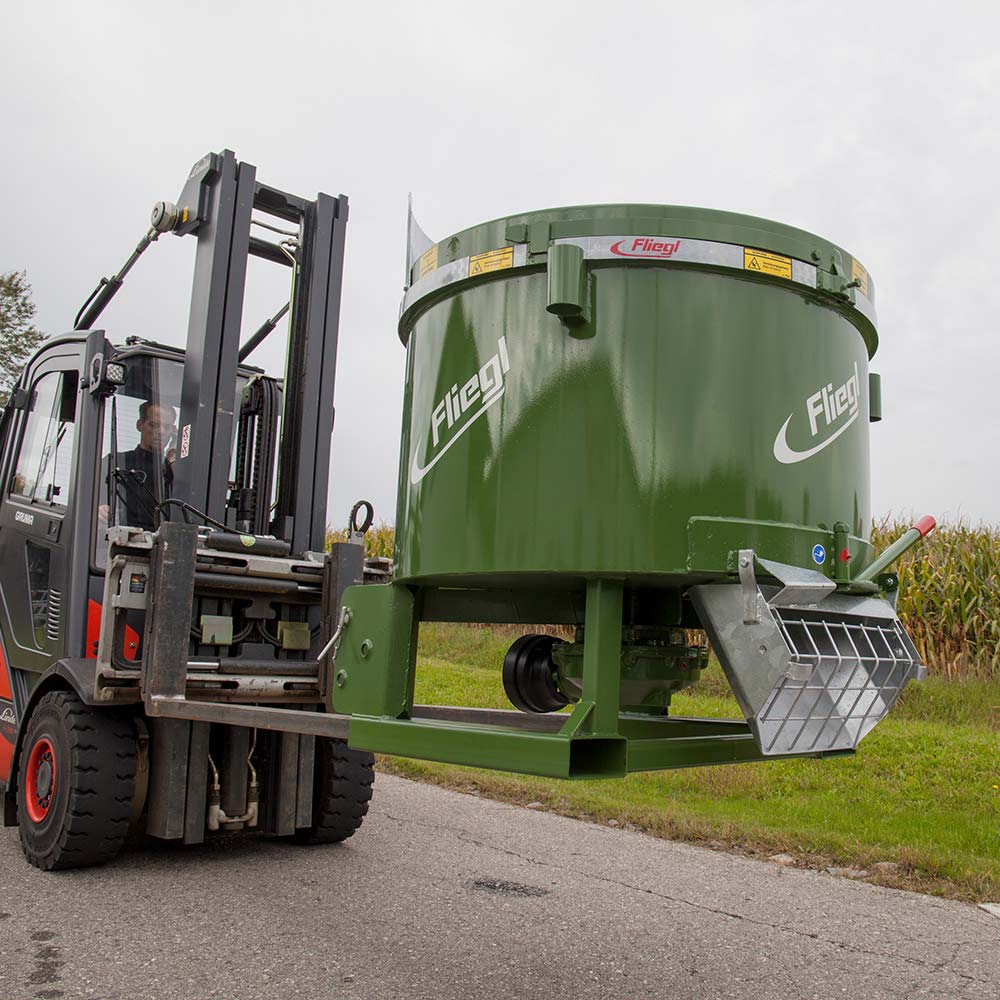

• Internal forklift holder: 190 × 60 mm
• 2-stage gearbox (ratio 11:1)
• PTO shaft with overload protection included
• Agitator with 3 bearings - smooth, powerful operation
• Primed & high-quality 2K coating for maximum durability

The Fliegl mixing master "Garant 1002 SS" is the perfect choice for users who require an exceptionally powerful, robust and durable mixing solution. Whether in the professional construction industry or in agricultural operations - this concrete mixer reliably delivers first-class results and sets new standards in its class.
