Fliegl livestock transport trailer tandem - TTW 140
Description
Fliegl livestock transport trailer tandem - TTW 140
Fliegl livestock transport trailer TTW 140 - Tandem chassis for safe animal transport
TheFliegl TTW 140 is a robust and reliable Livestock transport trailerspecially designed for professional use in in agriculture. With itsTandem chassishigh load capacity and practical equipment, it offers the best conditions for the safe and comfortable transport of cattle, pigs and other livestock. transport of cattle, pigs and other livestock.

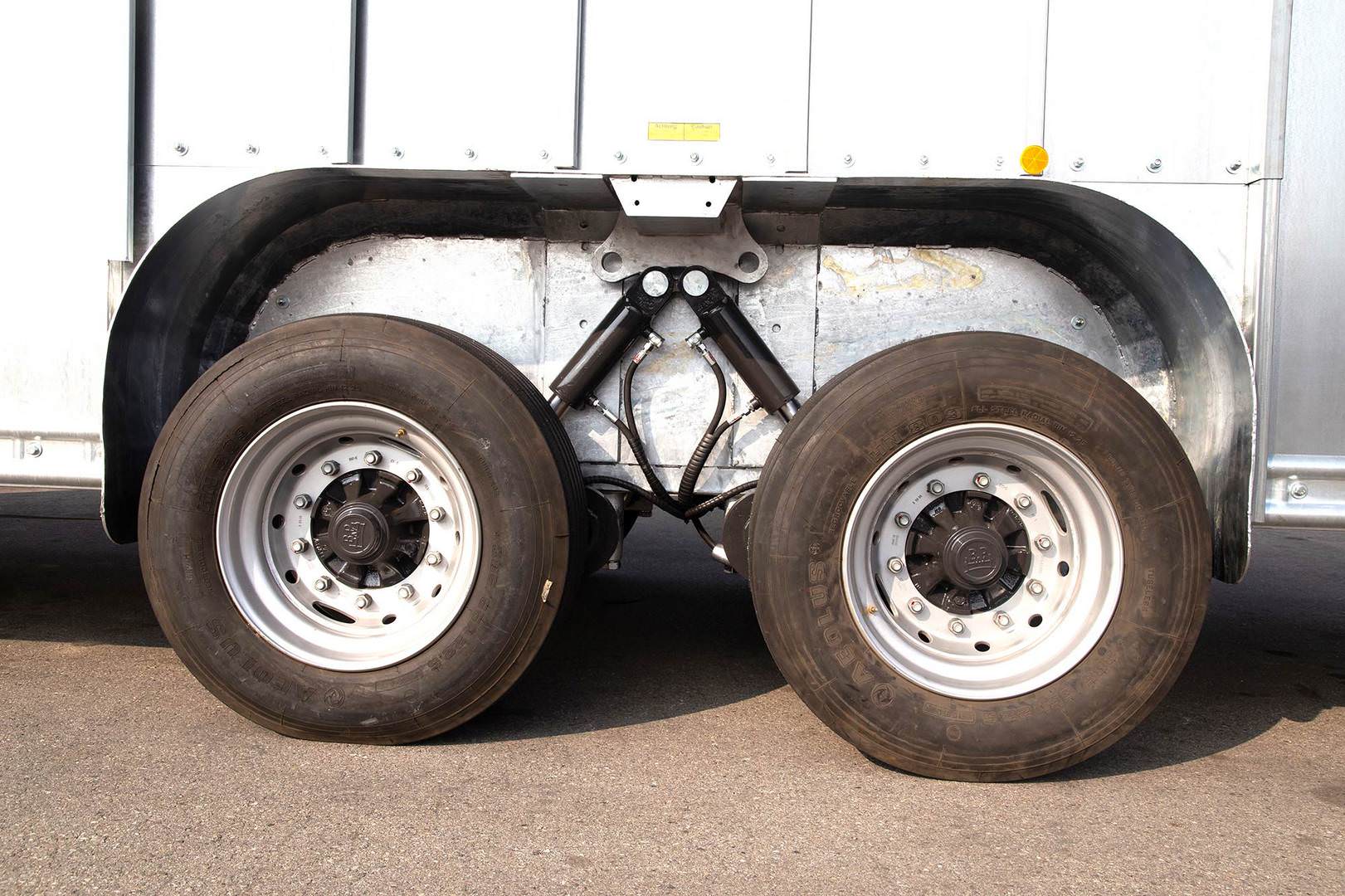

Thanks to its hydraulically lowerable axle, the trailer makes it easy to load and unload the animals. of the animals. TheChequer plate floor with integrated drainage opening ensures hygiene and easy cleaning. With its EC type approval and COC papers, the TTW 140 is road-legal and offers maximum flexibility in everyday use.
Your advantages at a glance
- High payload: Permissible total weight of 14,000 kg, drawbar load 2,000 kg.
- Comfortable: Hydraulically lowerable axle for easy loading.
- Safe: Non-slip chequer plate base with drainage opening.

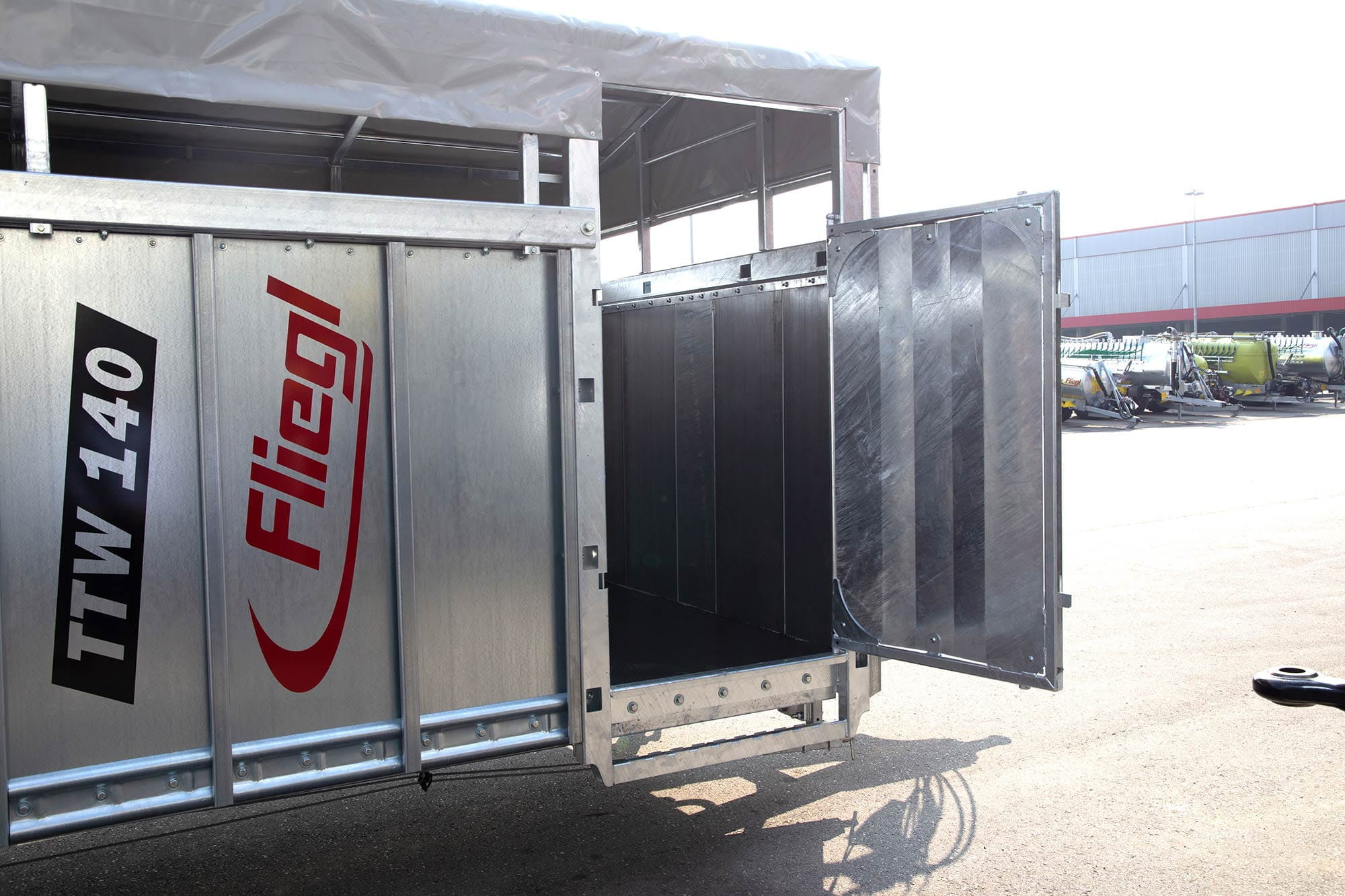

- Practical: Front access door on the right for additional access.
- Authorised: 30 km/h version with EC type approval and COC papers.
- Robust: Impact-resistant 5-chamber lights with 7-pin plug.
Typical areas of application
- Transport of cattle
- Transport of pigs
- General livestock transport
- Agricultural yard and road transport
Technical data - Fliegl TTW 140
| Chassis | Tandem |
| Permissible total weight | 14,000 kg |
| Drawbar load | 2,000 kg |
| Drawbar | Rigid, bottom hitch |
| Axles | Hydraulically lowerable, unsprung |
| Access | Front right door |
| Bridge dimensions | approx. 8300 × 2200 × 1500 mm |
| Floor | Chequer plate with drainage opening |
| Drawbar eye | DIN 40 mm |
| Brake | 2-circuit compressed air with manual control |
| Tyres | 385/55 R22.5 NEW, load capacity per wheel 4500 kg at 80 km/h |
| Authorisation | 30 km/h, EC type approval & COC papers, incl. side marker lights |
| Support | Mechanical support foot |
| Lighting | 2 five-chamber lights 12 V, 7-pin, impact-resistant glass |
All data according to manufacturer Fliegl. We reserve the right to make changes and further technical developments.
Properties
| Traction device: | Bottom hitch towing eye 40mm |
|---|---|
| brake: | compressed air hand regulator |
| speed: | 25 km/h |
