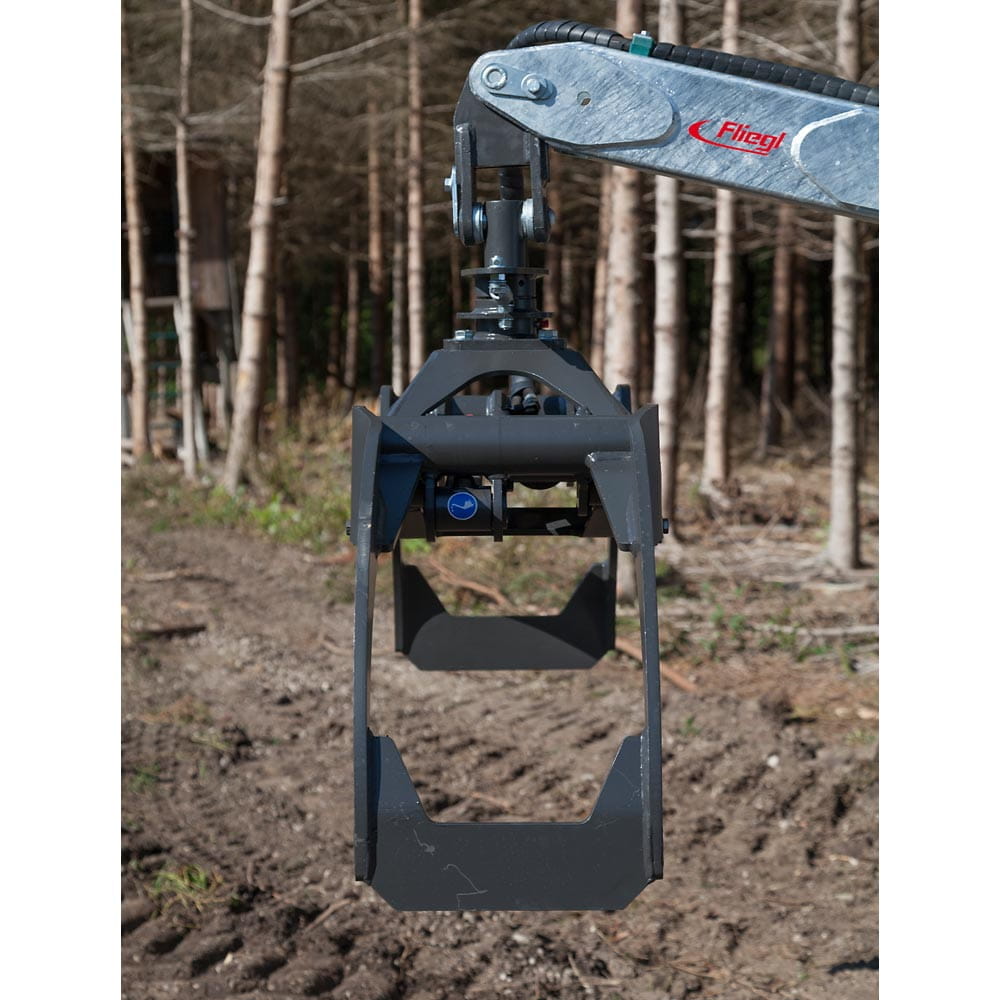

Fliegl hydraulic log grapple with Euronorm and three-point linkage Cat. II – 10t closing force
€2,350.00
Free shipping
Available, delivery time: 2-5 days
Description
Fliegl hydraulic log grapple with Euronorm and three-point linkage Cat. II – 10t closing force
Fliegl hydraulic forwarding tongs with Euronorm and three-point linkage Cat. II - Powerful, flexible and durable
TheFliegl hydraulic forwarder tongs is the perfect tool for professional use in theForestry, agriculture and timber transport. Thanks to the robust construction made ofHigh-strength HB 400 steel it is extremely resistant and guarantees a long service life - even under the toughest conditions. With its hydraulic control system, theEuro standardisation and theThree-point hitch Cat. II the forwarder tongs can be easily attached to tractors and front loaders and used in a variety of ways.
Easy to grip in any situation - made from HB 400 steel
Whether forStacking, loading or transporting logs - theFliegl ratchet tongs is the ideal helper for moving heavy timber safely and efficiently. Stacking and aligning logs is effortless without the need for manual labour. It is also ideally suited for working with bush chippers or as aLoading tongs.
Powerful & well thought-out design
The Fliegl forwarder tongs impress with theirSolid, painted steel construction and thedouble-acting hydraulic cylinderwhich, thanks to a special deflection, has an enormousClamping force of up to 10 tonnes generated. An integratedSerrated wreath also ensures optimum hold of the logs and prevents them from slipping. Three pivot points allow a swivelling range of 90° to the left and right, ensuring maximum flexibility on uneven terrain.
Advantages of the Fliegl hydraulic forwarder tongs
- Made from HB 400 steel - Extremely robust and durable
- Hydraulic control with enormous clamping force (approx. 10 tonnes)
- Euronorm and three-point hitch Cat. II - Maximum compatibility
- 90° swivelling range to the left and right for flexible work assignments
- Swivel joint with 0-position - Optimum stability and precision
- Solid and stable construction for the most demanding applications
- Galvanised base frame - Corrosion-resistant and weatherproof
- Including hydraulic hoses and plugs - Ready for immediate use
- Optional equipment: Polder shield for extended area of application
Hydraulic ratchet tongs - Technical details
| Feature | Value |
|---|---|
| Leg width | 400 mm |
| Material | HB 400 steel stringers |
| Opening width (min/max) | approx. 119 mm / approx. 1860 mm |
| Clamping force hydraulics | approx. 10 tonnes |
| Hydraulic cylinder | Double-acting, with deflection for high power transmission |
| Swivelling range | 90° left / 90° right (180° in total) |
| Swivel joint | With reset to 0° |
| Recording | Euronorm and three-point hitch Cat. II |
| Base frame | Galvanised, solid design |
| Colour | Painted (Fliegl red) |
| Accessories | Hydraulic hoses, connectors, optional pole shield |
Compatibility and assembly

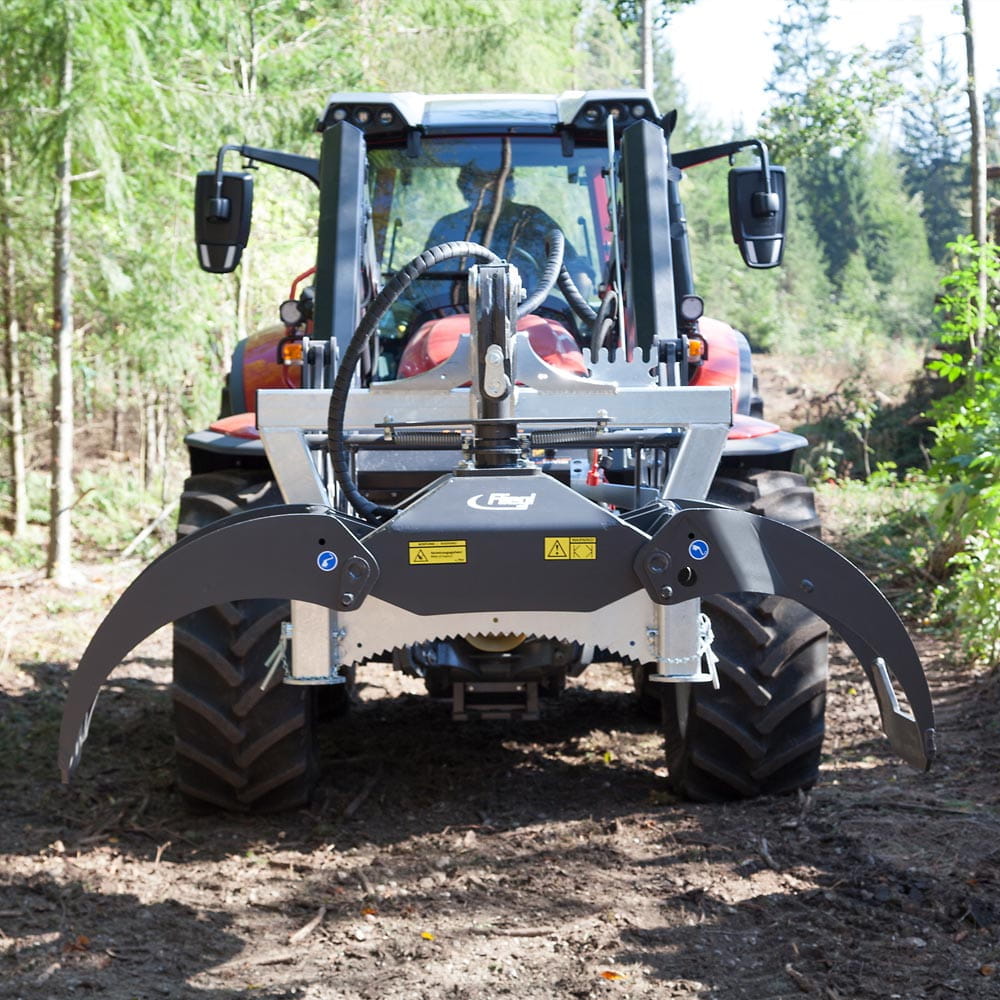

TheFliegl hydraulic forwarder tongs is equipped with acombined Euronorm mount and three-point mount Cat. II equipped. This means that it can be easilyFront loaders, tractors and tractors of different brands. Thanks to theAdjustable feet guarantees convenient coupling and uncoupling - even on uneven ground.
Areas of application
- Wood stacking and transport work in the forestry sector
- Loading trailers or timber transport vehicles
- Use asLoading tongs orBushwhacker pliers
- Maintenance and reconditioning of forest areas
- Efficient wood handling without physical effort
Conclusion
TheFliegl hydraulic forwarding tongs with Euronorm and three-point linkage Cat. II offers maximum functionality, stability and safety in daily use. With its solid construction, high closing force and flexible connection, it is the ideal tool for professional forestry and agricultural operations. An indispensable tool for anyone who prioritises quality, power and durability.
Fliegl - Quality from experience. For powerful results in every situation.
