Fliegl harrow 2700mm / 6 tine rows - CAT 2

Description

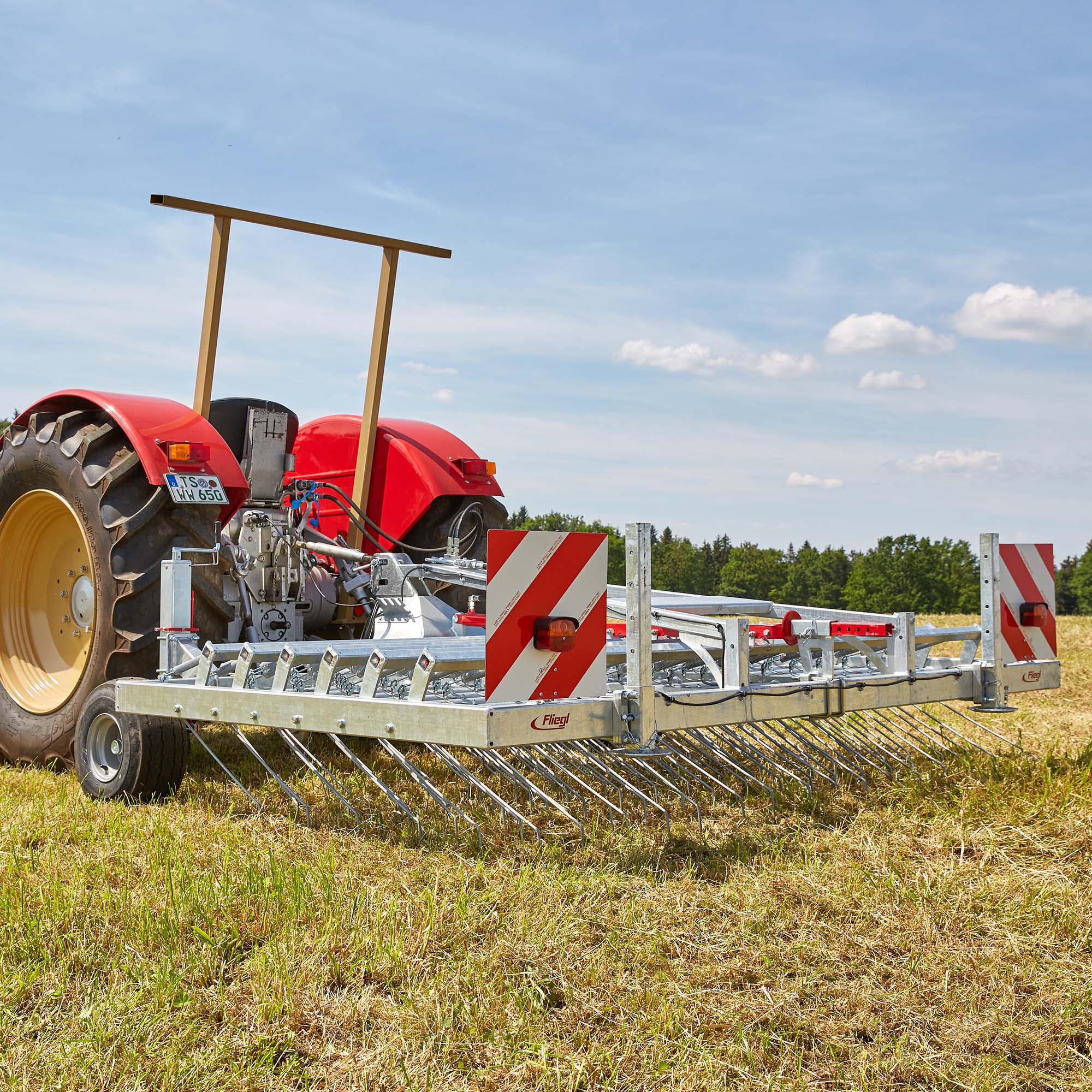

Fliegl harrow 2700mm / 6 tine rows - CAT 2

Harrow
2700 mm working width / three-point


Features:

" Working speed: 8 - 18 km/h
" Each tine is movably mounted on the frame and
Individually preloaded with a special duplex spring
" Thanks to the special duplex spring, the
Preload pressure of each individual tine on the
the entire spring travel - regardless of the
Position of the tine
" All tines are centrally adjustable with a toggle lever,
This saves an enormous amount of work and time


Technical details:

" Working width: approx. 2700 mm
" Transport width: approx. 2950 mm
" Recording: Cat. II
" With 2 sturdy wheels (ball bearings)
" 6 rows of 16 tines each
" Tine material thickness approx.: 8 mm
" Line spacing: approx. 30 mm
" Own weight: approx. 460 kg
